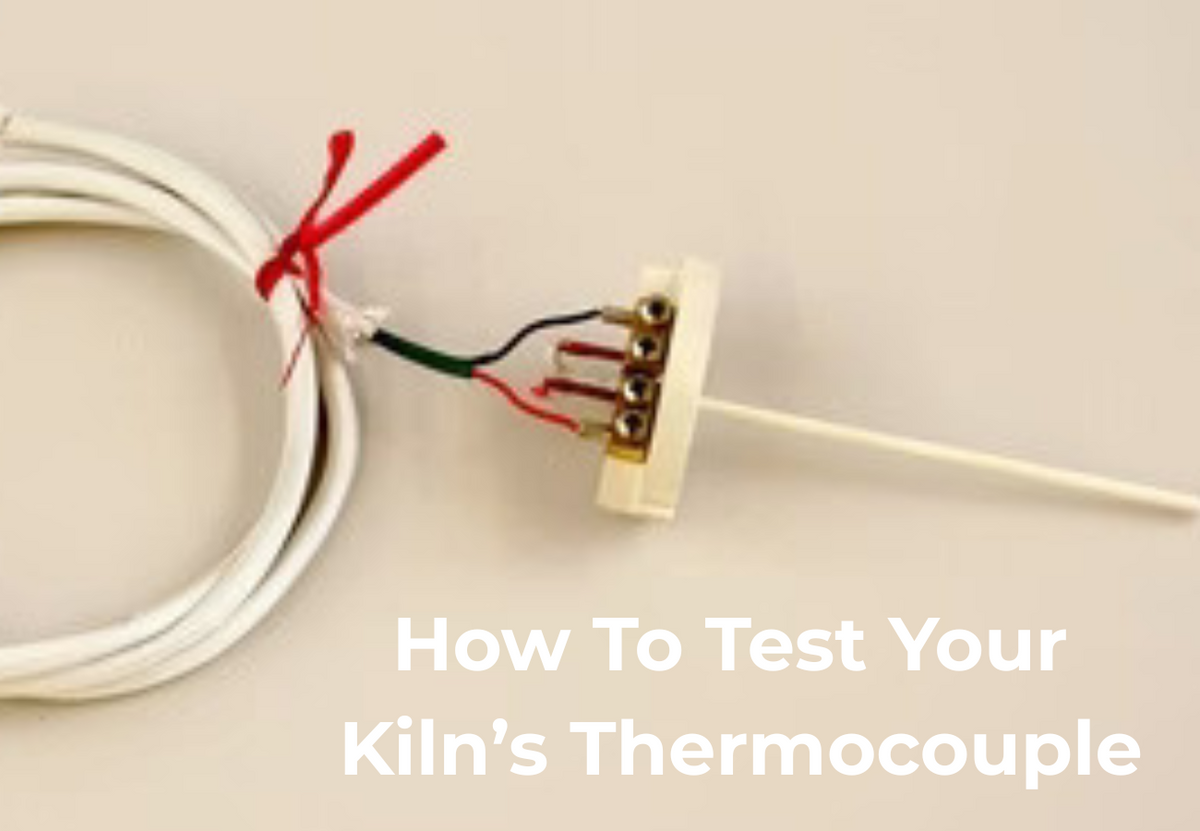

How to Test Your Kiln's Thermocouple
Have you ever opened your kiln to find underfired or overfired pieces, even though your controller said everything was spot-on? That frustrating surprise often points to one key culprit: your thermocouple. This small but mighty sensor is what tells your kiln controller the exact temperature inside your chamber. If it's not working correctly, you're essentially firing blind, risking your materials, your time, and your results. The good news? Testing your thermocouple is a simple process when you know what to look for. Let’s walk through it together.
What Your Thermocouple Actually Does
Think of the thermocouple as your kiln’s internal thermometer. It’s a metal rod made from two different types of wire that are joined at the tip. When it heats up, it produces a tiny voltage that your controller reads and converts into a temperature.
If the thermocouple is off, your whole firing could go sideways. Too cool? Gaze won’t mature, glass won't melt, and metals will not temper. Too hot? You’ll melt or warp your pieces. That’s why it’s so important to check your thermocouple before you fire your kiln. Accurate readings are essential to predictable, successful firings—especially if you're working at higher temps or with delicate finishes.
Common Signs of a Failing Thermocouple
Your finished work is often the first clue that something’s off. Watch for these red flags:
-
Underfired pieces, even when your controller says the temperature was reached
-
Glazes that come out with unusual textures or unexpected colors
-
Uneven results across the same firing batch
-
Overfired or misshapened work
-
Temperature error messages on your controller
-
Firings that end too early or don’t follow the programmed schedule
-
Cone packs that don’t match your controller’s reading (e.g., cone 6 should bend at 2232°F / 1222°C)
You might also notice physical changes to the thermocouple itself, such as:
-
Oxidation or discoloration on the tip
-
A bent or warped probe
-
Darkened or pitted areas at the tip
Safety First: What to Do Before You Begin
Always work with a completely cold kiln. Even if the outside feels cool, the inside could still be dangerously hot. Plan for at least 8-12 hours of cooling time after a firing.
Before inspecting your thermocouple, make sure to:
-
Unplug or disconnect the power to your kiln
-
Wear heat-resistant gloves and safety glasses
-
Have your kiln manual nearby in case you need reference diagrams
Put your kiln safety first. These precautions might seem basic, but they go a long way in keeping you safe and helping you stay focused on the task.
How to Visually Inspect the Thermocouple
Find where your thermocouple is mounted. It’s usually through the kiln wall with 1-2 inches of the rod sticking into the chamber. You’re mainly checking the tip, where the two metals meet.
Here’s what to look for:
-
A smooth, clean junction with no cracks, chips, or buildup
-
No heavy oxidation or corrosion
-
Consistent coloration on the metal and sheath
If there’s glaze, clay, or dust buildup, use a soft brush to gently clean it. If you see warping, burnt spots, or greenish-white corrosion, that’s a sign it is time for a replacement.
How to Test a Thermocouple Using a Multimeter
You’ll need a digital multimeter with millivolt (mV) capabilities. Thermocouples generate small voltages, so this tool helps you check if the signal is working as expected.
Steps:
-
Set your multimeter to the 0-200 mV range.
-
Connect the red lead to the thermocouple's positive terminal (usually yellow or brown), and the black lead to the negative terminal (usually red or blue).
-
Heat the tip of the thermocouple gently with a lighter or candle.
-
Watch the multimeter reading.
A Type K thermocouple should read about 4 mV at 212°F (100°C). The voltage should rise smoothly with increasing heat. If it doesn’t respond or reads way off from the expected range, it’s time to replace it.
Using Pyrometric Cones to Cross-Check Temperatures
You can also double-check temperature accuracy using pyrometric cones during a test firing. These cones are designed to bend at specific temperatures, making them a reliable backup for your controller’s readings.
Place the cones near a peephole or window so you can monitor them during the firing. If your controller says 1800°F (982°C) and the appropriate cone hasn’t moved, your thermocouple may be reading high. It’s also a good time to ask yourself: what temperature can you open your kiln? Opening too soon—before it's safely cooled—can cause thermal shock or ruin your pieces.
Some controllers let you adjust the “thermocouple offset”. If your cone tells you the real temp is 1750°F (954°C), you can program a (-50°F or -45.6°C) correction into your controller. Small offsets (5-25°F) are normal over time, but big ones (50°F or more) suggest your thermocouple is wearing out.
When to Replace Your Thermocouple
If your thermocouple is oxidized, bent, cracked, or no longer holding a calibration adjustment, it’s time for a new one.
As a rule of thumb:
-
High-fire artists (cone 9 and up) should replace after about 50 firings
-
Mid-range users (cone 6 and below) can usually go up to 100 firings
-
Glass artists every 150-200 firings
-
Heat Treating - every 50-100 firings
The hotter and longer your firing, the faster a thermocouple degrades. Even if it looks okay on the outside, it’s a consumable part that wears out over time.
Related: Kiln Troubleshooting Guide for Your Problems
Final Thoughts
A lot of firing issues can be traced back to this tiny component. Now that you know how to test and inspect your thermocouple, you’ll be one step ahead of unexpected surprises.
Stay on top of this maintenance routine, and you’ll spend less time troubleshooting and more time creating. And if you’re ever unsure about what you're seeing, Kiln Frog is always here to help you figure it out—no pressure, just honest guidance from fellow makers.
