The Different Types of Heat Treating
Heat treatment is a crucial process used to enhance the properties of metals, making them stronger, more durable, and resistant to wear. Each method alters a metal's structure for optimal performance, from hardening and quenching to annealing and nitriding. This article will explore the different types of heat treatments, their applications, and how they impact material properties. Ready to dive in? Let’s get started!
The Different Heat Treatment Types

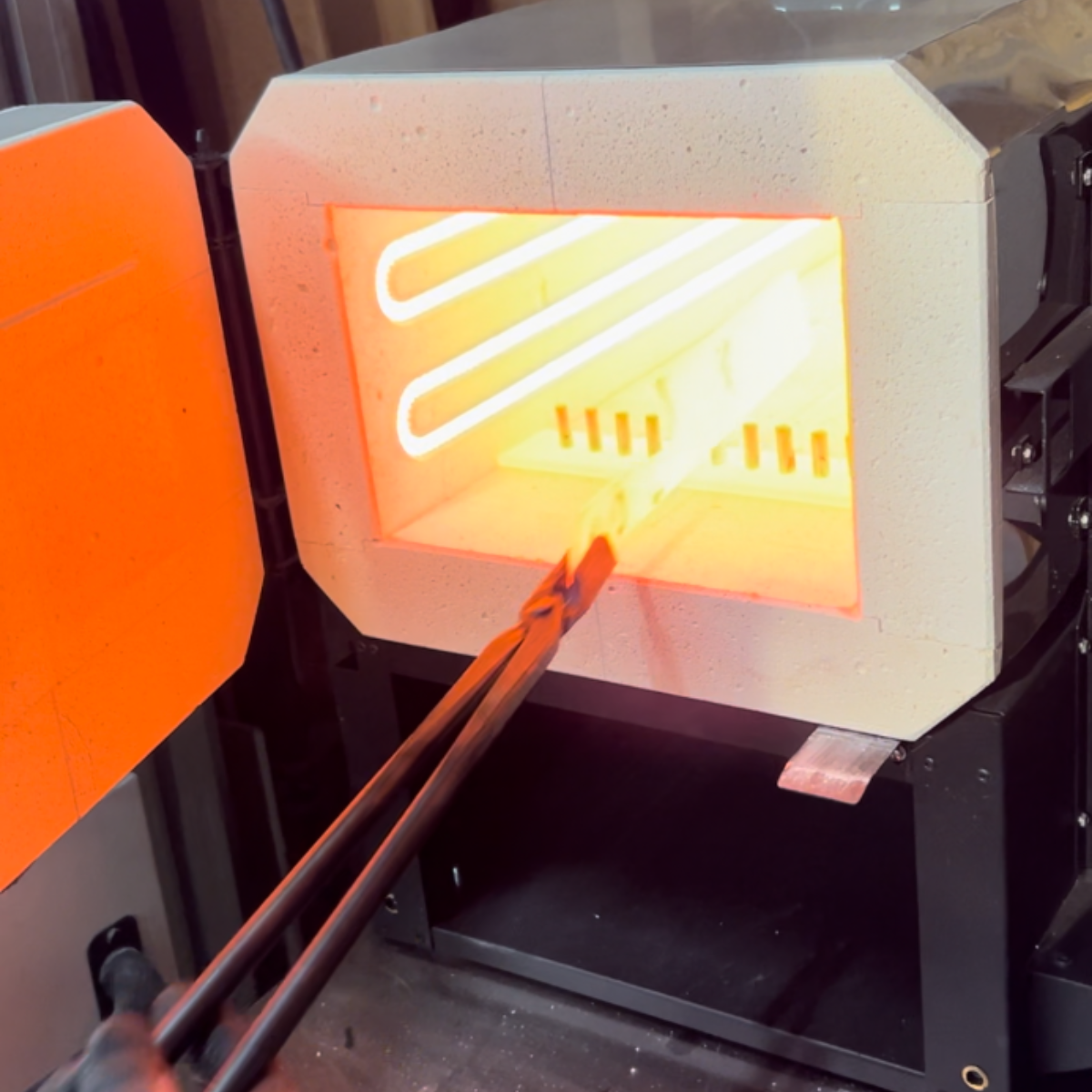

Heat-treating metals involves various methods to enhance strength and durability, with each process requiring a controlled environment like a heat treat oven for optimal results.
Hardening
Hardening heat treatment strengthens metal by heating it above its critical transformation point, typically between 750°C and 1300°C (1382°F to 2400°F), and then rapidly cooling it. When heat-treating steel, the metal is held at this temperature to ensure uniform structural change before being quenched in water, oil, or brine. The holding time typically ranges from 30 minutes to 2 hours, depending on thickness—generally allowing 1 hour per inch of thickness for complete transformation. This quick cooling locks in a hardened structure, significantly increasing strength and wear resistance. In steel, this process creates martensite, a challenging but brittle phase. The effectiveness of hardening depends on factors like carbon content, alloying elements, and specific heating and cooling rates.
While hardening increases durability, it can also make the metal brittle. To counter this, tempering often reduces brittleness while preserving strength. In some cases, such as with aluminum alloys, precipitation hardening is applied instead. Advanced methods like induction or laser hardening provide localized treatment, strengthening specific metal areas without affecting the entire piece. Precise control of these processes, whether in a kiln, oven, or furnace, is essential to achieve the right balance of hardness and toughness, ensuring the metal maintains its integrity throughout.
Quenching
Quenching is a heat treatment process that rapidly cools heated metal to alter its mechanical properties. The cooling medium—oil, water, brine, or air—affects the final hardness and strength. Faster cooling, like water, increases hardness, while slower methods, like oil or air, reduce cracking and distortion.
Before quenching, the metal is heated above its critical temperature, typically 815°C to 870°C (1500°F to 1600°F) for steel, allowing structural transformation. It is then quickly cooled, locking in a hardened microstructure, often forming martensite in steel. Precise control is crucial to prevent defects and achieve the desired material properties.
Annealing
Annealing is a heat treatment that increases metal ductility, reduces hardness, and relieves internal stresses, making it easier to shape without cracking. Used for steel, copper, aluminum, and brass, the process involves heating the metal to a specific temperature—750°C to 900°C (1382°F to 1652°F) for steel—allowing structural changes that improve workability. Full annealing requires holding at temperature for approximately 1 hour per inch of thickness, with larger parts sometimes needing 4-8 hours for complete transformation.
After reaching the desired temperature, the metal is cooled slowly to room temperature, ensuring a softer, more stable structure. Unlike quenching, which cools rapidly, annealing requires gradual cooling, sometimes over hours or days. This controlled process refines the grain structure, enhances machinability, and ensures the metal retains its desired properties.
Tempering
Tempering relieves internal tensions from fast hardening and cooling, reducing brittleness. Through controlled disintegration, martensite (the complex, brittle structure generated during quenching) becomes more stable, relieving tension and reheating hardened metal to 150°C to 700°C (302°F to 1292°F) between ambient temperature and its critical point tempers it. The ideal hardness-toughness balance determines the temperature. The metal is heated for a few minutes to many hours, depending on the workpiece size and required qualities.
Due to safety and environmental considerations, molten salt baths or controlled atmosphere furnaces and ovens are utilized more than molten salt or sand for tempering. Tempering improves toughness, dimensional stability, and fatigue resistance while reducing brittleness. Tempering reduces hardness but improves mechanical property balance, making the metal more acceptable for its intended use.
Stress Relieving
If you're new to heat treatment, stress reduction is crucial. Stress relief involves heating steel to temperatures between 450°C and 650°C (842°F to 1202°F) below its critical point, and it's an integral part of the process when you heat treat a knife. The steel is held at this temperature for 1 hour per inch of thickness, with a minimum of 30 minutes even for thin sections, then cooled slowly in still air. Complex geometries or heavily worked materials may require 2-4 hours at temperature. This technique helps reduce internal stresses from machining, welding, or cold-working without altering the knife's strength or hardness.
While stress relief doesn't make the knife harder or more substantial, it enhances dimensional stability, reduces the risk of stress corrosion cracking, and increases flexibility. It's essential in industries like aerospace and automotive, where precision and stability are key to ensuring parts hold up during use. Relieving internal stresses helps prevent distortion and ensures the knife remains durable and reliable.
Nitriding
Nitriding is a surface hardening method that uses nitrogen to create a durable coating on metal. Unlike other treatments, tools that endure heavy wear, such as wrenches, benefit significantly from nitriding, as it strengthens only the surface. The operation can be carried out using plasma, liquid (salt baths), or gas (usually ammonia) technologies. To begin, place the metal in a sealed chamber and heat it to 495°C-565°C (925°F-1050°F) for gas nitriding. The breakdown of ammonia gas produces atomic nitrogen, which reacts with the metal to form nitrides alongside iron and other alloying elements.
As the temperature increases, the case depth also increases. There's no need to quench or cool the metal afterward because the nitride layer bonds securely to the surface. This technique significantly improves surface hardness, fatigue strength, wear, and corrosion resistance. Nickel plating works exceptionally well on alloy steels containing chromium, molybdenum, or aluminum, as these elements help form nitride. When selecting where to place your kiln, be mindful that these processes require precise control of temperature and gas atmosphere, making proper kiln setup essential for achieving optimal results.
Cyaniding
Cyaniding heat treatments improve fatigue strength, wear resistance, and surface hardness of small to medium-sized ferrous metal components. The therapy uses sodium cyanide, therefore "cyaniding". First, the metal is immersed in a 1550°F-1750°F molten salt bath. Sodium cyanide, soda ash, carbonate, and chloride are common in this bath. The metal decomposes cyanide ions at high temperatures for 15–30 minutes, depending on case depth, in the bath. Nitrogen and carbon permeate into metal surfaces during breakdown. A hard case layer forms when these elements saturate the surface. Quenching the metal in oil, water, or brine quickly cools and hardens it. The component has a hard, wear-resistant top layer and a tough core, making it useful for high-stress sections.
Case Hardening
Case hardening is a great way to make parts that have a tough, wear-resistant outside and a tough, flexible inside. This method is often used on low-carbon steels, which don't have enough carbon in them to be very hard on the outside. Case hardening is the process of heating metal and exposing it to conditions high in carbon or nitrogen. This can add carbon, nitrogen, or both to the metal's surface. Typical holding times range from 4-10 hours for case depths of 0.030-0.060 inches, with deeper cases requiring up to 16-20 hours.
This operation is usually done after machining to strengthen the pieces. Most often, steel is carbonized by heating it to 850°C-950°C (1562°F-1742°F) in a carbon-rich environment. Other procedures include nitriding and carbonitriding. To achieve the appropriate case depth and balance surface hardness and core toughness, temperature, time, and cooling rate are carefully controlled. This prevents brittleness. Due to modest size changes, case hardening may require final machining or grinding to reach accurate specifications.
Aging/Precipitation Hardening
Aging, or precipitation hardening, strengthens metal alloys through heat treatment. Often used for aluminum, magnesium, nickel, and steel. In the alloy's crystalline structure, tiny, uniformly distributed precipitates occur.
The precipitation hardening process usually takes three steps. Solution treatment begins with heating the alloy to a high temperature to dissolve the alloying elements into a solid solution, followed by quick cooling (quenching) to preserve supersaturation. Second, the alloy is aged at an intermediate temperature to regulate fine particle precipitation. For aluminum alloys, artificial aging typically requires 8-12 hours at 320-350°F, while solution treatment usually needs 1-2 hours. Some precipitation-hardening stainless steels require aging times of 1-4 hours at temperature.
Aging can occur naturally or artificially at high temperatures. Natural or artificial aging depends on metal composition and requirements. Some alloys, like some aluminum series, age naturally over days or weeks, while others need controlled aging at exact temperatures to perform well. Aging precipitates block crystal lattice dislocation motion, strengthening the alloy.
Invest in Quality for Optimal Heat Treatment Results
Heat treatment is crucial for enhancing metal strength, durability, and performance. The right equipment is key to achieving precise results in hardening, quenching, and nitriding. Kilnfrog’s heat treat ovens and kilns provide the perfect environment for controlled, efficient heat treatment, ensuring your metals maintain their desired properties. With Kilnfrog’s reliable and precise equipment, you can trust that your heat treatment processes will be consistent, effective, and tailored to your needs.
