|Dimensions Inside:||28" (width) x 22.5" (depth)|
|Dimensions Outside:||36.3" (width) x 49.8" (depth) x 40" (height)|
|Shelf Size:||26” Round Shelf - NOT INCLUDED|
|Elements:||Side Element Only|
|Max Temp:||Fires to 2350° F|
|Shipping Weight:||500# (Freight)|
- FREE SHIPPING in the contiguous US!
- Sentinel SmartTouch Controller
- Lock-in lid support
- Ventilated switch box
- Hand lifts
- Sectional design for easier maintenance
- Large, tapered peepholes
- Heavy-duty elements
- Dust-free coating in the peepholes, both sides of the lid and top rim of firebrick
- Dropped, recessed brick grooves eliminate the need to pin elements
- Operating instructions silk-screened on the switch box
- Heavy-gauge stainless steel case
- Certified to CSA and UL Standard 499
- Full-formed steel base completely protects the brick bottom
- 1-Year Limited Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)
OPTIONAL Tall Heavy Duty Rolling Stand, 32” Square x 12” High
A deluxe, rock-solid kiln stand with locking casters, is now an option. STANDS ARE NOT INCLUDED. Please check the options box if you would like a stand included with your kiln order. You will enjoy the convenience of effortlessly moving the kiln out of the way when not in use. The stand is rock solid. It fits together with interlocking components that assemble with one size of bolt. (Ships unassembled.)
The 12” tall stand raises the kiln to a convenient height for loading and unloading. Should you need a vent, merely slide the collection cup of an Orton vent into a mounting bracket on the top of the stand.
Take advantage of the heat that radiates from the kiln. Load greenware on the lower shelf. The heat from the kiln will dry the ware to prepare it for the next firing. Save the time and electrical expense of drying the ware inside the kiln.
The TNF273 is easier to load than the deeper studio kilns. It is only 22 ¼” deep, yet larger inside than the 29” deep 10-sided 24-series kilns.
The TNF273 features sectional construction. Separate the kiln bottom and two sections to repair bricks, change elements, or to move the kiln down narrow stairwells or through the narrowest doorways. Twist-lock spring latches hold the assembled collars securely.
The top row of brick in the TNF273 is 2” high and without element grooves. It is less susceptible to damage during loading than a grooved brick.

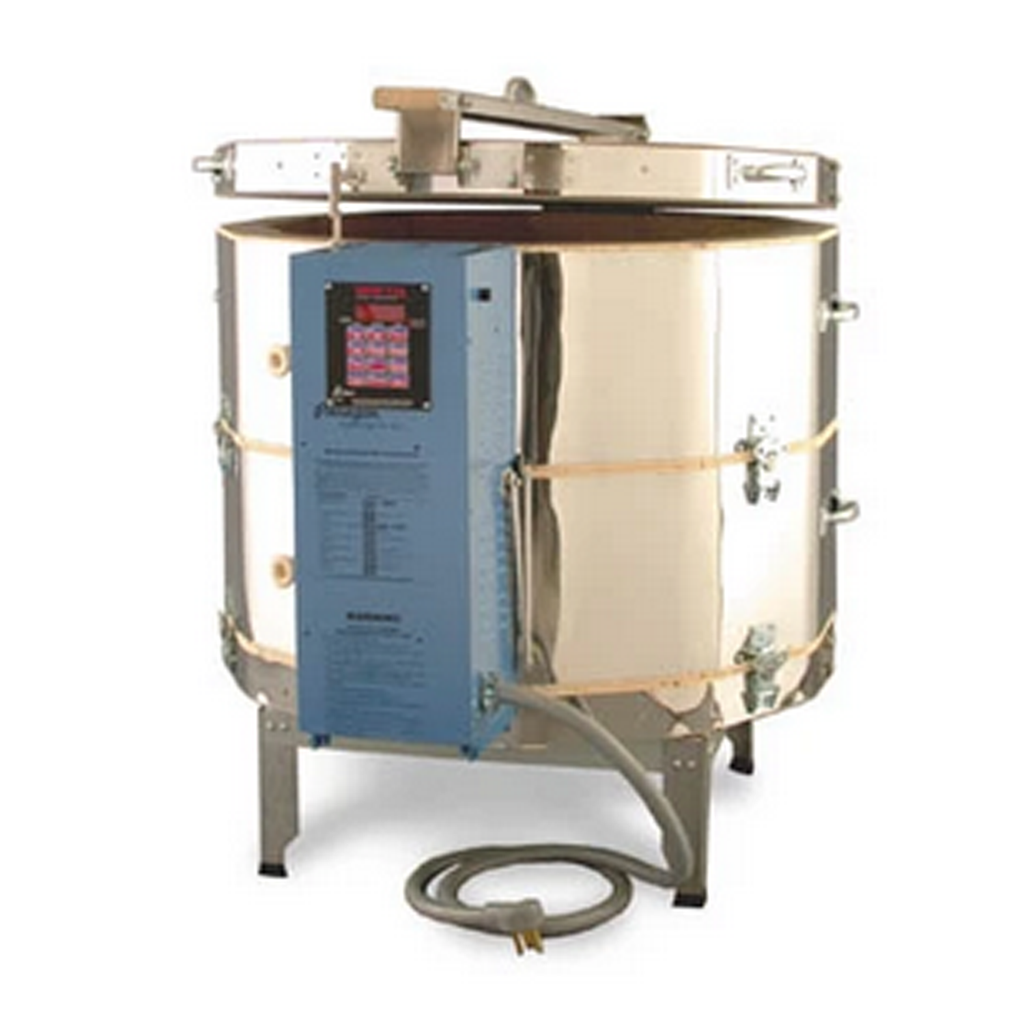

The massive, 12-sided Paragon digital TNF273 kiln is a profit center of the busy ceramic studio. It eats up stacks of low-fire ware as well as porcelain and stoneware. It is rated to a full cone 10. At a cost per cubic foot, the TNF273 is one of the most economically priced standard kilns we make.
During busy seasons when orders are backlogged, you will be grateful you own a dependable Paragon kiln. Studio owners call these kilns “real workhorses.”
Paragon studio kilns have withstood years of abuse in school environments. High school ceramics teachers fire these kilns unmercifully, without remorse. Yet the kilns keep going. People swear by them.
You can separate the TNF273 kiln bottom and sections to repair bricks, to change elements, or to move the kiln down narrow stairwells or through narrow doorways. Heavy-duty twist-lock spring latches securely hold the assembled kiln sections. Sectional kilns are ideal for older buildings in areas such as New York City or in homes with basements. The kiln is easy to maintain—the stainless steel case of each kiln section includes case tighteners.
Heavy Duty Throughout
Wires are fastened to the elements with heat-dissipating connectors refined and proven for many years in Paragon kilns. Long-lasting, thick elements are seated in dropped, recessed brick grooves, which eliminate the need for element pins. (Since the elements are not pinned, they are faster to replace than the elements of some competitive models.) Costly heavy-gauge nickel-plated copper wiring is covered with high-temperature glass-braided insulation.
UL / CUL / NEC-compliant high-amperage fuses protect the kiln and circuit wiring. These fuses are built into the kiln switch box—just one more thoughtful touch that you will find in a Paragon Viking.
A heavy galvanized steel base completely covers the reversible brick bottom. It folds up under the stainless steel case on all 12 sides to strengthen the firing chamber and protect the bottom. Unlike competitive brands, you can move your Paragon without worrying about the stand digging into the firebrick bottom. This is one more assurance that your Paragon kiln is built to last.
Patented, Easy-to-Lift Lid
The massive lid is easy to lift with Paragon's patented LiteLid spring counter-balance. It does away with cumbersome pulleys and cords and reduces lid weight to only several pounds of pressure.
Easy-Access Patented Switch Box
Hinged at the bottom, the switch box on the TNF273 and most of Paragon’s other top-loading studio kilns opens forward for easy maintenance. It even includes a folding support arm, which holds the box in the open position. The Sentry micro-processor controller is mounted near the top of the switch box within easy reach. Operate the controller from a comfortable height.
Thermocouple with “special limit” wire
The thermocouple senses temperature inside the kiln. It is the small rod that extends into the firing chamber. The ¼” wide Type-K, 14-gauge, exposed-tip thermocouple is made with special-limit wire for superior accuracy. The exposed tip gives the controller a fast response time for even temperatures during holds. The thermocouple is made in America to our exacting standards.
Ceramic Kiln Instruction & Service and Sentry Controller Manuals
Want to know more about this kiln before you buy? Click here to download the manual and read more on ceramic kilns. Download the manual for the Sentry 2.0 12-Key Controller here to learn more about this controller.
