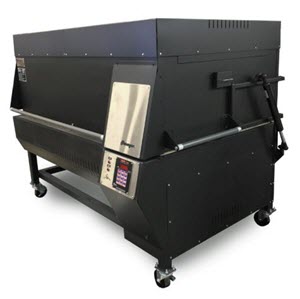

Imagine the huge glass pieces you could make inside the Paragon CS-5630. Enjoy complete access to your artwork from the sides and front. The CS-5630 is 56” x 30” x 16” high. With elements in the floor, walls, and roof, you will enjoy unsurpassed heat distribution. The digital controller uses Power Ratio technology to vary the heat output between the top and bottom elements. Choose the ratio of heat in increments of 10 percent.
| Model: | Paragon CS-5630 |
| Dimensions Inside: | 56" (length) x 30" (width) x 16" (depth) |
| Dimensions Outside: | 70.5" (width) x 53" (depth) x 52" (height) |
| Shelf Size: | 53” x 27” Shelf - NOT INCLUDED |
| Elements: | Top and Side Elements |
| Max Temp: | Fires to 1700° F |
| Voltage: | 240 volts |
| Amperage: | 67 amps |
| Watts: | 16,000 watts |
| Receptacle: | Direct Wire |
| Shipping Weight: | 1532# (Freight) |
Deluxe Quartz Tubes
The roof elements are protected in 10 quartz tubes for a cleaner kiln interior. There is less dust in the kiln because there are no element grooves in the top.
Extra Insulation and Woven Gasket

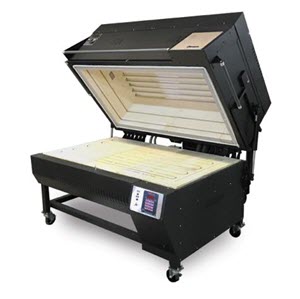

Lift the kiln top section with handles in the front and sides and with assistance from gas springs. The roof is 3” thick ceramic fiber, and the walls are 3” firebrick backed by 1” of ceramic fiber board (4” of total wall thickness). The extra insulation helps to maintain even temperatures. A woven gasket between the kiln top and floor helps to hold in the heat. The floor surface is a convenient 30” high from ground level. The 4 ½” thick firebrick floor includes two expansion joints.
Watch the glass through 2” x 3” peepholes mounted in the left and right sides. The engineered peephole plugs include steel handles. The kiln remains stable with locking casters.
Motorized Vent for Firing Molds
If you fire molds, you will welcome the motorized Orton Vent Master, which is mounted in the back wall of the kiln. The vent, mounted on rubber isolators to prevent vibration, removes moisture from the kiln through two rear-mounted collection cups. This reduces rust in the kiln. The vent is standard on the CS-5630 and plugs into an auxiliary output in the back of the kiln. This allows you to turn on the vent through the digital controller.
Low Maintenance
Deluxe, long-lasting mercury relays are standard. Gain convenient access to the electrical components by removing a single panel. The kiln includes access panels for easy replacement of the quartz tubes.
Rugged
The CS-5630 is the very picture of ruggedness. A sheet metal ledge extends in front of the kiln by 3 3/4” to protect the brick floor from damage caused by leaning into the kiln. The digital controller is mounted away from the heat of the firing chamber for long life. The kiln base is welded from 2” x 2” steel tubing; the upper kiln frame is welded from 1” x 1” steel tubing.
Thermocouple with “special limit” wire
The thermocouple senses temperature inside the kiln. It is the small rod that extends into the firing chamber. The ¼” wide Type-K, 14-gauge, exposed-tip thermocouple is made with special-limit wire for superior accuracy. The exposed tip gives the controller a fast response time for even temperatures during holds. The thermocouple is made in America to our exacting standards.
NOTE*** This kiln is delivered fully assembled. No assembly is required on site. Large capacity kilns 20 cubic feet and larger require the customer to have a forklift that can move the kiln from the truck to the desired location. If you do not have access to a forklift, check the internet or yellow pages for small moving companies that can take the freight off the freight carrier and move the freight to the desired location. Give any prospective mover a physical description of the kiln and its weight, and inform them that it is designed to be picked up with a truck and a forklift only. It is your responsibility to move the freight from the truck to its place of use.
Have questions? Call or email, we're here to help!

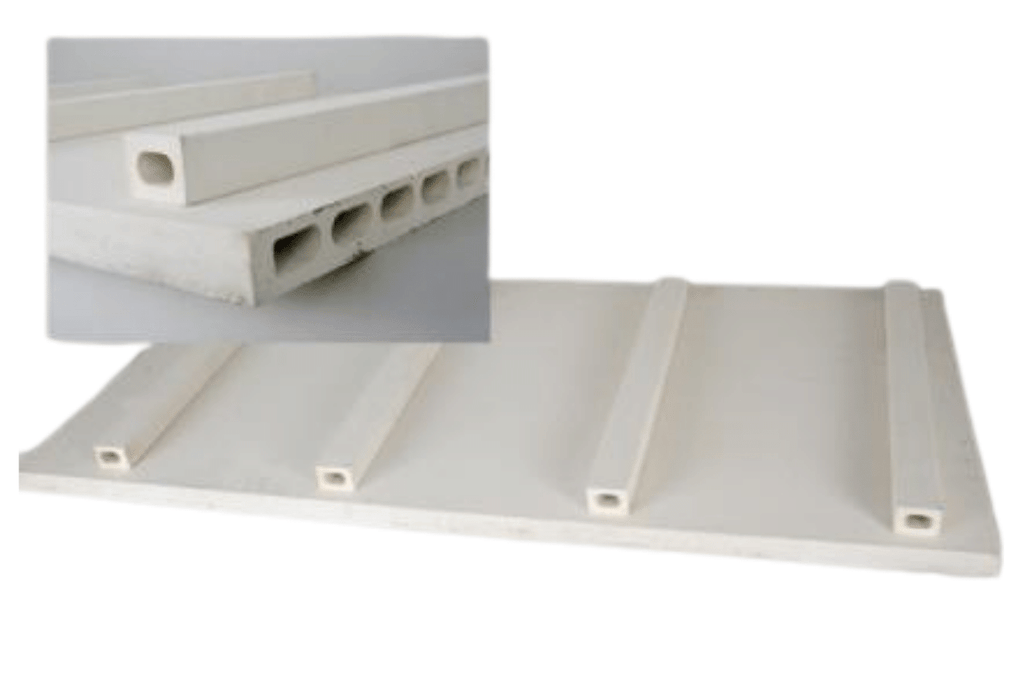

Manufacturer’s Guidelines for Using Large CoreLite shelves
1) Surface Coverage
Do not use a large CoreLite shelf if your glass pieces cover less than half of the total shelf surface area. Small surface area coverage on a large shelf will concentrate the heat into a small area and place thermal stress on the shelf, which will crack it. Do not place casting molds on the CoreLite shelf. This also causes thermal stress.
2) Heating and Cooling Rates
CoreLite recommends that the shelf is heated no faster than 200 degrees F / 111 degrees C per hour, particularly if the surface coverage is low. A large shelf without joints must absorb and shed heat at a rate that will allow the shelf to grow and shrink without thermal shock. The ideal heating and cooling rate is 140-160 degrees F / 77-88 degrees C hour. CoreLite suggests holding at 1000 degrees F / 537 degrees C on the heat up for 1 hour and another 1 1/2- 2 hours on the cool down. This should not affect the glass and will allow the shelf to accommodate and relieve the stress.
