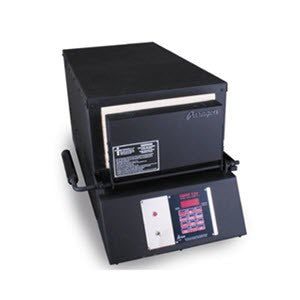

The Paragon Double Barrel 18T is just the right size for heat treating and case hardening gun parts and knives. Experiment with color base hardening. Restore the faded colors of historic guns. As with the other Paragon furnaces, the Double Barrel 18T has a digital controller so you can program the exact temperature and hold time needed.
Model: | Paragon Double Barrel 18T (KM Series) |
Dimensions Inside: | 11" (width) x 18" (depth) x 4.25" (height) |
Dimensions Outside: | 20" (width) x 32" (depth) x 18" (height) |
Elements: | Top and Side Element |
Max Temp: | Fires to 2350° F |
Voltage: | 240 volts |
Amperage: | 13 amps |
Watts: | 3073 watts |

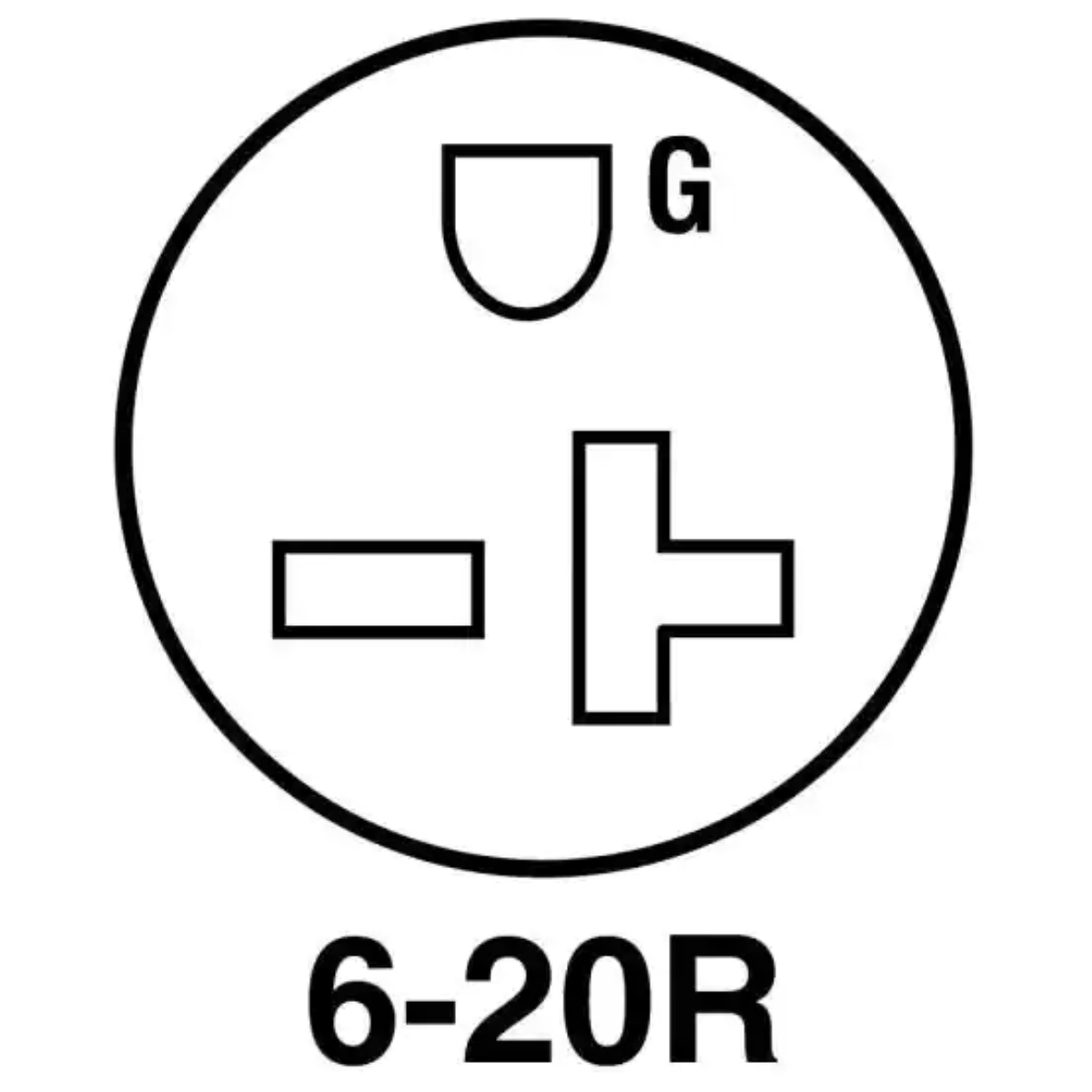

Receptacle: | 6-20R |
Shipping Weight: | 145# (Freight) |
The Double Barrel 18T now has a solid state relay, which lasts far longer than a standard mechanical relay. The solid state relay has no moving parts to wear out. The first thing you will notice is that the solid state relay is silent. You will hear just the reassuring hum of elements. The solid state relay makes heating elements last longer and offers better temperature control during holds.
The Double Barrel 18T includes a mechanical relay as part of a safety circuit.
The controller eliminates guesswork. Instead of estimating a temperature by the color of the heat, just program a temperature. You will no longer have to adjust a switch to maintain the hold time for case hardening; the controller maintains the hold time for you. Set the hold time for as long as necessary (typically two hours).

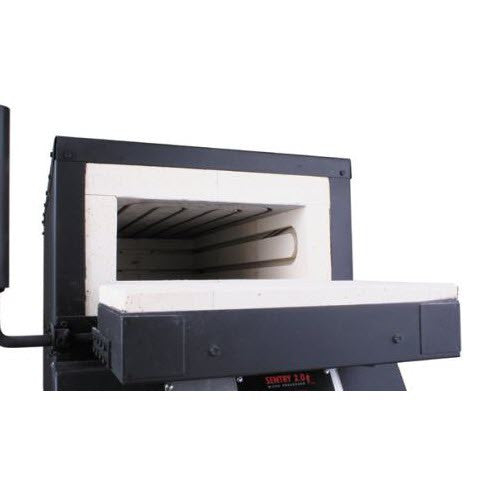

You can order a Paragon Double Barrel 18T heat treating furnace with either a drop door or a side-swing door. The price of the furnace is the same with either door style.
The drop door opens downward with one-handed operation. A counter-weight handle holds the door securely closed. The door, whether drop or side-swing, is mounted on a heavy-duty 1/2” thick hinge shaft for smooth opening. Because of the rigid case and heavy hinge, the door is sturdy enough for years of faithful service.
Thermocouple with “special limit” wire - The thermocouple senses temperature inside the kiln. It is the small rod that extends into the firing chamber. The ¼” wide Type-K, 14-gauge, exposed-tip thermocouple is made with special-limit wire for superior accuracy. The exposed tip gives the controller a fast response time for even temperatures during holds. The thermocouple is made in America to our exacting standards.
Compare the full range of Paragon KM furnace sizes
KM-14T: 14 ½” long, 5 ½” wide, and 4 ¼” high
KM-18T: 18” long, 5 ½” wide, and 4 ¼” high
KM-24T: 24” long, 5 ½” wide, and 4 ¼” high
KM-36T: 36” long, 5 ½” wide, and 4 ¼” high
KM-45T: 45” long, 5 ½” wide, and 4 ¼” high
Double Barrel 9T: 11” long, 9” wide, and 4 ¼” high
Double Barrel 18T: 18” long, 11” wide, and 4 ¼” high
Double Barrel 24T: 24” long, 11” wide, and 4 ¼” high

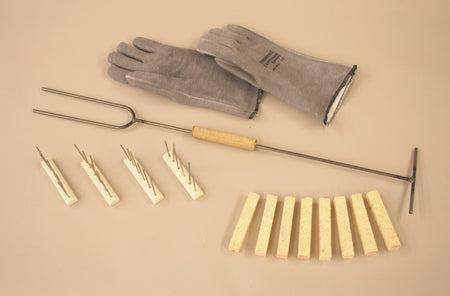

Check out the accessories you can use with this kiln!
https://kilnfrog.com/collections/heat-treating-accessories
Stainless Steel Wax Trays
Use a Stainless Steel Wax Tray, 9″ X 8.5.″ This Stainless Steel Wax Tray system will fit well in your kiln and allow you to do lots of production work. Place molds on the removable expanded metal top. The wax will drip from the molds. Then remove the wax tray before the kiln gets hotter than 300°F / 148°C. Note: Burning wax inside a kiln can damage the firebricks. Check out a 9 x 8.5" Stainless Steel Wax Tray to fit in this kiln here.
