Paragon Kiln - Heat Vault 36 - A Kiln Frog Exclusive! - kilnfrog.com

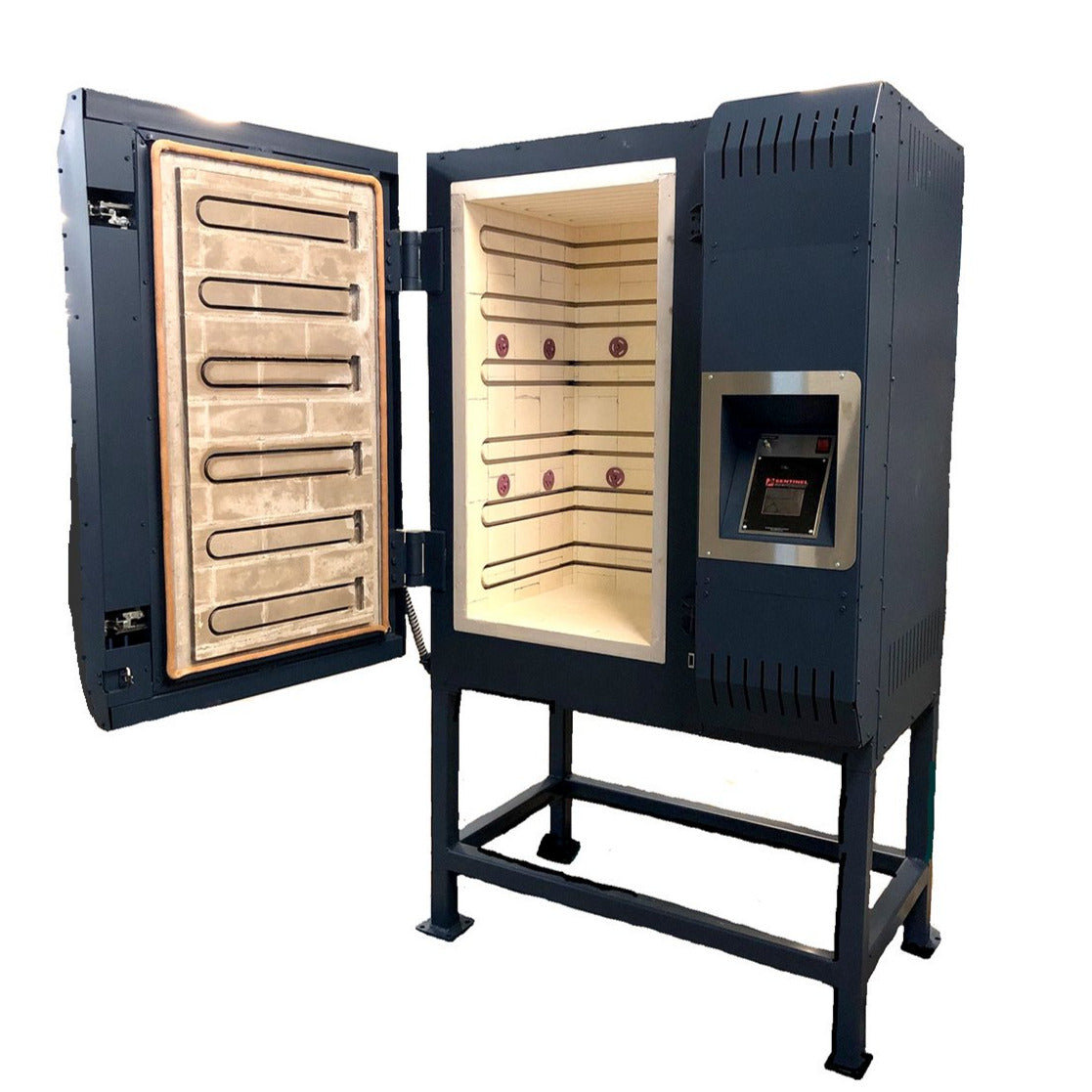

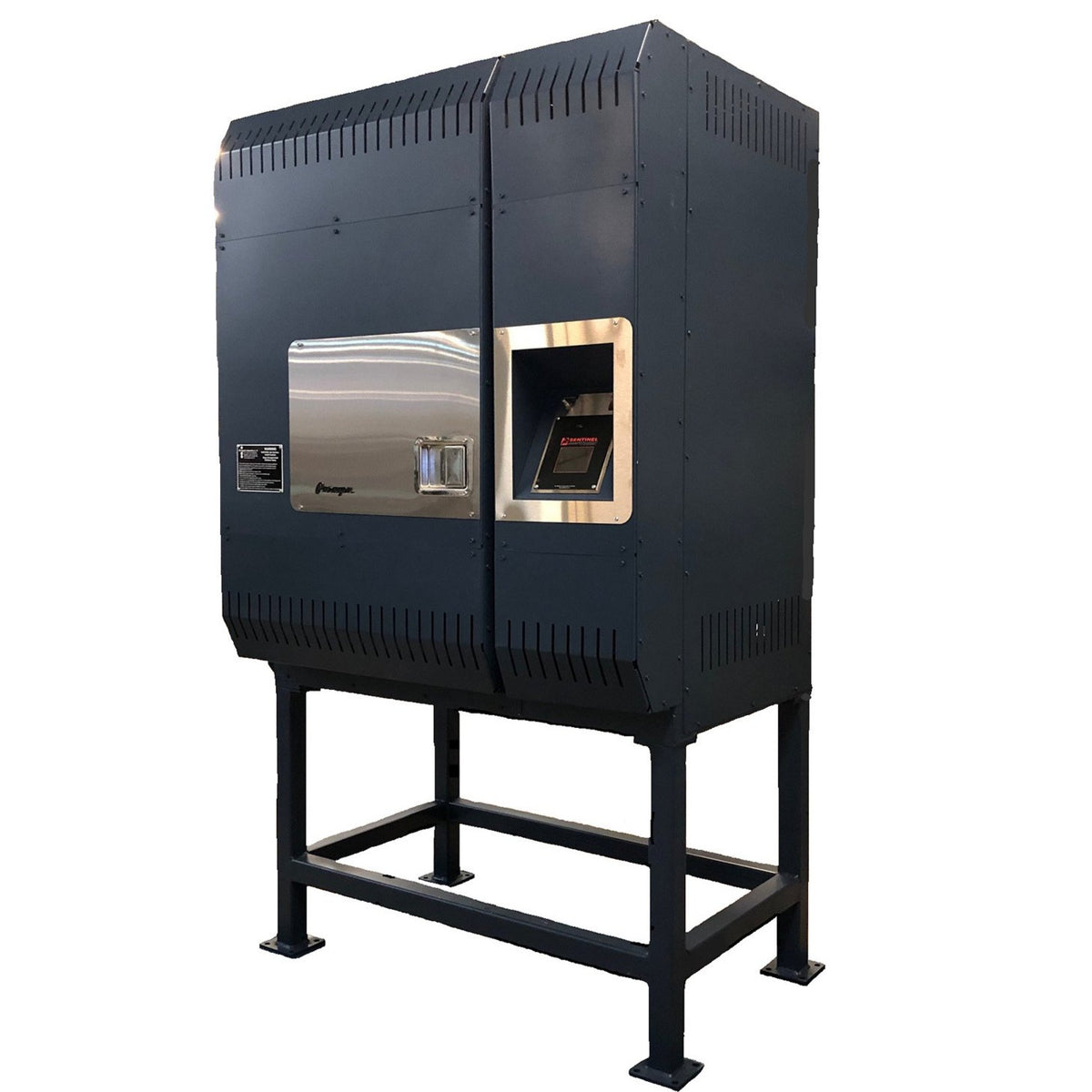

Paragon Kiln - Heat Vault 36 - A Kiln Frog Exclusive!

$ 5,679.89 $ 10,429.58

Model: Paragon Heat Vault 36
Dimensions Outside: 36" (width) x 31.3" (depth) x 75" (height) inc. 24" stand
Dimensions Inside: 18" (width) x 18" (depth) x 36" (height)
Elements: Side Elements
Max Temp: Fires to 2350°F, Cone 10
Voltage: 240 volts / 1 Phase - Available in 208V and 3 phase
Amperage: 60 amps
Watts: 14,250 watts
Receptacle: Direct Wire
Shipping Weight: 730 lbs. (freight)



Includes:

  • FREE SHIPPING in the contiguous US!
  • 12-key digital Sentry Xpress controller
  • 3” thick walls, top and door
  • Type-K thermocouple with ¼” sheath, or optional type-S
  • Proportional power elements for more even heating
  • 3” thick reinforced firebrick floor.
  • Kanthal Iron Chrome Elements for extended life
  • 22" Stand with Shelf
  • Standard Color: Steel Blue - (Officially Pantone 432 C)
  • Front Loading Spring Style Door

The Heat Vault 36 is all about power and versatility, and most of all... MORE USABLE VOLUME IN A SMALLER FOOTPRINT!  You get 6.75 cubic feet of space is less floor space than ever before!

This special production kiln can be configured for ceramic production, heat treating, and glass production depending upon your specific needs. We've designed tailor-made packages for each industry and application to give you all the things you need in a "perfect" kiln.

The Heat Vault 36 has everything you need, plus all the add-on extras you really want in convenient packages!

Pick the Package that's right for you!    See the drop-down menu above for pricing.



AVAILABLE OPTIONS:

  • Sentinel Touch Screen Controller
  • Orton Ventmaster (Auxiliary Output Plug - 240V) digitally controlled
  • Safety Interlock Switch (locks the door during firing)
  • Fiber Lid w/ Elements
  • Multi-Zone Controls
  • Door With Elements
  • Gas Inlet Flow Meter with Solenoid
  • Solid State Relays
  • Mercury Relays

These options are available in the following packages:

STUDIO PACKAGE A: Comes with a Sentry 12-key Controller and the Orton Ventmaster System fully installed with a 240-volt Auxiliary Output Plug. This allows the controller to automatically control when the vent cycles on and off during each segment. Standard Mechanical Relays are installed and a Door Switch which cuts the power when the door is opened, this is ideal for keeping you safe when opening the door during Raku firings, or for classroom safety.



STUDIO PACKAGE B: Comes with the Sentinel Touch Screen Controller and the Orton Ventmaster System fully installed with a 240-volt Auxiliary Output Plug. This allows the controller to automatically control when the vent cycles on and off during each segment. Upgraded Solid State Relays are installed and a Door Switch which cuts the power when the door is opened, this is ideal for keeping you safe when opening the door during Raku firings, or for classroom safety.



INDUSTRIAL PACKAGE A: Comes with a Sentry 12-key Controller, a Gas Inlet Flow Meter, and Solenoid for neutral gas introduction thus reducing oxidation. This allows the controller to automatically control when the gas is introduced into the chamber and cycles on and off during the firing segments. Upgraded 4-sided heat chamber with Added Door Elements. Upgraded Solid State Relays for tighter temperature control and a Door Switch which cuts the power when the door is opened, this is ideal for shop safety.



INDUSTRIAL PACKAGE B: Comes with the Sentinel Touch Screen Controller and the Orton Ventmaster System fully installed with a 240-volt Auxiliary Output Plug. This allows the controller to automatically control when the vent cycles on and off during each segment. A Gas Inlet Flow Meter and Solenoid for neutral gas introduction thus reducing oxidation. This allows the controller to automatically control when the gas is introduced into the chamber and cycles on and off during the firing segments. Upgraded 4-sided heat chamber with Added Door Elements. Upgraded Solid State Relays for tighter temperature control and a Door Switch which cuts the power when the door is opened, this is ideal for shop safety.



THE GLASS VAULT: Comes with a Sentinel Touch Screen Controller and the Orton Ventmaster System fully installed with a 240-volt Auxiliary Output Plug. This allows the controller to automatically control when the vent cycles on and off during each segment. Upgraded 4-sided heat chamber with Added Door Elements. Upgraded Solid State Relays for tighter temperature control and a Door Switch which cuts the power when the door is opened, this is ideal for shop safety. Multizone Temperature Control with three thermocouples that allows you to control 3 heat zones. This allows you to divide the kiln into a casting chamber, a fusing chamber, and a slumping chamber, or any combination of two at once. A Fiber lid with elements is also included ion this package to eliminate brick dust falling onto your work, plus a top firing option too!



If you do not see the grouping of options you want, email or call us and we'll price a custom package just for you and your application.
