|Inside Dim:||23 3/8" (width) x 27" (depth)|
|Outside Dim:||36" (width) x 41" (height)|
|Shelf Size:||21” Round Shelf - NOT INCLUDED|
|Max Temp:||Fires to Cone 10 - 2350°F|
|Amperage:||47 amps (Single Phase) / 31 amps (3 Phase)|
|Receptacle:||6-50 (Single Phase) / Direct Wired (3 Phase)|
|Ship Wt:||350# (Freight)|
- FREE SHIPPING in the contiguous US!
- 12-Key Digital Bartlett Controller (V6-CF)
- Mechanical Relays
- Instruction Manual
- One-year limited warranty

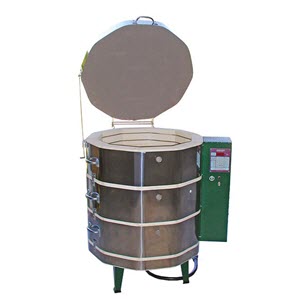

Save money and energy with an Olympic Medallion Artist Series kiln!
Olympic’s Medallion Artist Series models can be fired every day with high-performance heating and controlled cooling providing a perfect firing every time.
Olympic’s proven electrical box design with heat shields and top and bottom perforations keep the electrical components cool, and balanced heating elements ensure even heating of the firing chamber under all firing conditions. Solid green electrical boxes save you the cost of extra parts required for boxes on stackable electric kilns.
Extra insulation by using 3" brick means less energy consumption and more efficient firings. Models are high-fire cone 10 kilns.
Six (6) select model choices ranging in sizes 18” – 28” wide: MAS1818HE, MAS1823HE, MAS2323HE, MAS2327HE, MAS2823HE, and MAS2827HE!
Should I Upgrade This to A Dual Media Kiln?
Dual Media kilns are designed for the individual or business that works with multiple media. The dual design for reaching high firing temperatures for stoneware, pottery, ceramics, and the lid element for fusing glass provides the versatility needed. You can turn the lid element on and off when you need it saving your element's life and electricity. Oval dual media kilns are built with a 2" blank brick row in the first section of the kiln to protect the elements when loading and unloading the kiln. All Dual Media models high fire to 2350°F and have a lid element to fuse glass.
Why Upgrade from Mechanical Relays to Solid-State Relays?
Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced. Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years. Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times. Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced. You will notice that solid-state relays are silent. The only sound you will hear is just the reassuring hum of the heating elements. So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself. We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.WHAT MAKES AN OLYMPIC 23H” & 28H” KILN A BETTER CHOICE?
Smart Investment - Olympic 23H” and 28H” models are recognized as a smart investment because of longevity and durability. These models are perfect for the classroom because they are tough and can handle continuous firings.
Extra Insulation = Energy Efficiency - The 23H” and 28H” models are built with 3-inch brick which provides extra insulation resulting in energy efficiency. Olympic’s proven electrical box design, with heat shields and perforations, in the top and bottom, keep the electrical components cool. Balanced heating elements ensure even heating of the firing chamber under all firing conditions.
Stackable - Olympic 23H” and 28H” models are stackable because they are built in sections. This means the kiln can be easily taken apart or changed in size without having to remove the entire electrical box.
Versatility – Olympic 23H & 28H models come in depths ranging from 18”, 22 1⁄2”, 27” and 31 1⁄2” deep. You can add an optional lid element enabling your kiln to fire both ceramics and glass.
Electronic Controller Choice - You can equip your kiln with one of the four electronic controllers Olympic carries based on what works best for you. Choose either the 3 Key/Cone Fire, digital V6-CF or RTC-1000, or the Genesis touchscreen controller.
Lid Lift - Olympic 23H” and 28H” models are built with Lid Lift Assists for easy opening or closing of kiln lid.
Multiple Options – Choose from additional accessories to enhance your kiln, including 2-3 zone control, solid state or mercury relays, castors, and/or an automatic lid shut-off.
Customer Service – At Olympic, we love our products and we love our customers! We’re here for you when you need assistance.
