|Inside Dim:||17.5" (width) x 12 (height) x 22.5" (depth)|
|Outside Dim:||30.5" (width) x 27" (depth) x 22.5" (height)|

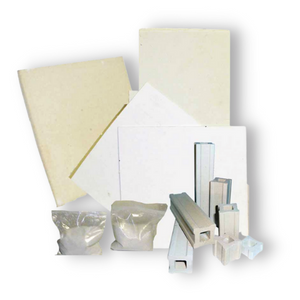

|Shelf Size:||16" x 20” Rectangular Shelf - NOT INCLUDED|
|Max Temp:||Fires to Cone 8 - 2300°F|

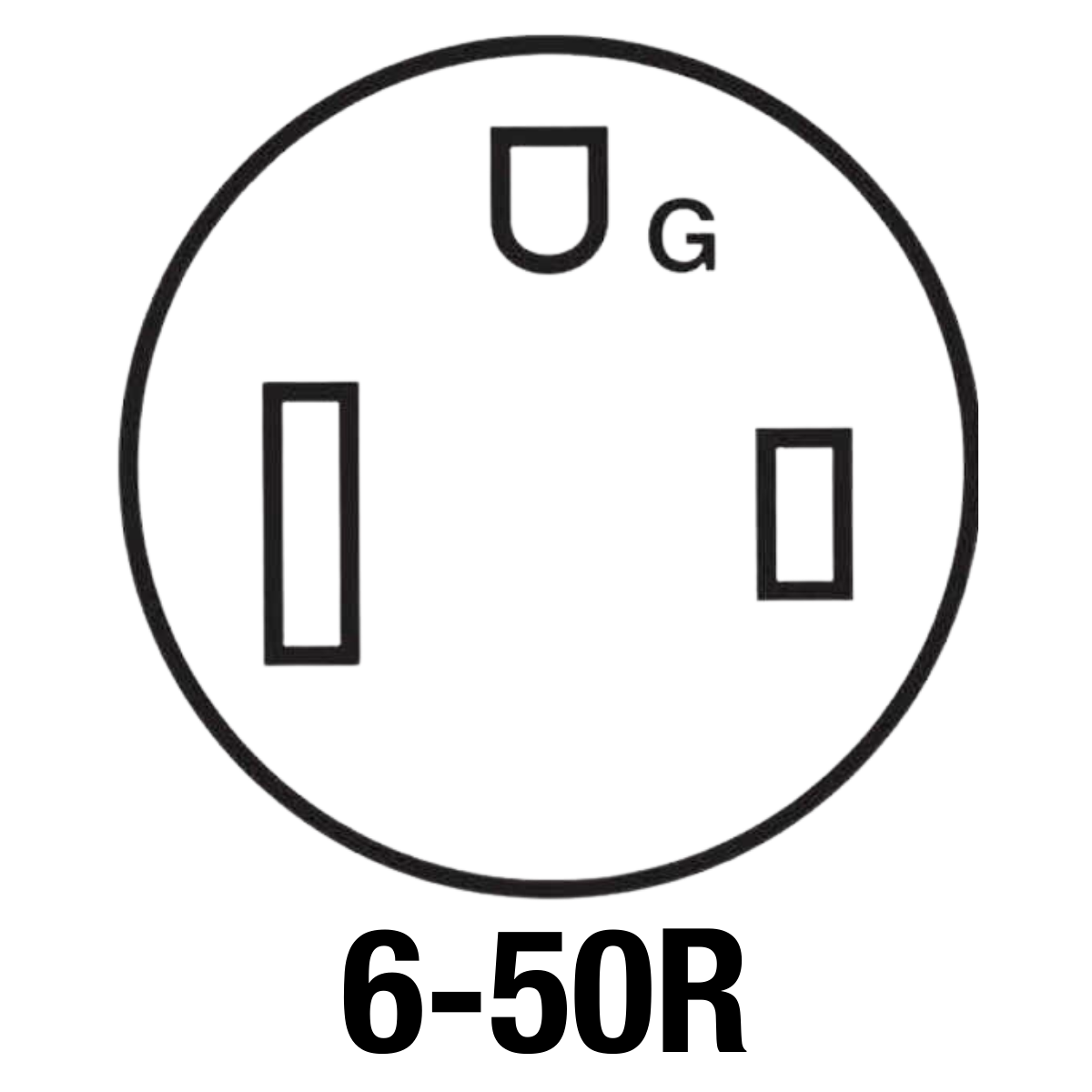

|Voltage:||208 / 240 volts|
|Amperage:||30 / 26 amps|
|Ship Wt:||250# (Freight)|
- FREE SHIPPING in the contiguous US!
- 3-Key Digital Bartlett Controller
- Peephole Plugs
- Pilot Light
- Attached Stand
- Stainless Steel Jacket
- Mechanical Relays
- Instruction Manual
- Two-year warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

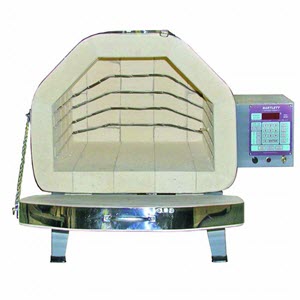

The Olympic 1414FLE's front-loading feature allows easy access while the kiln is hot and a vent hole in the top of the firing chamber allows for the escape of wax and other vapors when the kiln is being used for wax burnout.

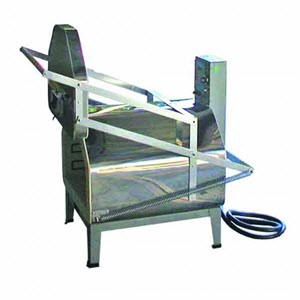

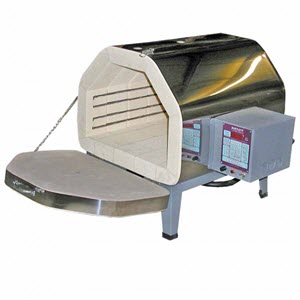

Guillotine lift or bottom-hinged door provides easy access for placing pieces in or out of the kiln.
Why Upgrade from Mechanical Relays to Solid-State Relays?
Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced. Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years. Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times. Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced. You will notice that solid-state relays are silent. The only sound you will hear is just the reassuring hum of the heating elements. So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself. We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.
Check out the Olympic Kilns Electrical Parts Kits... never experience downtime again because you didn’t have a part on hand!
