Jen-Ken Kiln - Vertical Air Bath EDC -

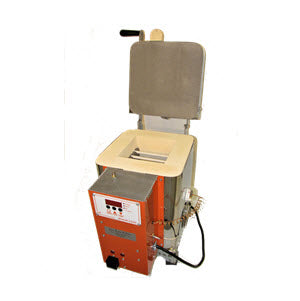

Jen-Ken Kiln - Vertical Air Bath EDC

$ 1,165.50 $ 1,295.00

Model: Jen-Ken Vertical Air Bath EDC
Inside Dim: 6 (width) x 11" (depth)
Max Temp: Fires to 2200° F
Voltage: 120 volts
Amperage: 15 amps
Watts: 1800 watts
Receptacle: 5-15R
Ship Wt: 75# (freight)



  • FREE SHIPPING in the contiguous US!
  • 3-Key Digital Orton Controller
  • Cool Touch Reversible Lid Lift Handle
  • Reinforced Ceramic Baffle Rods
  • Suspension Spring Holders and Pin Hangers
  • Loud Alarm
  • Power Interrupt Lid Switch
  • Instruction Manual
  • 2-Year Limited Warranty

Go VERTICAL like the Pros... Introducing the Revolutionary Vertical Air Bath Heat Treating Oven!

***NEW*** ALL controller choices are pre-programmed with schedules for 1084, 1095, 5210, 5160, & 440C!

The Vertical Air Bath delivers unparalleled heat distribution as blades are suspended vertically inside the chamber delivering 360°of uniform heat!  This unique top-loading design with upright blade suspension helps reduce internal stress and prevents warps.

The refractory brick chamber of the Vertical Air Bath is heated from above and below the specially designed baffle with coils in both the body and lid. This dual heating combination is ideal as it provides quicker interior heat recovery. As you open the lid, the standard power-interrupt switch automatically de-energizes the coils allowing you to safely reach in to remove your blades. Plus, the configurable baffle design and large chamber allow blades of all shapes and sizes to process together!

Vertical Air Bath Features

Suspension Spring Holders and Pin Hangers - Blades in the Vertical Air Bath can be suspended several ways.... either a pin through the tang, a spring clasped to the tang, or you can simply turn the tang sideways between the movable ceramic rods. Foil wrapped blades can also be suspended by passing the support pin through the foil sheet or via the spring clasp method. This versatility allows the vertical suspension format to be used with almost every heat treating technique.

Lid Lift HandleOne of our favorite features of the Vertical Air Bath is the reversible, cool touch handle. When standing to the side of the oven, the lid of the Vertical Air Bath can be easily lifted without a blast of heat. The blade can then be removed quickly allowing for minimal heat loss and ease of use.

Digital Controller - All Vertical Air Bath models come standard with a 3-button AF3C Controller loaded with the most popular normalizing, tempering, and heat treatment schedules. Upgrades to a 12-button controller for ease of programming or the popular TAP smart touchscreen controller, are also available.
