Description
| Model: | Paragon Janus24 |
| Dimensions Inside: | 24" (width) x 22.5" (depth) x 15" (height) |
| Dimensions Outside: | 40.5" (width) x 32" (depth) x 29.5" (height) |
| Shelf Size: | One (1) 22" Square Shelf - NOT INCLUDED |
| Elements: | Top , Door and Side Element |
| Max Temp: | Fires to 2350° F |
| Voltage: | 240 volts |
| Amperage: | 45 amps |
| Watts: | 10,080 watts |
| Receptacle: | 6-50R |
| Shipping Weight: | 425# (Freight) |
Includes:
- FREE SHIPPING in the contiguous US!
- Sentinel SmartTouch Controller
- On/Off Door Safety Switch
- 3” Insulating Refractory Firebrick Walls
- Steel Floor Pan supports Brick Bottom
- Glass / Pottery Selection Switch
- Instruction Manual
- One-year Limited Warranty
- Sidewall elements in dropped, recessed brick grooves are easy to replace.
- Two Peepholes on the left kiln wall
- 1-Year Limited Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

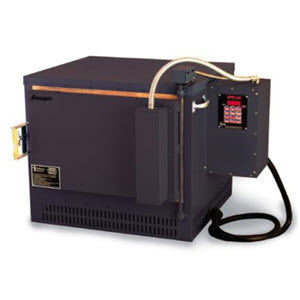

The Janus24 digital kiln heats from the top, three sides, and door for unsurpassed heat distribution.
Select between glass and pottery with the flip of a switch. With the switch in the glass position, heat comes from the top elements and the middle sidewall element. With the switch in the pottery position, heat comes from only the sidewall elements.
In the glass mode, fuse and sag large glass projects placed on a single shelf. In the pottery mode, fire to cone 10. You can also fire several shelves of smaller glass pieces in pottery mode.
Advanced element grooves
The elements in the roof are mounted in a firebrick “ball” groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins. The groove dissipates heat efficiently.
Wires are fastened to the elements with heat-dissipating connectors refined and proven over many years in Paragon kilns. Elements are coiled from the finest high-temperature wire available.
Optional mercury relay
If you need to anneal glass for extended periods in your Janus24, purchase the optional mercury relay upgrade. Mercury relays, which are found on our large industrial kilns, outlast mechanical relays. The life of the quiet, reliable mercury relay has been measured in millions of on/off cycles.
Heavy duty components
The insulating firebrick, wrapped in heavy-gauge steel, soak up the heat for slow, efficient cooling. A double heat shield and an air gap between the kiln and ventilated switch box help keep electrical components cool for long, trouble-free service. Costly heavy-gauge nickel-plated copper wiring is covered with high temperature glass-braided insulation. font>
The spring-pressure latch and a ½" recess around the edge of the firebrick door keep the door tightly closed. The door remains rock-steady on a heavy hinge shaft. Four hand lifts aid moving. The base is open in the back and slotted to dissipate heat.
Thermocouple with “special limit” wire
The thermocouple senses temperature inside the kiln. It is the small rod that extends into the side of the firing chamber. The Janus-24 comes with an exposed-tip thermocouple made with special-limit wire for superior accuracy. The new and improved thermocouple replaces our earlier sheathed thermocouple. The new thermocouple is made in America to our exacting standards.
Two peepholes
Watch the red-hot glass through two tapered peepholes, drilled one above the other in the wall opposite the switch box. Peephole plugs are included.
Door safety switch
The kiln includes a door safety switch that turns off the elements when the door is opened. The controller remains powered and automatically resumes firing when you close the door.
