PRODUCT DESCRIPTION

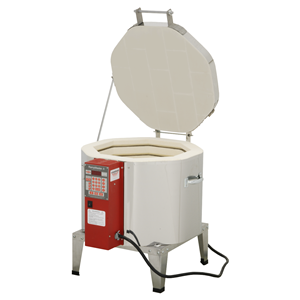

Small, personal porcelain and ceramic studios delight in the HF 1813. Porcelain artists find its size large enough for even the largest dolls while offering the space for limited classroom use. The casual ceramic artist likes its small footprint and capable performance. The HF 1813 is designed to fire ceramic materials up to 2350°F (1288°C), cone 10 on a daily basis.

The HF 1813 is the finest automatically controlled, small porcelain and ceramic kiln available. Available with our TAP Touchscreen, Rampmaster II or Icon controls.

Product Specifications

Model:	Evenheat HF 1813
Inside Dim:	17.5" (width) x 13.5" (depth)
Outside Dim:	29.75" (length) x 23.5" (width) x 27.5" (height)
Shelf Size:	15.5" Octagonal Shelf - NOT INCLUDED
Max Temp:	2350° F, Cone 10
Voltage:	240 volts
Amperage:	21 amps
Watts:	5040 watts

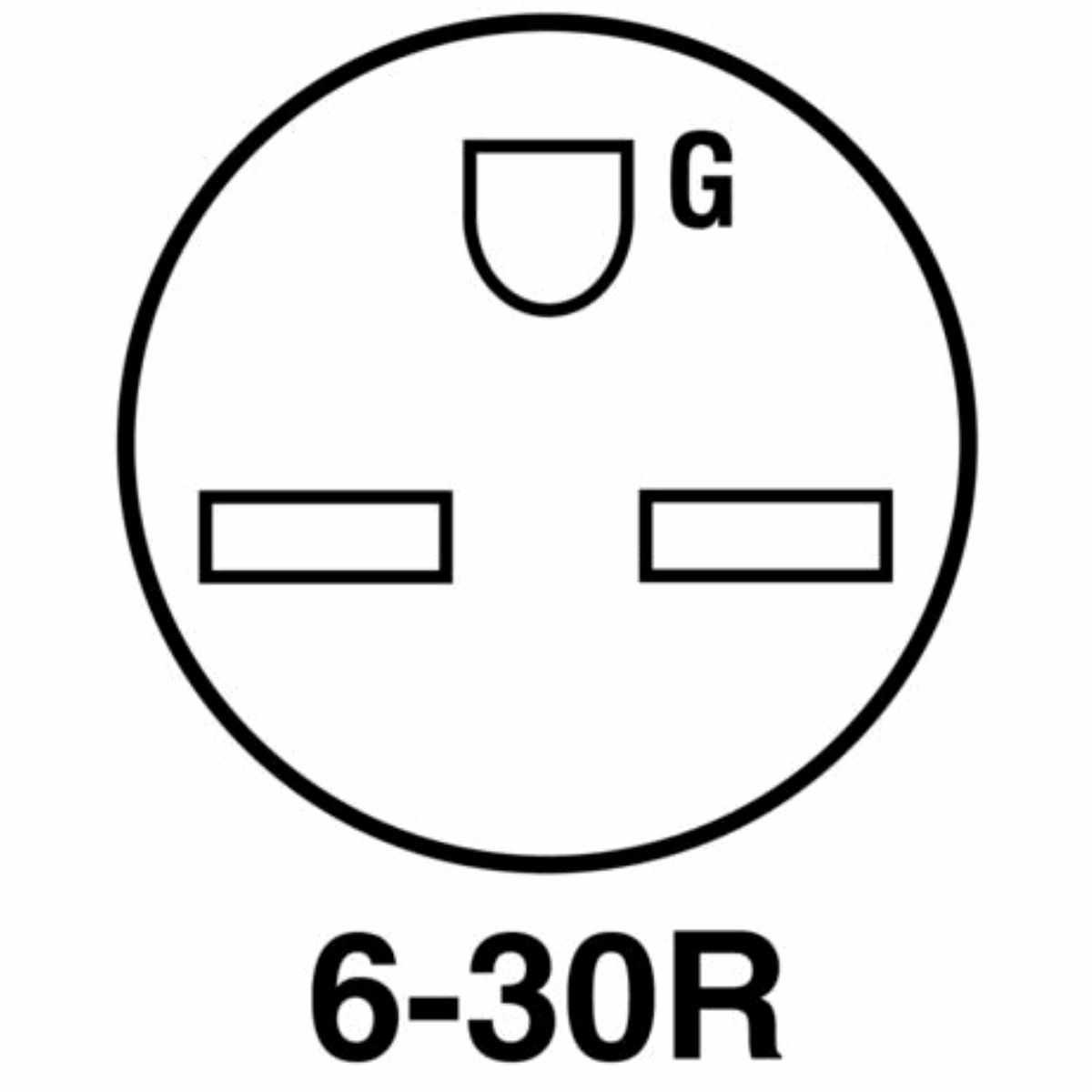

Receptacle:	6-30R
Ship Wt:	150# (freight)

What's Included

FREE SHIPPING in the contiguous US!
Icon Basic Touchscreen Controller
2 Position Lid Vent
3" Brick Construction
Corner Mounting Technique
Excellent Temperature Distribution
Full Stainless Jacket
Lid Security Bar
Properly Designed Stands
Multiple Control Options
Swing Away Peephole Cover
Wonderful Lid Handle
Mechanical Relays
2-Year Limited Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

Key Information

Top Load

The HF 1813 is a top loading design and offers a chamber 17.5" diameter x 13.5" deep. The 17.5" chamber is the preferred minimum diameter for
ceramic work.

Wonderful Lid Handle

We love handles. Handles have to be properly sized and shaped for the job. Our lid handles make this point by offering an 8" handle that's easy to grasp and operate. These wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It's unlike any other and it's a joy to use.

2 Position Lid Vent

The H 1813 is equipped with a 2 position lid vent. Perfect for speeding up the cooling process.

Swing View Equipped

The HF 1813 temperature controls are fitted to our Swing View Adjustable Enclosure.

The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's
that simple.

The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.

3" Firebrick with No Loss of Chamber Volume

Historically kiln designs were based on 2-1/2" firebrick. As 3" firebrick began to show favor in high temperature designs many kiln manufacturers simply
reduced the firing chamber size to accommodate the thicker firebrick while leaving the outside dimensions the same. At Evenheat we took a different direction. Instead of making the chamber smaller we kept it the same while increasing the outside dimensions. In
this way there is no loss in chamber volume and common, standard kiln furniture would continue to fit.

Swing-Away Peephole Covers

Our kiln designs feature swing-away peephole covers as opposed to plugs. Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.

Lid Prop

The HF 1813 is provided with a lid prop bar that positively keeps the lid in the open position. Simple operation is made even easier with our well designed lid handle.

Relay Access Port

The HF 1813 incorporates our Relay Access Port for simple, no-panel-off relay replacement. Simply
remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a
screwdriver!

It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Full Stainless Steel Jackets

Multi-section, multi-jacketed kilns were conceived to lower production costs for the kiln manufacturer and to make life easier for the person installing the kiln. These are worthy goals but they come at the cost of kiln quality. It's a trade off we're not willing to make.

We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.

Options:

Multiple Control Options

The HF 1813 is available in a variety of controls including the Icon, Icon+, Tap II and Rampmaster II. At
Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.

Quiet Drive Solid State Relay Option

The HF 1813 is available with our Quiet Drive Solid State Relay option. Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. We fully expect our solid state relay to last the life of the unit. You want
this!

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced. Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years. Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times. Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced. You will notice that solid-state relays are silent. The only sound you will hear is just the reassuring hum of the heating elements. So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself. We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

About the NEW Icon Basic Touchscreen Controller...

The Icon basic touchscreen controller is built around Bartlett's new Spark platform and brings touchscreen design to the market at a lower price point. The Icon / Spark was rigorously field-tested by Bartlett, Evenheat and others over the latter course of 2023. Programming was found to be clean and simple. User interaction with the display was deemed excellent. As expected, the Quiet Drive Solid State relay performed beautifully. In the end, victory. As with other Evenheat control designs, the Icon adds to the existing Spark control platform with improvements like Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for excellent Wi-Fi reception for the Bartlett on-line App. The Icon brings outstanding value and performance to the marketplace. **Kilnfrog Note: This is not the same controller as the Genesis-Mini which is the smaller version of the Icon+/Genesis 2.0 Controller. The Icon Basic, although it is a touchscreen, is a basic controller that does not have the same functionality as the Icon+ or the TAP controllers.

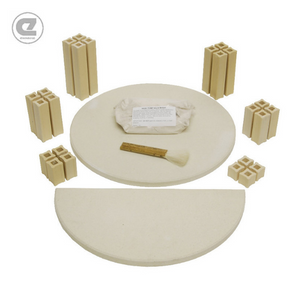

Looking to replace a worn-out or broken shelf? Enhance your firing experience with our custom shelf kits tailored for the Evenheat Kiln - HF 1813 - Order 15" Hexagon Full Shelf Kit, 16" Hexagon Full & Half Shelf Kit, or 16" Hexagon Full & Half Shelf Kit (Junior Version) now!

Warranty Benefits

Enjoy Peace of Mind

Simple, hassle-free product protection for the products you love.

Protection Plan Coverage & Benefits

Frequently Asked Questions:

All About Kilns

Plugs & Electricity

Maintenance

All About Kilns

What other features are important?

Kilns from every manufacturer are configured with features that allow for different types of functions. These features are available in fiber and brick models. Consider these options:

Top Load Kilns: Ideal for jewelry makers and projects involving powders and frit. Provides good visibility but may be challenging if you’re looking for a deeper kiln or have shorter arms.

Front Load Kilns: Suitable for tasks like enameling and hot manipulations. Offers control and less direct heat, but can be more expensive and require some lifting. This is also true for the weight on the shelf and placing it in front of you.

Clam Shell Kilns: Combines top and front loading, these types of kilns really delivers the best of both worlds; accessibility and free access to your shelf, in addition to ease of loading, and convenience, but may come at a higher cost.

Flip Doors (aka; Punty Doors, Bead Doors, Doggie Doors): Essential for preheating rods and quick bead placement. However, they may affect efficiency and temperature reach.

Windows (aka; quartz portholes): These are not the same as vent holes or peep holes. Optional quartz portholes for monitoring projects at peak temperatures, especially helpful for slumping, draping, or drop ring project. A window will also allow you to check the progress of a pot melt/aperture pour or screen melt.

What to consider when buying a kiln?

What kind of projects would you like to do?

The type, size, and kiln features you require are determined by the projects you choose. This covers things like firing techniques, loading systems, building components, voltage, controllers, and more. Your response may help to clarify your preferences, but you should also consider how well your preferences match with your current circumstances.

Where will you be locating the kiln?
The kind, dimension, and features of your kiln are influenced by where it is. Environment, power supply, safety, and space availability are all important considerations. Your desires might not always line up perfectly with the constraints of your surroundings, this is where we as artists must become creative problem solvers in an effort to overcome our environmental constraints.

We're here to support you. Please reach out if you need any additional advice!

Where should I place my kiln?

Here are some basic guidelines about locating your kiln:

Make sure you have adequate space... at least 12 - 18 inches of space between the kiln and the wall. (However, for operator comfort, allow room to walk around the kiln if maintenance is required.) It is recommended that the unit be placed on a stand on top of flame-resistant flooring like a cement floor or board.
Make sure the area is really clean - remove all flammable or combustible materials such as curtains, plastics, rags, paper, packing materials, etc. from the area surrounding the kiln.
Make sure the area is well ventilated – proper air exchange is necessary for you kiln to last a long time. Heat from the kiln and outside air can accumulate in restricted areas above both gas and electric kilns.
Make sure that the heat has somewhere to go, and is replaced by fresh cooler air. Set up a fan near the area, or open a window to ensure good air exchange. Check all local requirements or codes before installation.

IMPORTANT: Always read your owners manual and follow you kiln manufacturer's instructions.

Plugs & Electricity

What type of plug do I need?

Each kiln model described on our website will identify which of the following power supply receptacles is used with that model. They are identified by voltage and amperage as well as the NEMA designation. Those described as "direct wire" do not use a receptacle, instead, they are permanently wired.

Maintenance

Care and Maintenance

Proper kiln maintenance is essential for preventing downtime and costly repairs. Here's a checklist to help you keep your kiln in top shape:

Before Every Firing:

Inspect: Check inside your kiln for any unwanted visitors, moisture, or debris. Ensure your pet-friendly area is clean to prevent odorous surprises.
Vacuum: Turn off the power and use a vacuum with a HEPA filter to clean the interior, removing dust and residue that could affect your glass during firing.
Clean: Remove flammable materials from the area around the kiln.
Inspect Elements: Ensure coils/elements are in place, free of debris, and securely fastened. Check thermocouples and tighten lid screws as needed.
Check for Cracks: Examine your shelf for cracks and address them to prevent issues during firing.
Power Up: Turn the power back on and ensure the kiln registers the correct room temperature.

Monthly Maintenance:

Lid Check Up: Periodically tighten the lid band as the lid expands and contracts during firings. Most kiln lids are manufactured with a protective coating on the "hot side" or inside. This coating was applied to optimize the heat insulation of the lid, as well as to prevent brick dust from falling into the kiln. Address cosmetic lid cracks, and for structural issues, consult the manufacturer during the warranty period. If you are in the warranty period, DO NOT ATTEMPT TO REPAIR THIS without calling the manufacturer, as this could void your warranty.
Body Check Up: The only things inside of your kiln should be your elements, pins, brick, kiln furniture/posts and kiln washed shelves. Remove any non-essential materials such as (glaze, slip, clay, glass, silica sand) from the sidewalls to protect them and the heating elements. Be cautious when using kiln cement to repair cracks, and contact the manufacturer if needed during the warranty period. If you are in the warranty period, DO NOT ATTEMPT TO REPAIR THIS without calling the manufacturer, as this could void your warranty.
Inspect Elements: Look for signs of wear such as rust, bulging, or thinning/thickening areas. Elements wear out with usage and may need replacement. If you find it necessary to change out your elements, make sure you speak to the manufacturer to determine the appropriate element size for your kiln. Please refer to your operator’s manual for the discussion and photo's of "Element Replacement".
Electrical Check Up: Regularly examine the power cable, receptacle, and plug for discoloration, heat, corrosion, or loose connections. Address any electrical issues promptly, and consult the manufacturer if needed, especially during the warranty period. If you are in the warranty period, DO NOT ATTEMPT TO REPAIR THIS without calling the manufacturer, as this could void your warranty.

Regular maintenance will help your kiln perform efficiently and extend its lifespan.

What are Safety Precautions?

Kilns are as safe as any other electrical appliance when used under normal and proper operating conditions. All kiln safety precautions should always be observed.

Use common sense while installing and using your kiln.
Do not install your kiln closer than 12" from any surface, or closer than 18” from a combustible surface. Remove all potentially combustible materials from the kiln area.
Make sure all electrical specifications are followed. Use correct voltage, wire size and circuit breaker. Make sure all connections are tight. Avoid using aluminum wire. Always use the proper grounded receptacle. A qualified electrician or service person should be used for all electrical service or repairs.
Install in covered, walled in, well-ventilated area. Fumes from the ware should be vented to the outside.
Avoid moisture. Do not allow your kiln to get wet. Never use your kiln outside!
Always keep children and unsupervised personnel away. Surface will get hot and a burn could result.
Fire glass only to the manufacturers recommended firing temperature. Improper fire temperatures could result in damage to your kiln. Do not operate glass kilns over the maximum temperature rating.
Replace any worn or defective parts with ONLY genuine replacement parts.
Unplug kiln when not in use and if there is an electrical storm.
Unplug the kiln before servicing or vacuuming.
Do not drop or slam the lid shut.
Let the kiln cool to room temperature before opening the lid.
