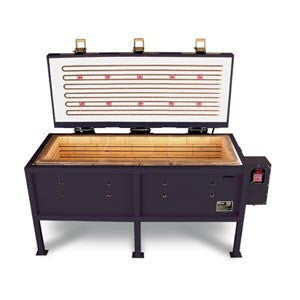

The deluxe GL-64ADTS Professional Series glass kiln will help you to unlock your potential as a glass designer. This professional kiln quickly pays for itself by producing large glass panels, curved windows, lampshades, or production loads of small pieces. The GL-64ADTS is proudly made in America by skilled workers. It is designed for those whose livelihood depends on glass production.
| Model: | Paragon GL64ADTS |
| Dimensions Inside: | 64" (length) x 22" (width) x 16" (depth) |
| Dimensions Outside: | 76" (width) x 28" (depth) x 40" (height) |
| Shelf Size: | 20” x 60" |
| Elements: | Top and Side Elements |
| Max Temp: | Fires to 1700° F |
| Voltage: | 240 Volts |
| Amperage: | 69 Amps |
| Watts: | 16,500 Watts |
| Receptacle: | Direct Wire |
| Shipping Weight: | 1,150 lbs. (Freight) |
Power ratio elements in the lid and walls for even heat distribution
The 16” depth is ideal for glass sagging. The sidewall heating elements, mounted in all four sides, offer greater control of sagging and bending. The kiln uses advanced power ratio technology, pioneered by Paragon, to balance the heat between the top and side elements. Program the digital controller to balance the heat between the top and sides in increments of 10%. (i.e., 100% top - 0% sides, 50% top - 50% sides, 80% top – 20% sides, etc.) Set the heat balance for any combination desired between the top and sides so that the total heat output equals 100%. Imagine the precise control you will have in adjusting the kiln to slump glass or to improve heat distribution over large fused panels.
Spring-assisted lid is easy to lift
The massive lid is easy to lift with Paragon's patented LiteLid spring counter-balance, which does away with cumbersome pulleys and cords and dramatically reduces lid weight. Unlike pulleys and weights, the LiteLid is self-contained on the kiln. There is no need to drill holes in the ceiling for pulleys. The LiteLid sharply reduces wear between the lid and top rim of firebrick. The truss and floating lid allow expansion of the lid. The GL-64ADTS comes with three LiteLid assemblies. The lid is insulated with 1” ceramic fiber and 3” ceramic fiberboard. Replaceable heating elements mount in lid fiberboard grooves. The groove eliminates element pins since the element coils are wider than the groove opening.
Heavy duty case
2 1/2” insulating firebrick lines the walls and bottom. A welded 2" tubular steel frame reinforces the kiln for long life. We are so confident in the GL-64ADTS that we back it with a two-year warranty.
Paragon’s GL-64ADTS is made for years of rigorous firing. A double heat shield and air gap between the kiln and ventilated switch box help keep electrical components cool for long, trouble-free service. Costly heavy-gauge nickel-plated copper wiring is covered with high-temperature glass-braided insulation.
NOTE*** This kiln is delivered fully assembled. No assembly is required on site. Large capacity kilns require the customer to have a forklift that can move the kiln from the truck to the desired location. If you do not have access to a forklift, check the internet or yellow pages for small moving companies that can take the freight off the freight carrier and move the freight to the desired location. Give any prospective mover a physical description of the kiln and its weight, and inform them that it is designed to be picked up with a truck to a forklift only. It is your responsibility to move the freight from the truck to its place of use.
