Paragon Kiln - Fusion 8 - Kiln Frog

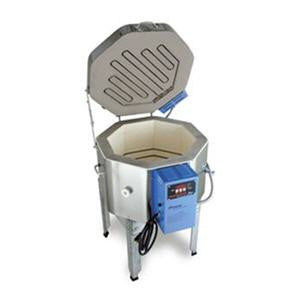

Paragon Kiln - Fusion 8

$ 1,159.78 $ 1,449.72

Model: Paragon Fusion 8
Dimensions Inside: 17.5" (width) x 11" (depth)
Shelf Size: 15 1/2” Octagon Shelf - NOT INCLUDED
Elements: Top and Side Element
Max Temp: Fires to 1700° F
Voltage: 240 volts
Amperage: 20 amps
Watts: 4800 watts
Receptacle: 6-20R
Shipping Weight: 158#



Includes:

  • FREE SHIPPING in the contiguous US!
  • Digital Sentry Xpress Controller
  • Heating elements in top of all models
  • Element groove that eliminates element pins
  • ¼” heavy duty sheathed Type-K thermocouple
  • 2 ½” insulating refractory firebrick in walls and bottom; 3” firebrick lid
  • Lock-in lid support
  • Full-formed galvanized steel base
  • Louvered switch box, heavy duty wiring
  • Tapered peephole with plug for a wide view

The Fusion-8 firebrick lid heating elements are seated in pinless grooves. A sidewall element, which is protected in recessed firebrick wall grooves, adds to temperature uniformity.

The standard insulating firebrick top can be upgraded to the optional deluxe ceramic fiber top. The fiber top is noted for keeping the kiln interior especially clean. Both tops have the same pinless element grooves.



18” Tall Stand, Galvanized Base Plate

An 18” tall stand comes standard with the Fusion-8. The stand raises the kiln to a comfortable height for loading and operation. A heavy galvanized steel base covers the reversible brick bottom completely. It folds up under the stainless case on all sides to strengthen the firing chamber. This is one more assurance that your Paragon kiln is built to last.



Optional Glass Window

Many people consider the optional high-temperature glass 1” x 3” window to be indispensable. You can watch every stage of fusing and slumping, from softening, to tack fuse, to full fuse, through the window at your convenience. By watching the glass, even beginners can fine-tune a digital program for precise results. When you see the glass fuse the way you had envisioned, write down the temperature shown in the display for future firings.



Dual Mechanical Relays

The Fusion-8 has dual mechanical relays for extra reliability. They send power to the elements on the signal from the digital controller. Two relays last longer than the single relay of some competitive kilns because less amperage goes through each relay.



Optional Deluxe Mercury Relay

Order your new kiln with the quiet, reliable mercury relay instead of the standard mechanical relays. The life of a mercury relay has been measured in millions of on/off cycles. Mercury relays far outlast the standard mechanical relays and are optional on new kilns.



Sheathed Thermocouple

The thermocouple senses temperature inside the kiln. The Fusion-8 comes with the ¼” Type-K, which is hermetically sealed in a high-nickel metal sheath for long life.



Kiln Comes with Heavy Duty Rolling Stand, 18” Square x 18” High

A deluxe kiln stand with locking casters is included with the kiln. Enjoy the convenience of rolling the kiln out of the way when it is not in use. The stand is rock solid. It fits together with interlocking components that assemble with one size of bolt. (Ships unassembled.)

The 18” tall stand raises the kiln to a convenient height for loading and unloading. Should you need a vent, merely slide the collection cup of an Orton vent into a mounting bracket on the top of the stand.
