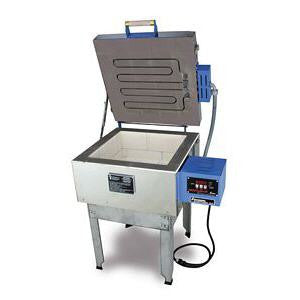

Paragon’s square Fusion-16 digital glass kiln operates on a 120-volt outlet and, its square firing chamber makes it ideal for fusing glass tiles.The Fusion-16 heats from the top for even heat distribution across the glass surface. The lid elements are mounted in pinless element grooves. The elements do not need pins, because the element coils are wider than the groove opening.
| Model: | Paragon Fusion 16 |
| Dimensions Inside: | 16" (length) x 16" (width) x 6.5" (depth) |
| Dimensions Outside: | 29.5" (width) x 24" (depth) x 34.5" (height) |
| Shelf Size: | 14.5” x 14.5” x 5/8” Shelf - NOT INCLUDED |
| Elements: | Top Element |
| Max Temp: | Fires to 1700° F |
| Voltage: | 120 volts |
| Amperage: | 20 amps |
| Watts: | 2400 watts |

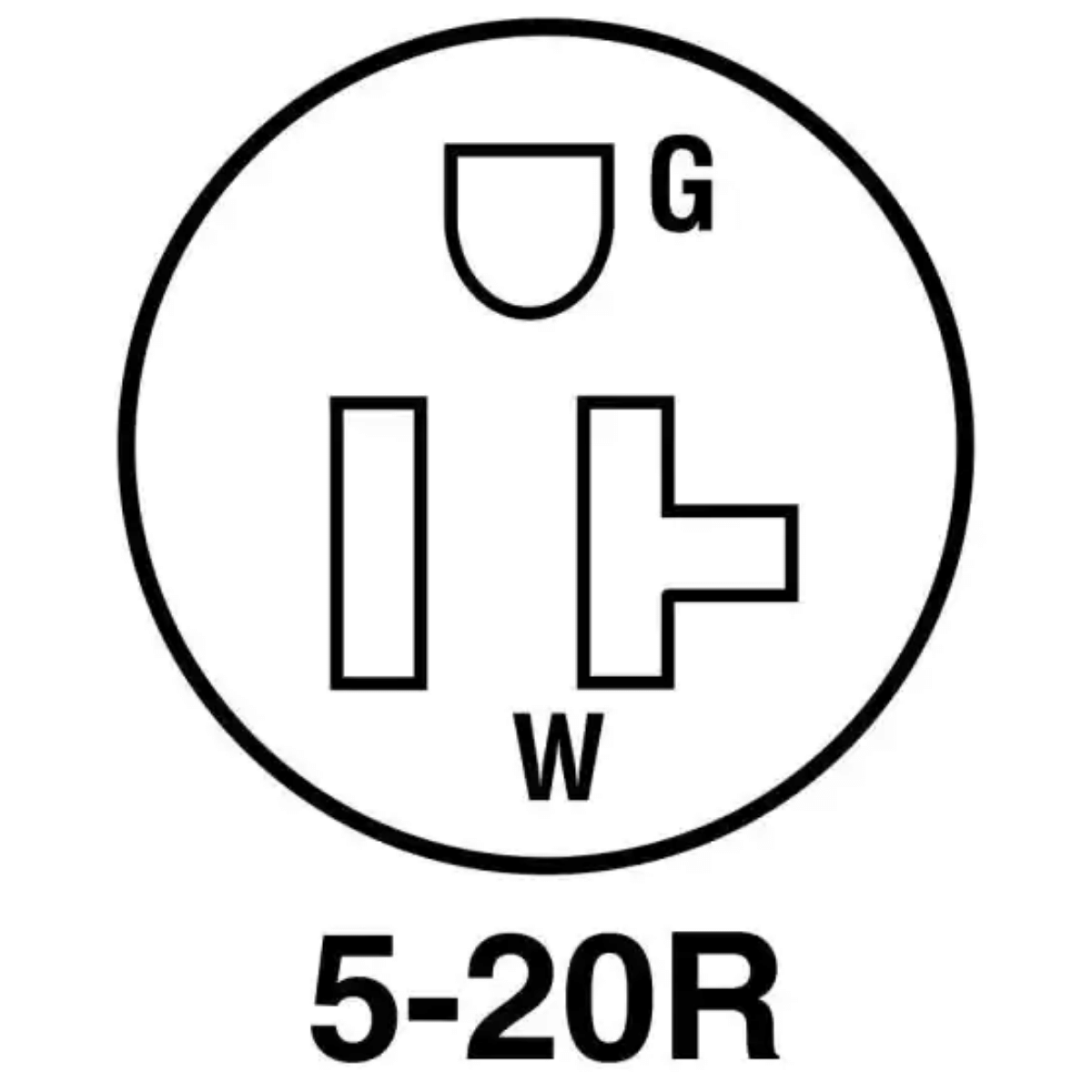

| Receptacle: | 5-20R |
| Shipping Weight: | 196# (Freight) |
*** This kiln is 120v but, requires a 5-20R DEDICATED CIRCUIT. Learn more about dedicated circuits HERE! ***
Optional Ceramic Fiber Top
The standard Paragon Fusion-16 kiln comes with an insulating firebrick top. You can also upgrade your kiln with the optional deluxe ceramic fiber top, which also has pinless element grooves. The fiber top helps keep the kiln interior even cleaner. The fiber lid is a result of our search for better ways to make kilns.
Reliability at the Heart of the Kiln
The Paragon Fusion-16 kiln has a two-year warranty. The temperature sensor, called a thermocouple, is covered with high-nickel stainless steel sheath for long life. A heavy steel base supports the reversible brick bottom. These features are an extra assurance that your Paragon kiln is built to last. No extra stand is needed.
The reliable Fusion-16 has two mechanical relays for long life. (The relays turn on the heating elements after receiving a signal from the digital controller.) The two relays in the Paragon Fusion-16 kiln last longer than the single relay of competitive kilns, because less amperage goes through the dual relays of the Fusion-16.
In addition, you can order the mercury relay upgrade for your new kiln. The mercury relays are ordinarily found only on industrial kilns. The life of the quiet, reliable mercury relay has been measured in millions of on/off cycles.
Convenient Features
For your convenience, flip the switch on the front panel to turn off power to the controller when the kiln is not in use. The large, comfortable wooden lid handle stays cool.
An 18” tall stand comes standard on the Fusion-16. This stand raises the kiln to a comfortable height for loading and operation.
The Fusion-16 control box has a durable high temperature, water-based finish. We chose water-base paint because of the low emissions during spraying. This creates a safer working environment for our employees and cuts down on pollution.
Optional Glass Window and Bead Door
Beginners and even experts love the optional high temperature 1” x 3” glass window. Watch every stage of fusing as your pieces begin to glow orange and then progress from tack fuse through a full fuse. Watch the glass to fine-tune a digital program. (Always wear firing safety glasses, available from Paragon, while watching the glass through the window.)
You can even anneal glass beads with your Fusion-16. Order the optional bead door, which mounts to the front of the kiln. Use your kiln to safely cool even large, ornate beads through the annealing range.

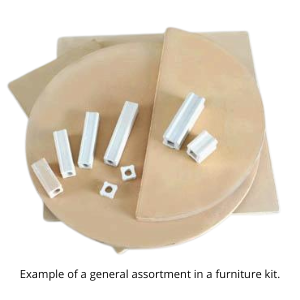

Looking to replace a worn-out or broken shelf? Enhance your firing experience with our custom shelf kits tailored for the Paragon Kiln - Fusion 16 - Order 12" Square Full Shelf Kit now!
We received the kiln, stand and shelving, along with really good instructions. In no time everything was assembled and running flawlessly. We are especially happy with the touch controller, which makes entering, monitoring and changing programs a breeze. I had one support question regarding adding venting, which they were able to answer immediately.
Hi Regina,
We are so happy to hear everything went so smoothly. We hope you create amazing pieces of art with this kiln! Thanks for sharing your feedback! We appreciate your input. If you have more details or suggestions, feel free to reach out at customerservice@kilnfrog.com or via phone 361-596-3764.
Very good. Easy to use.
Thanks for sharing your feedback! We appreciate your input. If you have more details or suggestions, feel free to reach out our customerservice@kilnfrog.com or via phone 361-596-3764.
My Paragon 16 runs hot, and it's been hard to figure out successful firing schedules. Maybe it's because the fiber lid I got changes the way heat is absorbed, or maybe it's just one of those things, since I have heard from other Paragon owners that they've had the same experience. After doing several test tiles at different top temps, I finally figured out good high- and low-profile contour schedules. I'm still working on a full fuse schedule--thought I had it on the second test tile, but a full load didn't quite flatten completely. I haven't tried slumping yet. This is my first kiln, and all the trial and error got me down so I haven't touched it for a while, but I'm ready now to get back at it again.
Your insights matter. Thanks for your feedback! Share more thoughts or suggestions by emailing us at customerservice@kilnfrog.com or calling 361-596-3764. We're here to make your experience exceptional. Looking forward to hearing from you!
Kiln was shipped quickly and arrived in perfect condition. This is the second kiln I have purchased from Kiln frog and will definitely use them again.
Thanks for your feedback! Your insights are valuable. Share more thoughts or suggestions via email at customerservice@kilnfrog.com or call 361-596-3764. Your input enhances our service. Looking forward to hearing from you!
Using the kiln had been great so far after a few months. I didn't get the instructions for the 12-key controller, but figured it out and found a guide online. Customer service has been quick to respond with any concerns I've had. I think the only thing I would have done differently is getting the fiber lid instead for cleanliness (some brick has crumbled and landed on a couple pieces). The kiln does run a little warm, so I've had to back off the full fuse temp 30-40 degrees, but every kiln is different, too. Would not hesitate recommending this kiln for small projects and new fusers!
Thanks for your review! We value your input. If you have more to share, contact us at customerservice@kilnfrog.com or via phone 361-596-3764.
