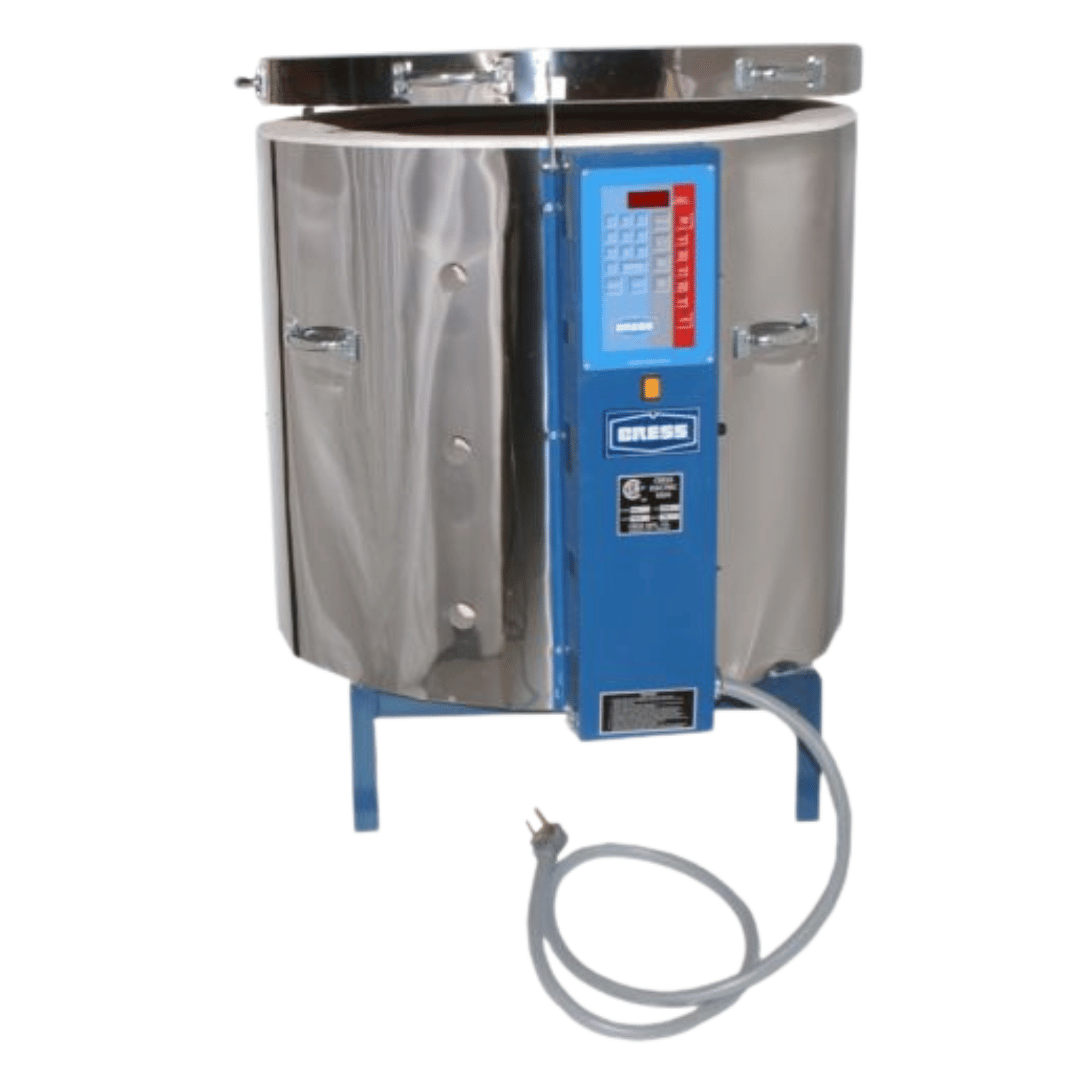

| Model: | Cress Kilns - ET28 |
| Inside Dim: | 28.13" RD (width) x 27" (depth) |
| Outside Dim: | 40" (depth) x 35.5" (width) x 42" (height) |
| Brick Thickness: | 3" in |
| Max Temp: | 2350°F, Cone 10 |
| Voltage: | 240V / 208v |
| Amperage: | 48 A / 17+38 A |
| Kilowatts: | 11.5 kW / 11.5 kW |
| Frequency: | 50 / 60 Hz |
|
Certification: |
CSA and UL Std 499 |
| Amp Fuse Size: | 60 / Local Code |
| Short Wire Size: | 4 / Local Code |

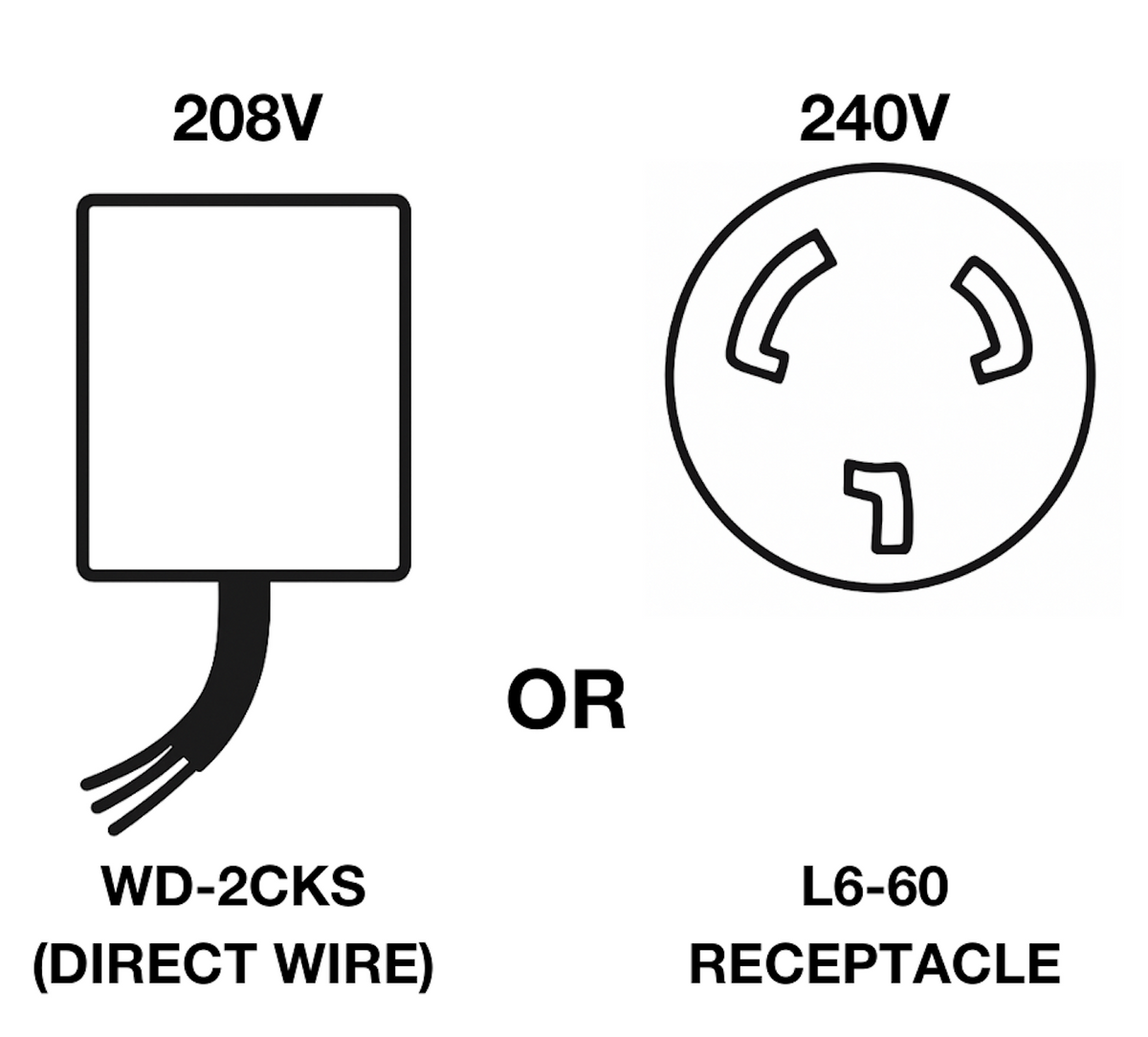

| Receptacle: |
L6-60 / WD-2CKS (Direct Wire) for 208V |
| Shipping Weight: | 400# (Motor Freight) |
![]()
