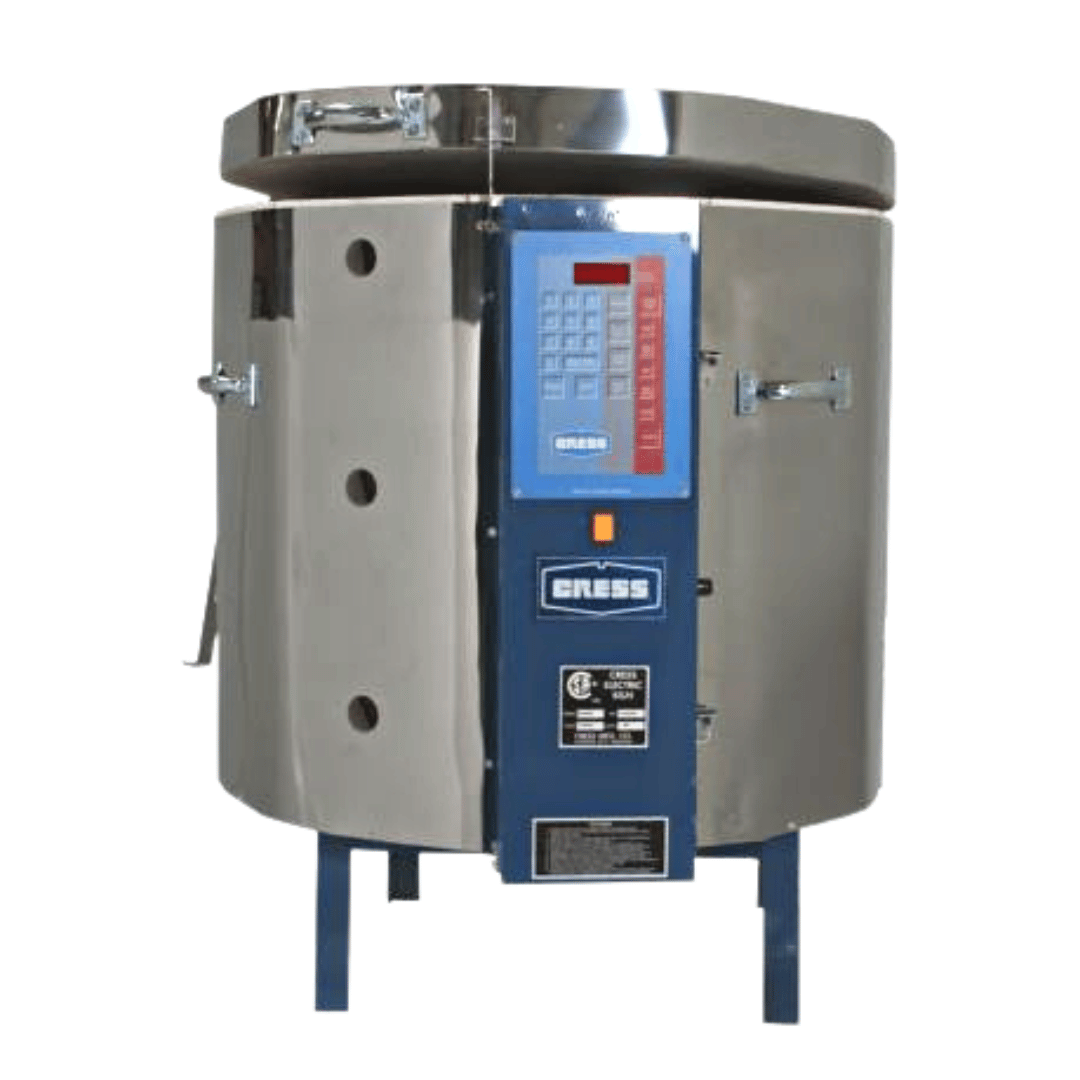

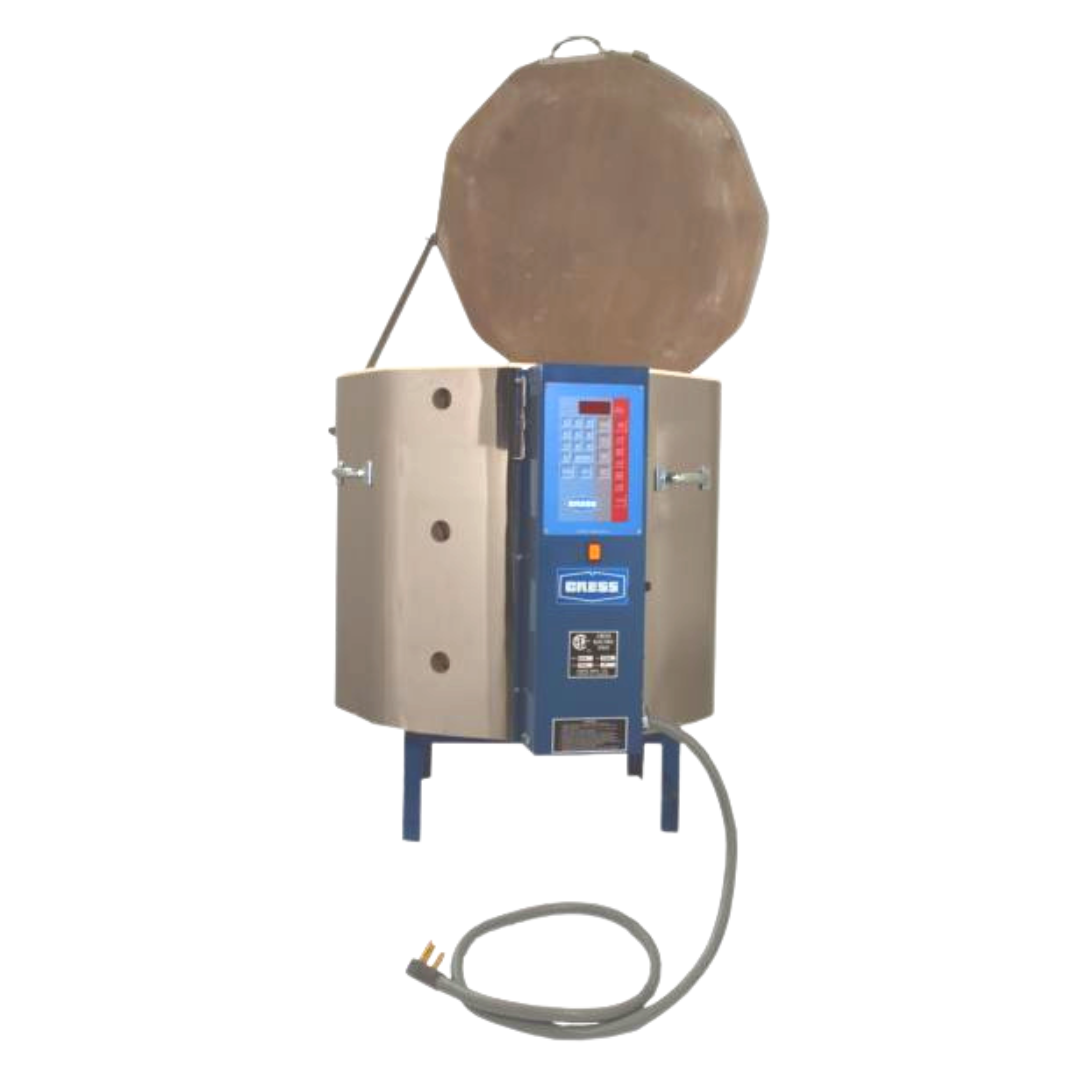

| Model: | Cress Kilns - E24HP |
| Inside Dim: | 23.38" Oct. (width) x 22.5" (depth) |
| Outside Dim: | 35" (depth) x 30.5" (width) x 37.5" (height) |
| Brick Thickness: | 2.5" in |
| Max Temp: | 2350°F, Cone 10 |
| Voltage: | 240V / 208v |
| Amperage: | 48 A / 29+24 A |
| Kilowatts: | 11.5 kW / 11 kW |
| Frequency: | 50 / 60 Hz |
|
Certification: |
CSA and UL Std 499 |
| Amp Fuse Size: | 50 / Local Code |
| Short Wire Size: | 4 / Local Code |
| Receptacle: |
6-50R / WD-2CKS (Direct Wire) |
| Shipping Weight: | 245# (Motor Freight) |
![]()
