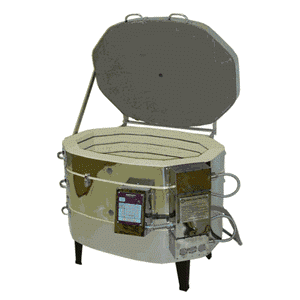

Olympic Kiln - DPF 2018HE

Inside Dim: 30" (width) x 20" (depth) x 20" (height) * - 5.85 Cubic Feet
Outside Dim: 41" (width) x 40" (depth) x 40" (height) *
Brick Thickness: 3"
Max Temp: 2350°F
Voltage: 240 volts
Amperage: 42 amps (Single Phase) / 28 amps (3 Phase)
Watts: 8,600  watts

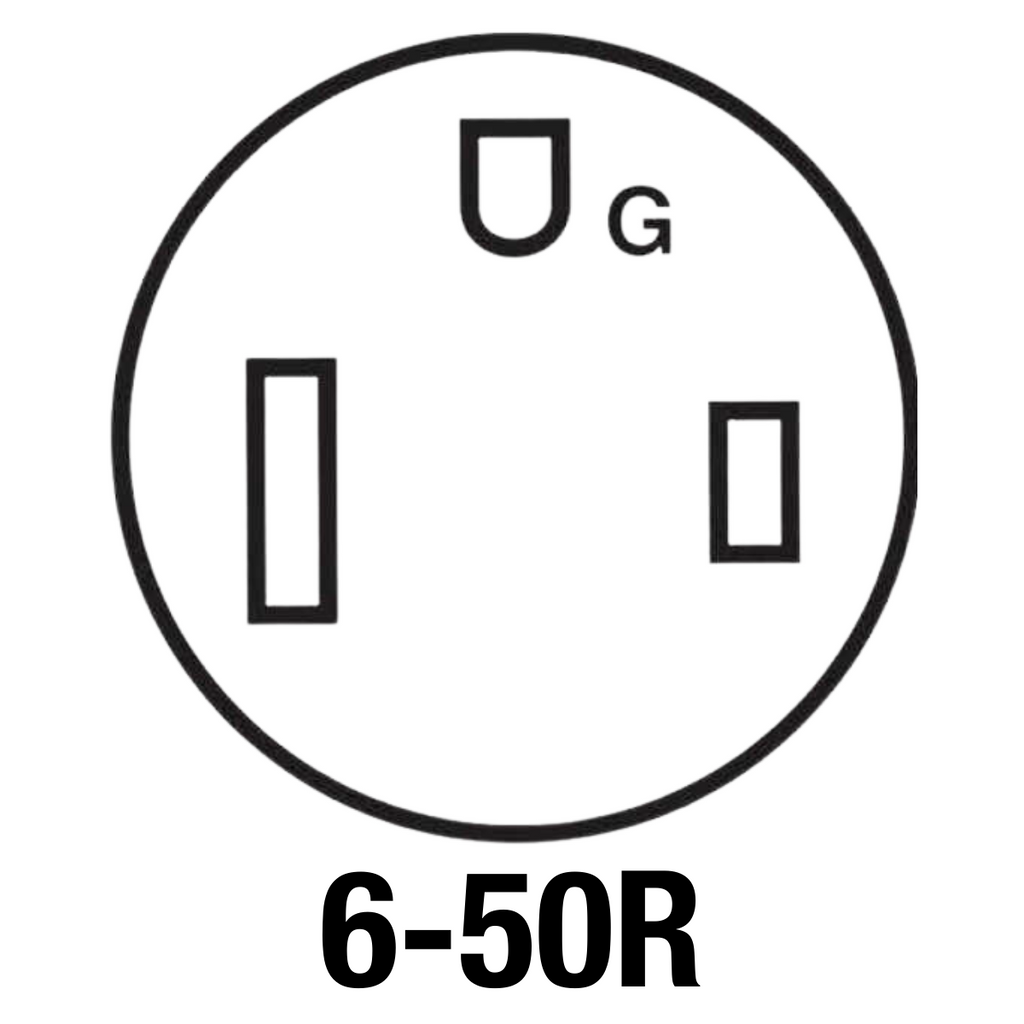

Receptacle: NEMA 6-50 (Single Phase) / Direct Wired (3 Phase)
Ship Wt:  330(Freight)


DPF 2018HE Thermal Cleaning Package Includes:

  • FREE SHIPPING in the contiguous US!
  • Bartlett V6-CF 12-key Controller
  • Peephole Plugs
  • VentMaster Downdraft Vent System
  • Mechanical Relays
  • Instruction Manual
  • One-year limited warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)
  • * Width refers to the side to side measurement, depth to the front to back measurement, and height to the bottom to top measurement of the kiln.

A clogged DPF equals higher fuel and maintenance costs for diesel vehicle operators. In order to ensure that the optimum level of performance is maintained, DPFs must be thermally cleaned regularly, a washout just isn't enough!

This front loading, high volume, DPF electric model comes equipped with pilot light, welded heavy angle iron frame, stainless steel jacket, a 12-key digital Bartlett V6-CF Controller and a VentMaster Downdraft Vent System.

The Bartlett V6-CF Digital Controller gives you the freedom to create up to six, 8-step user programs. Other features include delay start, preheat, alarm, cone adjustments, thermocouple adjustments, °F or °C operation, 16 segment program, and skip step.

As an option, you can upgrade to the Genesis Controller, a modern and intuitive user platform with touch-screen technology for an effortless user interface. It can store up to 12 custom user programs with up to 32 segments per program and has the ability to make adjustment during a firing such as add segments, add temperature, and skip segments. Additionally, the easy-to-follow screen descriptions and graphical display of the firing process, allow the Genesis controller to make firing kilns extremely straightforward.

During operation, the VentMaster Downdraft Vent System keeps the kiln under a slight negative pressure. This pulls the fumes out of the kiln and pulls in a small amount of fresh air. Firing times are essentially the same. The fumes are exhausted directly into a duct system and removed from the kiln room. Improved airflow in the kiln results in more uniform temperatures, reducing hot and cold spots.

The DPF 2018HE is also equipped with its own breaker box for easy access, safety and lockout.


2018HE  240V
1 36 50 NEMA 6-50
2018HE 208V
1 41 60 NEMA 6-50
2018HE  240V
24 30 DIRECT
2018HE  208V
3 27 40 DIRECT

Whether you run a small diesel service garage or maintain a huge diesel fleet, you'll need to ensure you have the right tools for the DPF cleaning job! Our DPF Thermal Cleaning Units are solidly built and warrantied to provide years of flawless service helping you service your customers efficiently!

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.
