Olympic Kiln - HB86 Vitrigraph - kilnfrog.com

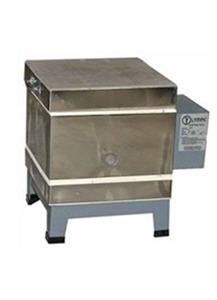

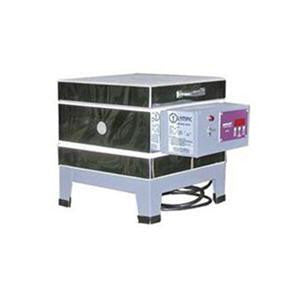

Olympic Kiln - HB86 Vitrigraph

$ 1,020.00 $ 1,200.00

Model:

Olympic HB86 Vitrigraph

Inside Dim: 8" (length) x 8" (width) x 6.5" (depth)
Outside Dim: 17.5" (width) x 13" (depth) x 16.5" (height)
Shelf Size: 6.5" Square Shelf - NOT INCLUDED
Max Temp:  Fires to 2350° F
Voltage: 120 volts
Amperage: 15 amps
Watts: 1800 watts
Receptacle: 5-15P
Ship Wt: 52# (UPS)



Includes:

  • FREE SHIPPING in the contiguous US!
  • 3-Key Digital Bartlett Controller
  • Peephole Plugs
  • Stand
  • Mechanical Relays
  • Instruction Manual
  • One-Year Warranty

The HB86P Vitrigraph fires to cone 10/2350°F with adjustable stand ranging in height 23" to 33" tall.

The HB86P Vitrigraph comes with 2 floors, 1 fiber & 1 cordierite - both floors with holes for stringers to flow through. A brick floor for firing the kiln during regular use slumping, fusing, jewelry making, testing, etc. can be purchased separately.

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

Check out the Olympic Kilns Electrical Parts Kits... never experience downtime again because you didn’t have a part on hand!
