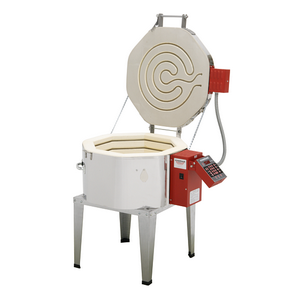

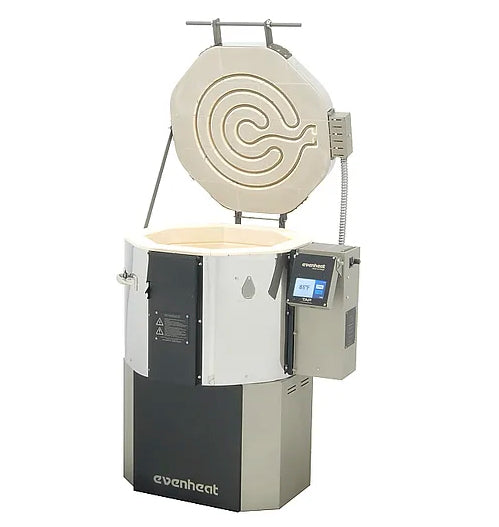

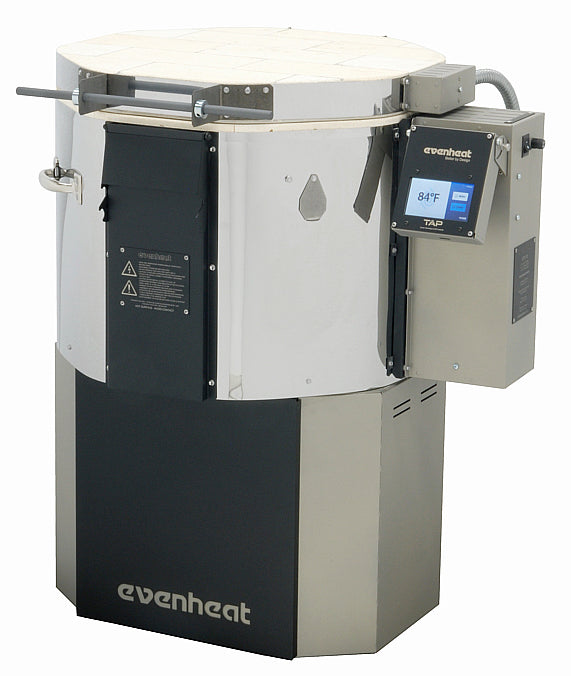

The GTS 18 is our smallest GTS model. It takes up less floor space yet performs with the same confidence and strength as our larger models.
Model: | Evenheat GTS 18 |
Inside Dim: | 17.5" (width) x 13" (depth) |
Outside Dim: | 22.5" (length) x 32.5" (width) x 26.5" (height) |
Shelf Size: | 15.5" Round Shelf - NOT INCLUDED |
Max Temp: | 1800° F |
Voltage: | 240 volts |
Amperage: | 27 amps |
Watts: | 6460 watts |

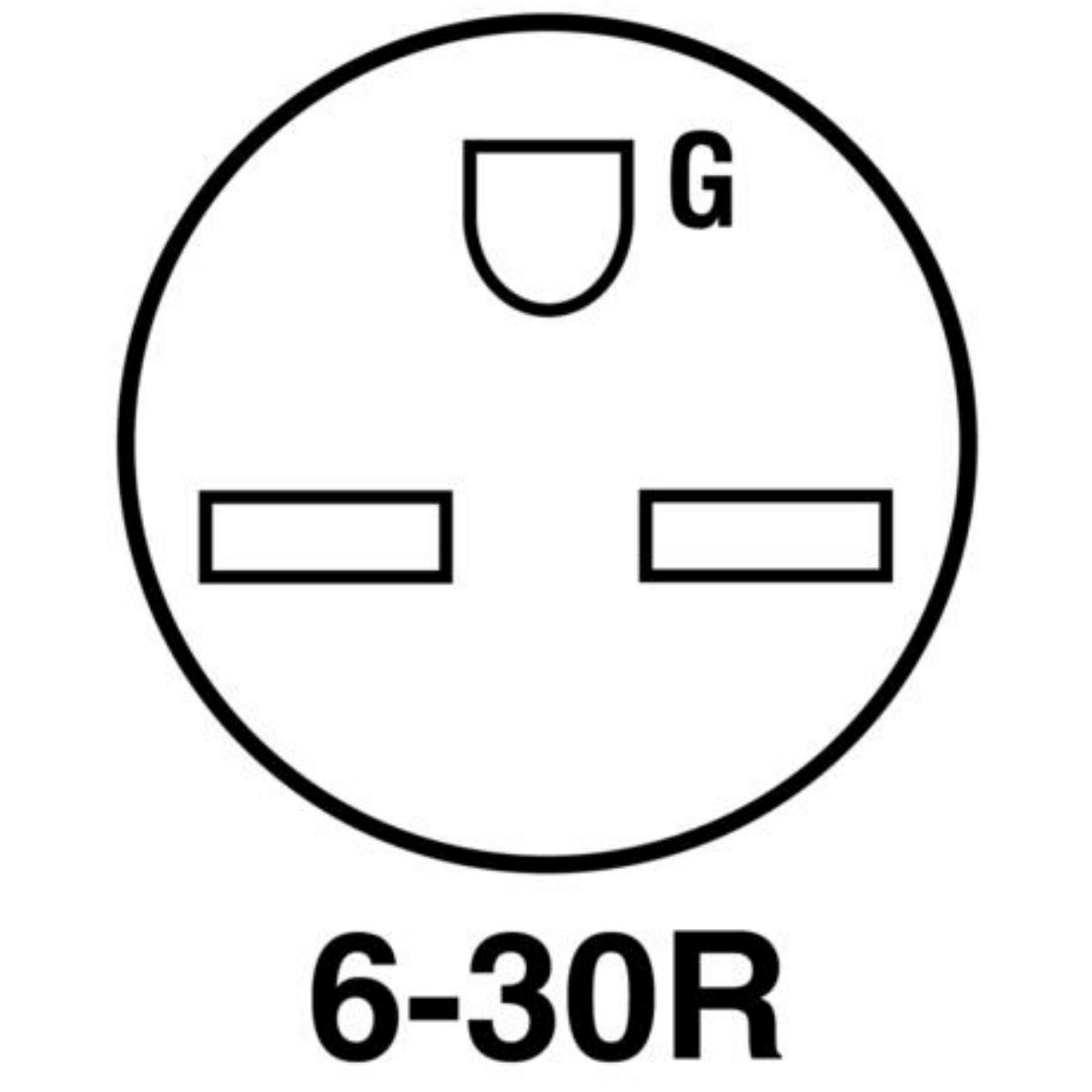

Receptacle: | 6-30R |
Ship Wt: | 100# (freight) |
Top Load

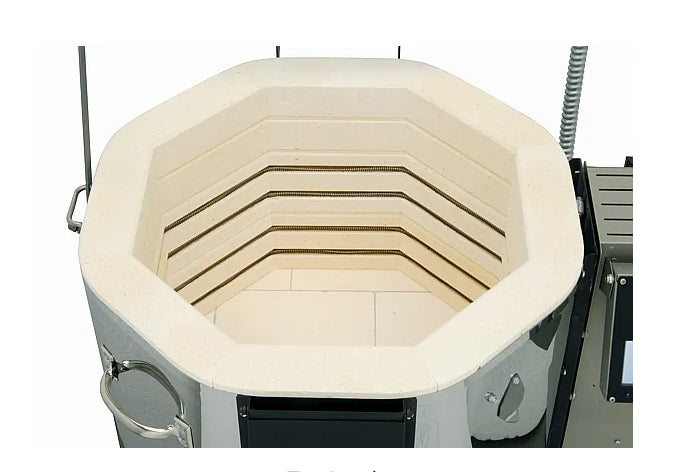

The GTS 18 is a top loading design and offers a chamber 17.5" diameter 13.5" deep.
Full Firebrick Design
The GTS 18 is constructed completely of firebrick. Firebrick is desired in a glass kiln as it stores heat in the beginning of the firing which acts to smooth out temperature swings. It then releases heat slowly at the completion of the firing resulting in very calm annealing, especially over an annealing range. It's just beautiful. As with any glass kiln, you want a portion of firebrick in the mix.
Swing View Equipped

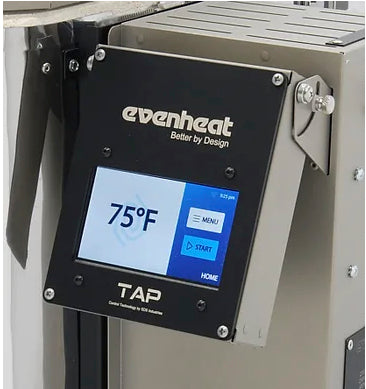

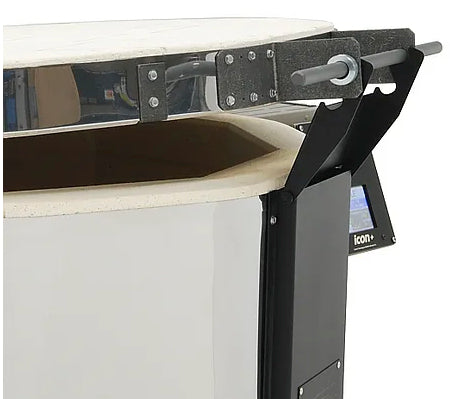

GTS 18 temperature controls are fitted to our Swing View Adjustable Enclosure. The swing view is a pivoting, swing-up enclosure that allows you to
rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's
that simple.
The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.
Relay Access Port
The GTS 18 incorporates our Relay Access Port for simple, no-panel-off relay replacement. Simply
remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a
screwdriver!
It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.
Options:
Multiple Control Options
The GTS 18 is available in a variety of controls including the Icon, Icon+, Tap II and Rampmaster 3. At Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.

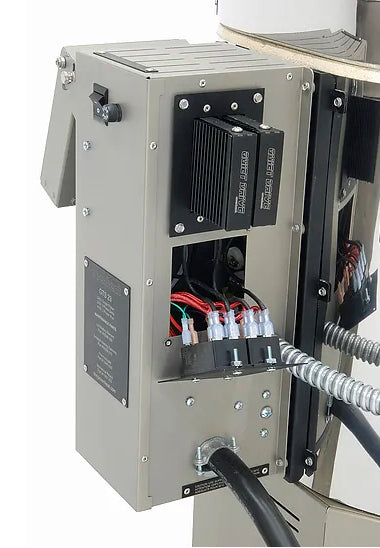

Quiet Drive Solid State Relay Option
GTS 18 models are available with our Quiet Drive Solid State Relay option. Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. The Quiet Drive is arguably the best designed and best performing solid state system on the market.
Why Upgrade from Mechanical Relays to Solid-State Relays?
Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced. Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years. Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times. Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced. You will notice that solid-state relays are silent. The only sound you will hear is just the reassuring hum of the heating elements. So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself. We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.
Looking to replace a worn-out or broken shelf? Enhance your firing experience with our custom shelf kits tailored for the Evenheat Kiln - GTS 18 kiln - Order 15" Hexagon Full Shelf Kit or 16" Hexagon Full & Half Shelf Kit now!
I tried to be patient waiting for my kiln delivery. 7 weeks later and the Tap Controller was defective, error message no Thermocouple detected. Paul at Kiln Frog was very helpful and spent a lot of time trying to assist me. When we couldn't get the controller to work, Paul referred me back to Evenheat. Many calls over two weeks they agreed to replace the controller. Add another week waiting for that delivery. I had to install the new controller myself. Then the new controller would not recognize my internet connection. Three days later it magically connected. The kiln is working now and no additional problems with the no TC error. I do loose internet connection frequently. I can recommend the GTS-18 kiln. I don't recommend the TAP controller. In theory it is a great concept. In reality it needs the bugs worked out.
