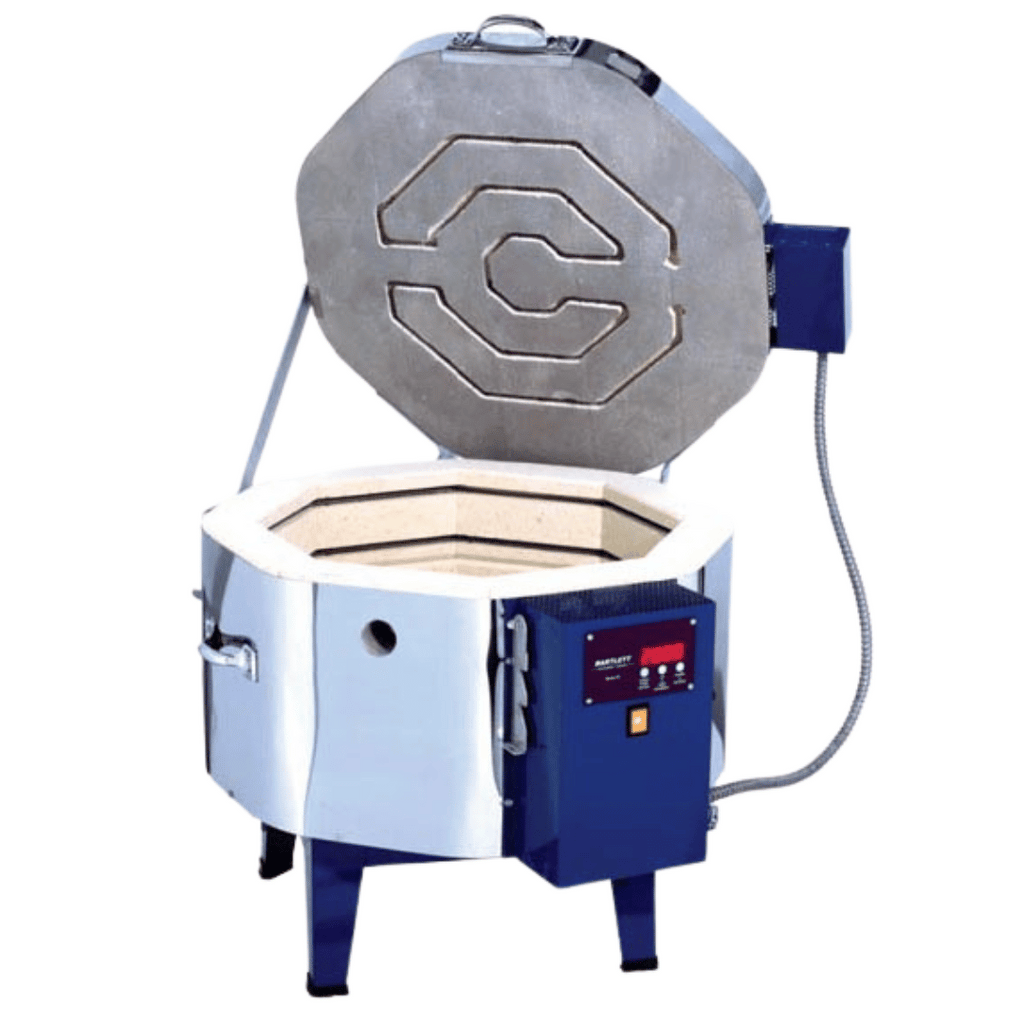

| Model: | Cress Kilns - FUSER89E |
| Inside Dim: | 17.5" Oct. (width) x 9" (depth) |
| Outside Dim: | 29" (depth) x 24.5" (width) x 25" (height) |
| Brick Thickness: | 2.5" in |
| Max Temp: | 2000°F, Cone 3 |
| Voltage: | 240V |
| Current/Amperage: | 20 A |
| Power/Kilowatts: | 4.8 kW |
| Frequency: | 50/60 Hz |
| Amp Fuse Size: | 30 |
| Short Wire Size: | 10 |
| Receptacle: |
6-30R |
| Shipping Weight: | 100# (Motor Freight) |
Includes:
This model is equipped with an electronic 3 key controller, LED readout display. The software of this controller has four user programs. Each program can have up to eight segments with each segment consisting of a ramp rate (in degrees per hour), a target temperature, and a hold time.
Steel Base Plate: A steel base plate is included for safety and strength.
Tapered Peepholes & Peephole Plugs: Tapered peepholes offer a wider angle of viewing into the firing chamber and the snug fitting; tapered firebrick plugs minimize heat loss.
Elements & Element Grooves: Cress kilns use the highest quality most durable elements set into precision cut grooves. We take the extra time and expense to pin our elements in place closer to the firing chamber, taking advantage of direct radiant heat and increasing element life.
Exceptionally Mechanically Sound: The strong steel fixed hinge provides a strong, steady attachment of the lid to the kiln and avoids the problem of possible damage by brick hitting brick near the joint. We use a superior extra strong lid brace for extra safety. The rigid back brace clamps keep the kiln strong over the years helping protect the brick and giving the kiln a strong spine. A strong pre-assembled welded steel stand is standard.
Instruction Manual: An excellent and concise instruction manual, click here to download the manual and read more on these glass kilns.
