Description

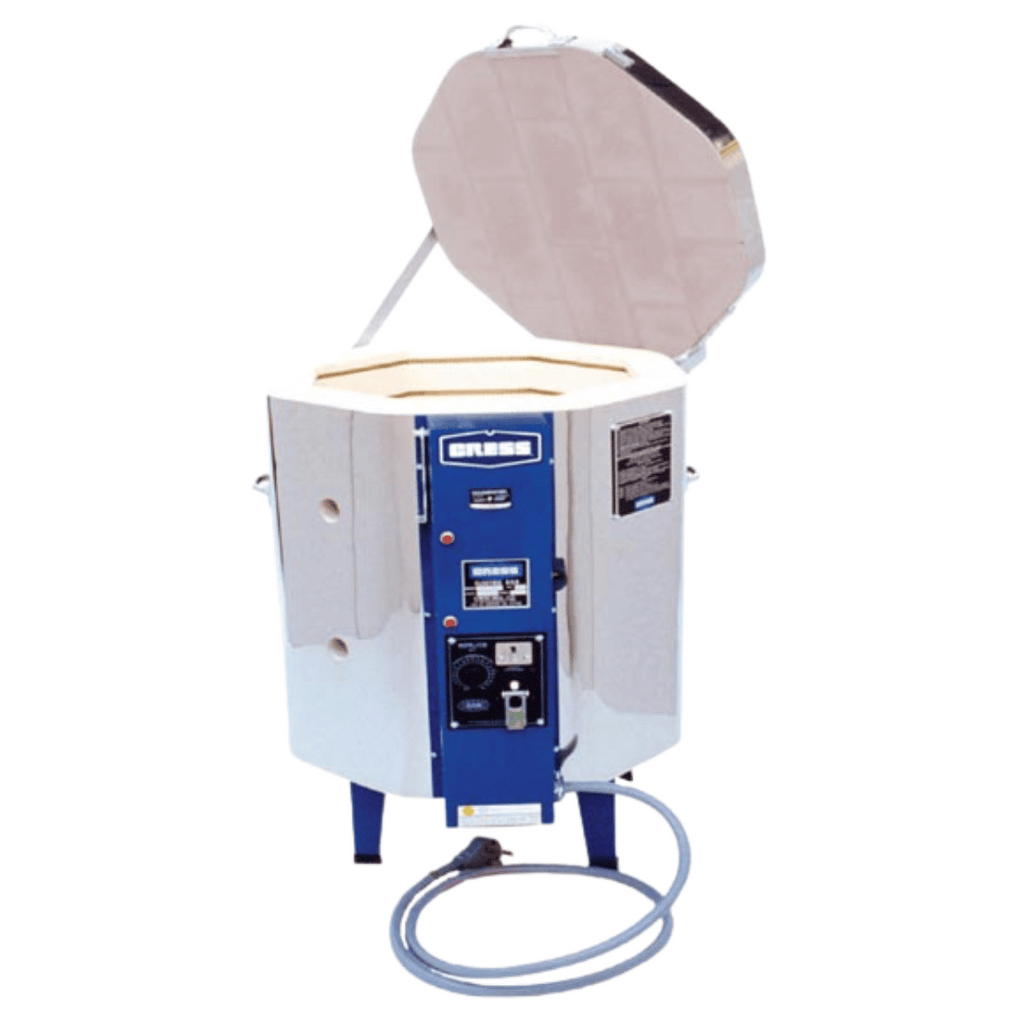

| Model: | Cress Kilns - FTX23F |
| Inside Dim: | 17.5" (width) x 22.5" (depth) |
| Outside Dim: | 27" (depth) x 23.5" (width) x 37.5" (height) |
| Brick Thickness: | 3" in |
| Max Temp: | 2350°F, Cone 10 |
| Voltage: | 220V / 208V |
| Amperage: | 24 A / 32 A |
| Kilowatts: | 5.3 kW / 6.6 kW |
| Frequency: | 50 / 60 Hz |
|
Certification: |
CSA and UL Std 499 |
|
Amp Fuse Size: |
30 / 50 |
| Short Wire Size: | 10 / 6 |
| Receptacle: |
6-30R / For 208V 6-50R |
| Shipping Weight: | 175# (Motor Freight) |
Includes:
- FREE SHIPPING in the contiguous US!
- Cress Firemate Control
- Dawson Kiln Sitter
- Limit Timer
- Lid Brace
- Two Position Lid Venting Prop
- Peephole Plugs
- Thumbwheel Power Adjustment
- Auto/Manual Firing Mode Switch
- Heavy Gage Elements
- Preassembled Kiln Stand
- Lift Handles
- Steel Bottom Safety Plate
- Adjustable Case Clamps
- Instruction Manual/Instruction Plate
- 3-Year Limited Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)
This kilns includes: Dawson kiln sitter & limit timer, superior lid brace, two position lid venting prop, insulated peephole plugs, instruction manual and permanently attached instruction plate, patented Cress Firemate control with reduced heath-shock firing curve, thumbwheel power adjustment, auto/manual firing mode switch, heavy gage elements electrically trimmed for superior temperature uniformity, pre assembled kiln stand, lifting handles, steel bottom safety plate, adjustable case clamps reinforced lid band.
This kiln is tolerant to power variations. Motorized power control, smooth automatic firing program with override, power speed control, insulated peephole plugs, two position lid prop, large lifting handles, bottom metal safety plate, & instruction manual.
"FAN ready" for exhaust system. Optional patented Cress clean air exhaust system prevents cross contamination of colors - achieve the brightest best colors yet! Turns off automatically when kiln reaches temperature to slow cooling and prevent breakage. Plugs into bottom of panel.
"HP" is for higher power elements yielding lower cost firing with faster fire capability & dual voltage capability
Firemate/Automatic Control
The Cress firemate design has been patented in 16 countries for its excellent and unique control system, which gradually increases power to the kiln throughout the firing process.
This provides the advantages of firing as rapidly as possible without heat shocking the ware, and are extremely energy efficient. The firemate even senses and adjust for room temperature and small voltage variations to give you highly repeatable and consistent firing results. The elements are electrically adjusted from top to bottom to give the most uniform firing possible.
The firemate automatically turns the kiln up when you are busy and forget. You have control; fire automatically or fire manually it is simple to operate.
Want to know more about this kiln before you buy? Click here to download the manual and read more about it.
