AmeriBrade - Kit- Tilting Platen on Arm

Sale price$ 180.00

Payment & Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

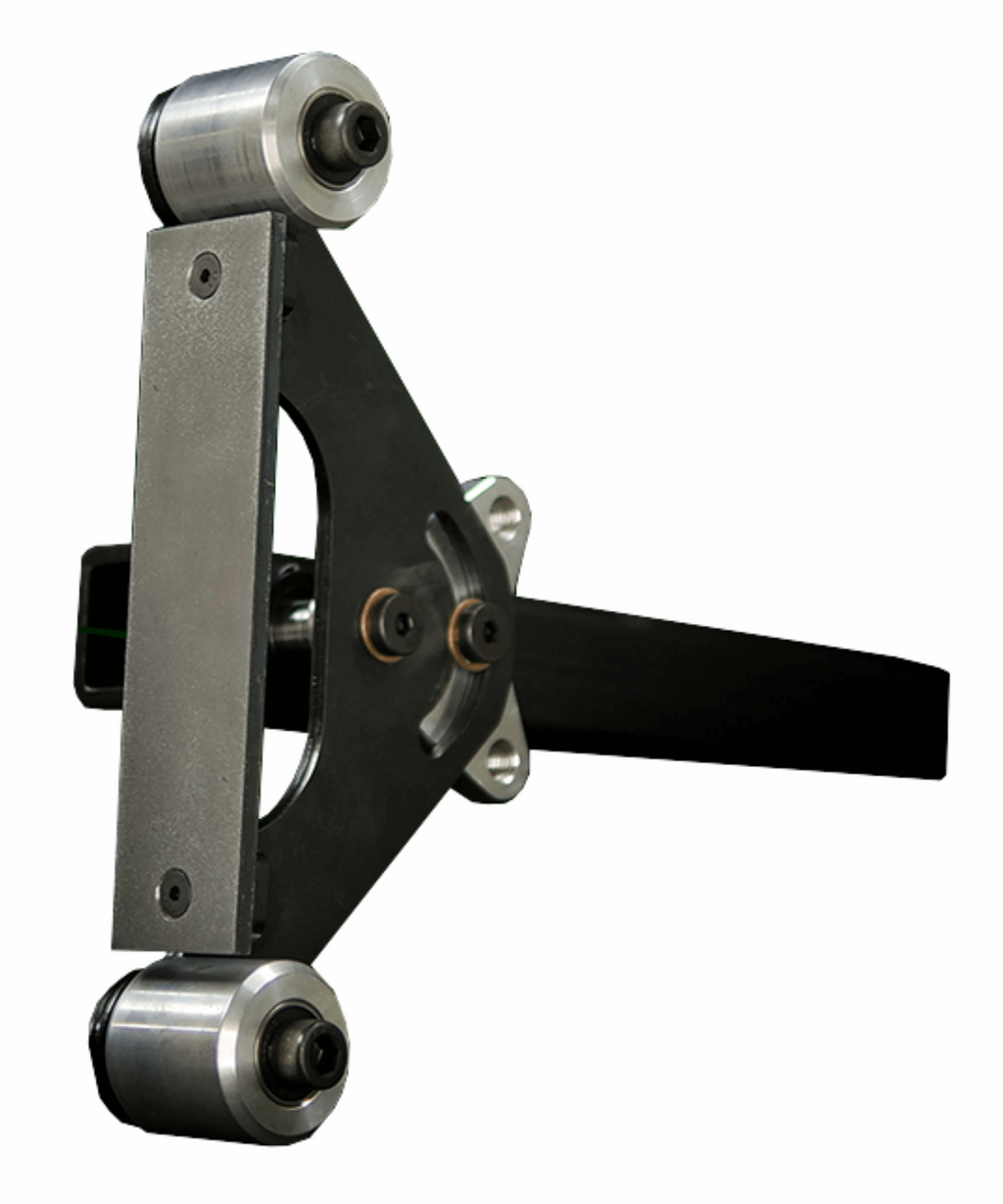

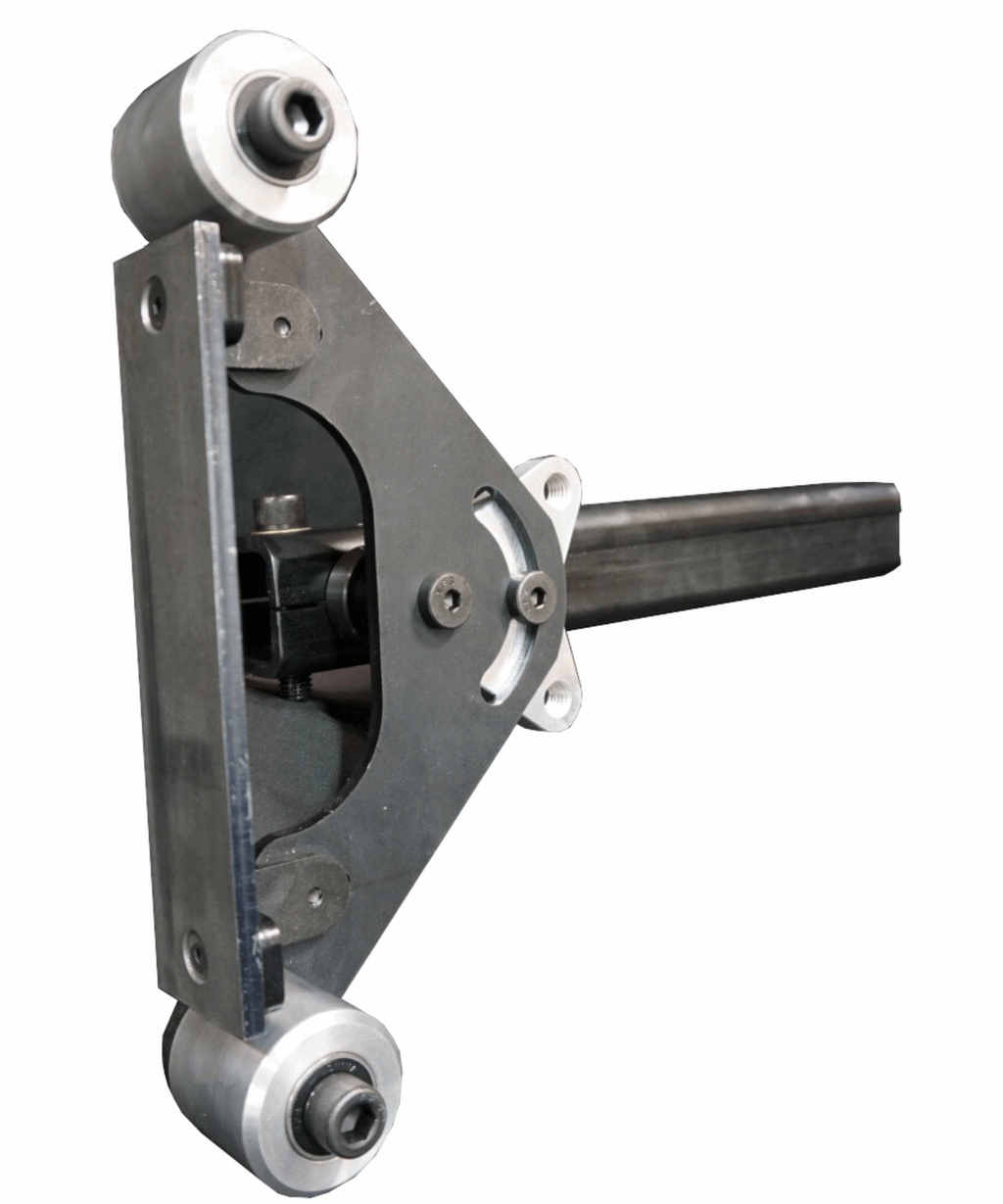

Tilting Platen

  • Wheel Spacing: 10" center to center
  • Wheel Diameter: 2"
  • Wheel Width: 2"
  • Platen Width: 1.9"
  • Mounting hole and slot sized for 1/2" fasteners, 1.5" apart

Accessory Arm

  • 2" square accessory arm
  • 15" Long
  • Black oxide coated
  • 1/4" wall thickness
  • 1/2-13 threaded holes, 1.5" apart
  • 3/4” spindle mount with adjustable rotation and offset
  • 3/4” shaft collar to save offset adjustment

The side plate and platen plate are laser cut from 1/4" thick P&O steel. Platen wheels are CNC machined 6061 aluminum and are mounted with 1/2"-20 socket head cap screws.  The wheel bearings are separated by a crush sleeve to protect them from over-tightening. The platen plate is mounted with 1/4"-20 countersunk flathead fasteners and can be adjusted into tangency with the platen wheels.

Please note, accessory arms are 2” square. If you do not have an AmeriBrade grinder, please check what size your accessory arms should be.
