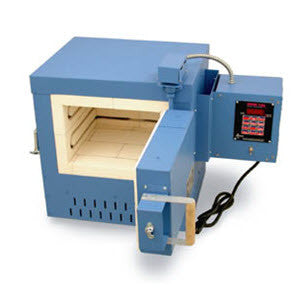

Paragon Kiln - Heat Treating Furnace - PMT10
|Model:||Paragon Heat Treating Furnace - PMT10|
|Dimensions Inside:||8.50" (width) x 9" (depth) x 8.75" (height)|
|Max Temp:||Fires to 2350° F|
|Shipping Weight:||68 lbs (UPS)|
- FREE SHIPPING in the contiguous US!
- 12-Key Digital Sentry Controller
- On/Off Safety Switch
- Built-in Stand
- Instruction Manual
- 1-year Limited Warranty

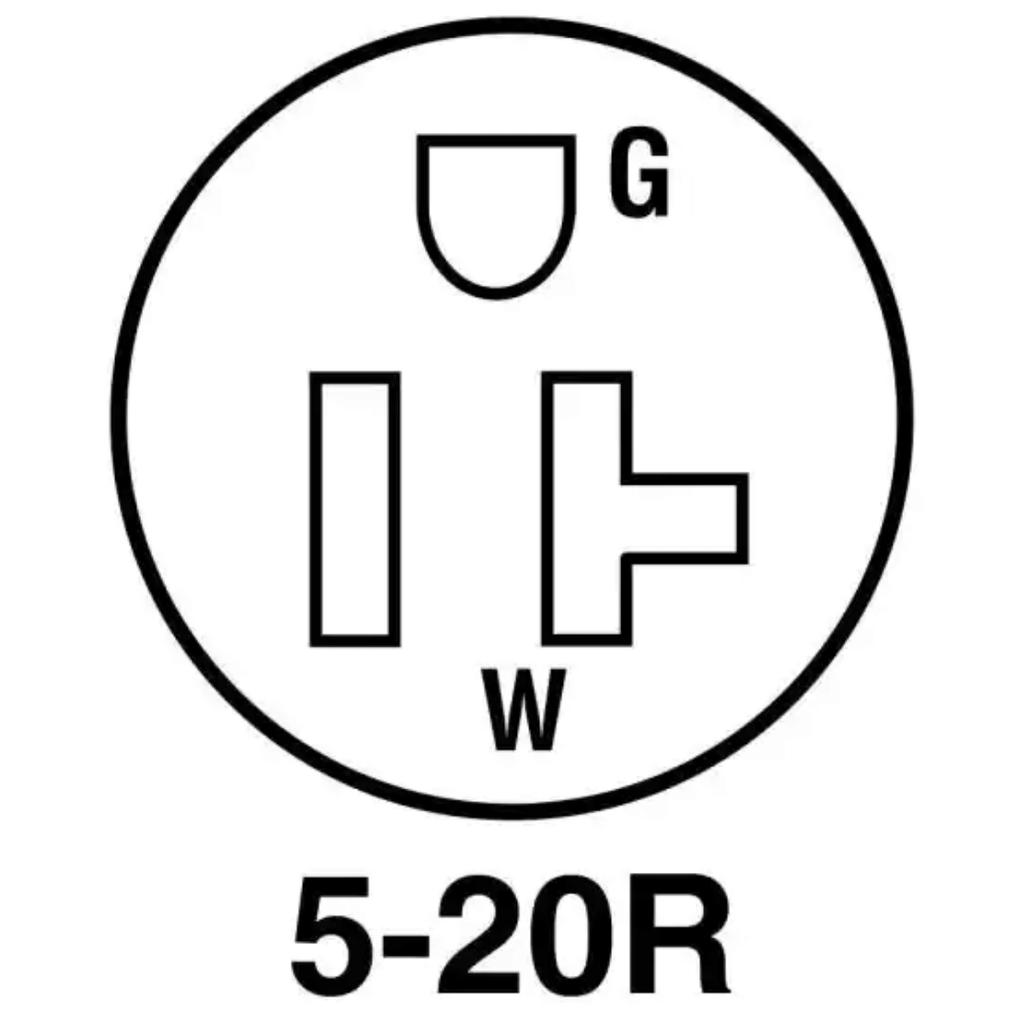

*** This kiln is 120v but, requires a 5-20R DEDICATED CIRCUIT. Learn more about dedicated circuits HERE! ***
Machine shops save time by having a furnace in their own shop. The furnace will always be ready. You will no longer need to send a die out for heat treating, wait for its return and then send it out again for additional heat treating.
The door swings open with one-handed operation. The PMT10 furnace is insulated with refractory firebrick. The elements are mounted in dropped, recessed grooves machined into the firebrick. Paragon invented this type of groove in 1952. This groove protects the element for long life and low maintenance. Elements are simple to replace because they’re exposed rather than embedded. You can thread new elements into place following clear instructions in the manual.
The firing chamber is protected by a steel case painted in high-temperature blue. A built-in stand lifts the firing chamber safely off your worktable, so no extra stand is needed. The door is mounted with a heavy-duty hinge for smooth opening. A micro-switch shuts off the power to the elements when the door is opened. We use high-temperature wire in the switch box for long life. A heat shield, mounted between the switch box and furnace, helps keep the switch box components cool even during extended operation. To further dissipate heat, the switch box is extra large and generously louvered.
Optional Gas Injection Flow Meter
During heat treating, scale forms on the surface of the steel. One way to eliminate most scaling is to wrap the steel in stainless steel foil. An easier way is to install the gas injection flow meter on your furnace. It is available as either an add-on kit or you can order the furnace with the meter installed.
The meter regulates the flow of an inert gas, such as argon, inside the furnace. The gas displaces the oxygen to prevent most scaling. Please note that the gas may reduce heating element life. Also, gas injection does not offer better results than heat treating foil nor does gas injection prevent all scaling. The main benefit of gas injection is the savings in time overwrapping the steel in foil.
