Paragon Kiln - Fusion 14
|Model:||Paragon Fusion 14|
|Dimensions Inside:||14" (length) x 14" (width) x 6.5" (depth)|
|Shelf Size:||12” x 13” x 1/2” Shelf - NOT INCLUDED|
|Max Temp:||Fires to 1700° F|

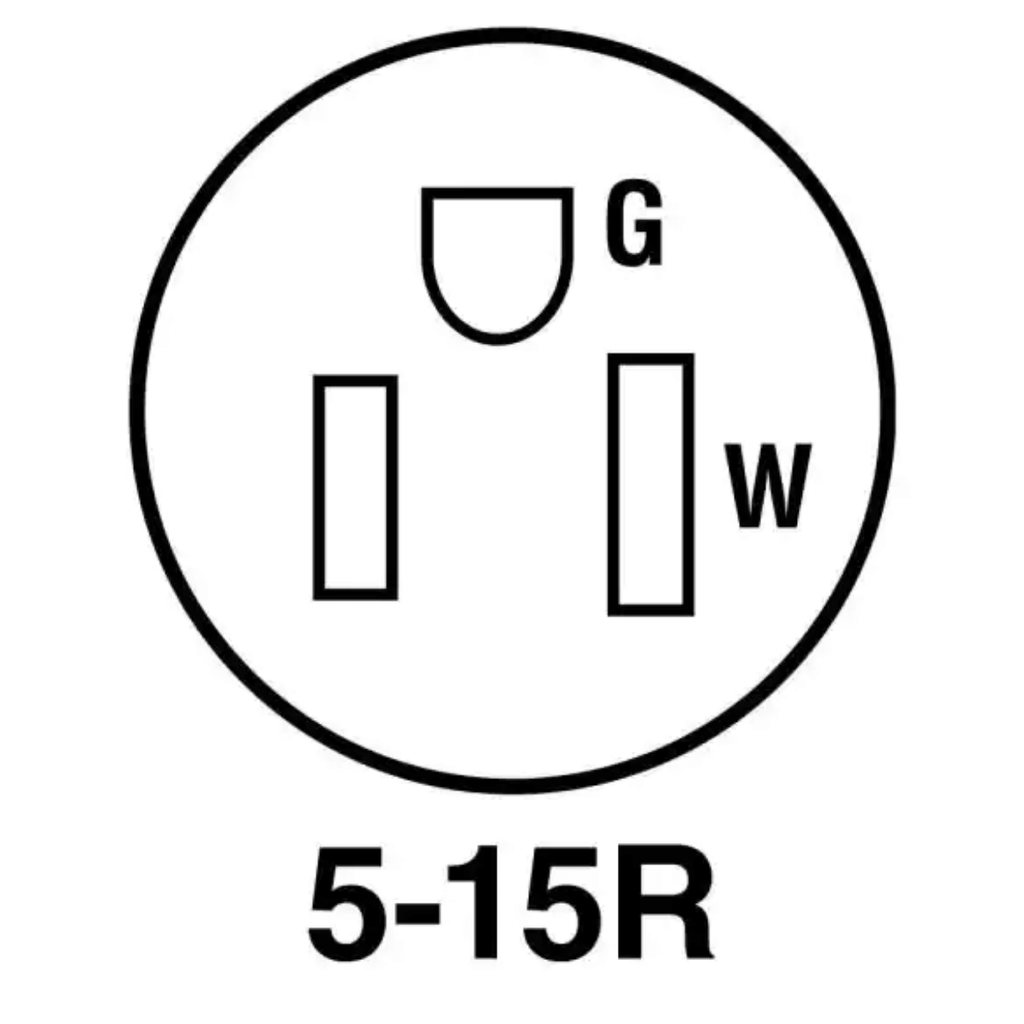

|Amperage:||15 amps (You can plug it into most household outlets)|
|Shipping Weight:||105# (UPS)|
- FREE SHIPPING in the contiguous US!
- 3-Key Digital Sentry Xpress Controller
- On/Off Safety Switch
- Built-in Stand
- Instruction Manual
- 2-year Limited Warranty

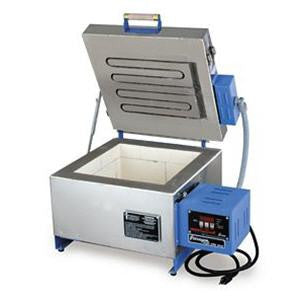

Paragon’s square Fusion-14 digital glass kiln operates on a standard household outlet and fires up to nine 4” x 4” glass tiles. Imagine the murals you could make with this kiln.
The Fusion-14 heats from the top for even heat distribution across the glass surface. The lid elements are mounted in pinless element grooves. Because the element coils are wider than the groove opening, element pins are no longer needed. This helps eliminate dust in the firing chamber.
Optional Ceramic Fiber Top
The standard Fusion-14 comes with an insulating firebrick top. You can also upgrade your kiln with the optional deluxe ceramic fiber top, which has the same type of pinless groove as the standard top. The fiber top helps keep the kiln interior even cleaner.
Optional Glass Window and Bead Door
Enhance your glass fusing experience with the optional high temperature 1” x 3” glass window. It simplifies fusing by enabling you to watch every stage, from softening, to tack fuse, to full fuse. Watch the glass to fine-tune a digital program. (Always wear firing safety glasses, available from Paragon, while watching the glass through the window.)
You can even anneal glass beads with your Fusion-14. Order the optional bead door, which mounts to the front of the kiln. Use your kiln to safely cool large, ornate beads through the annealing range.
Reliability at the Heart of the Kiln
The Fusion-14 has a two-year warranty. The temperature sensor, called a thermocouple, is sheathed with high-nickel stainless steel for long life. A heavy steel base supports the reversible brick bottom completely. These features are extra assurance that your Paragon kiln is built to last. No extra stand is needed.
The reliable Fusion-14 has dual mechanical relays for long life. The digital controller sends a signal to the relays to turn on the heating elements. The two relays in the Fusion-14 last longer than the single relay of competitive kilns because of the reduced amperage going through each relay.
In addition, you can order the mercury relay upgrade with your new kiln. The mercury relays are ordinarily found only on industrial kilns and outlast mechanical relays. The life of the quiet, reliable mercury relay has been measured in millions of on/off cycles.
For your convenience, flip the switch on the front panel to turn off power to the controller when the kiln is not in use. The large, comfortable wooden lid handle stays cool.
The Fusion-14 control box has a durable high temperature, water-based finish. We chose water-base paint because of the low emissions during spraying. This creates a safer working environment for our employees and cuts down on pollution.
