|Dimensions Inside:||16" (length) x 16" (width) x 6.5" (depth)|
|Shelf Size:||14.5” x 14.5” Square Shelf - NOT INCLUDED|
|Elements:||Top Element Only|
|Max Temp:||Fires to 1700° F|

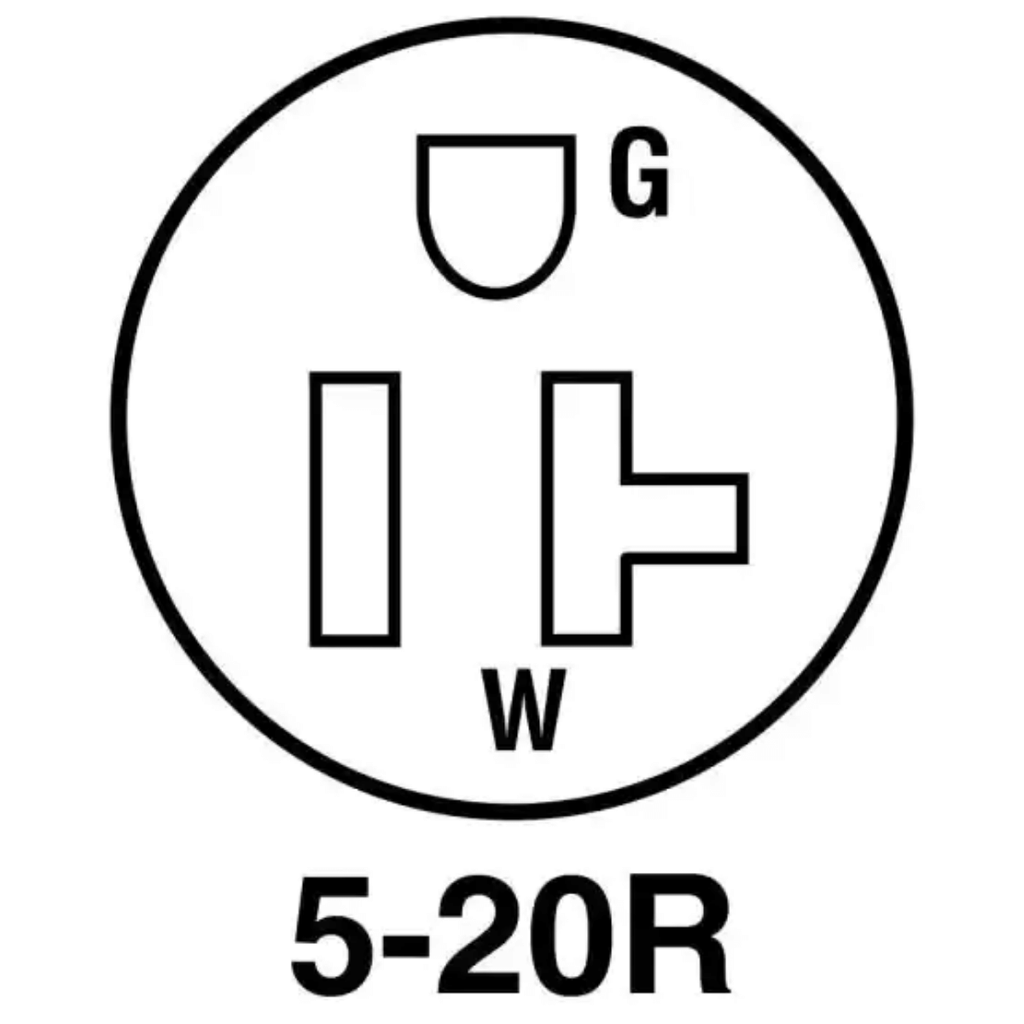

|Receptacle:||5-20R (dedicated circuit)|
|Shipping Weight:||186# (Freight)|
- FREE SHIPPING in the contiguous US!
- 3-Key Digital Sentry Xpress Controller
- On/Off Safety Switch
- Built-in Stand
- Instruction Manual
- 2-year Limited Warranty
*** This kiln is 120v but, requires a 5-20R DEDICATED CIRCUIT. Learn more about dedicated circuits HERE! ***

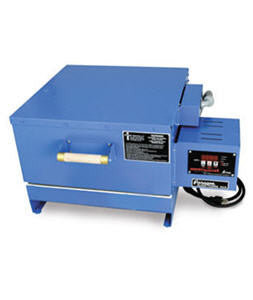

This kiln gives you everything, just like the CS-14S plus, two inches more.. and, we know how much difference two inches can make! Paragon’s square CS-16S digital clamshell glass kiln operates on a standard household outlet and fires up to nine 4” x 4” glass tiles. This is a lot of kiln for the price and is a really great value!
Kiln Lifts Out of the Way for Easy Loading
The walls and top, as a single unit, lift up and out of the way so you can assemble glass pieces inside the kiln without hassle. Add stringers and frit to delicate designs, often without using glue. When the kiln shelf is loaded and you are ready to fire, lower the kiln in place.
The kiln is easy to open because of three counter-weight springs mounted under the kiln. This unique feature sets Paragon kilns apart from the competition. The kiln base extends 4” in the back to support the weight of the kiln when in the open position. The base comes with mar-proof rubber feet.
The CS-16S clamshell (single opening) top and kiln walls are one unit. If you need the version with a separate lid, please see the CS-16D (double opening).
Optional Ceramic Fiber Top
The standard CS-16S comes with an insulating firebrick top. You can also upgrade your kiln with the optional deluxe ceramic fiber top, which has the same type of pinless groove as the standard top. The fiber top helps keep the kiln interior even cleaner.
Optional Glass Window and Bead Door
Enhance your glass fusing experience with the optional high temperature 1” x 3” glass window. It simplifies fusing by enabling you to watch every stage, from softening, to tack fuse, to full fuse. Watch the glass to fine-tune a digital program. (Always wear firing safety glasses, available from Paragon, while watching the glass through the window.) You can even anneal glass beads with your CS-16S. Order the optional double 2” x 6 3/8” bead doors, which mount to the front of the kiln. Use your kiln to safely cool large, ornate beads through the annealing range.
Reliability at the Heart of the Kiln
You will be amazed at the sturdy construction that has made Paragon kilns renowned. The painted steel case covers the sides and top of the kiln. The CS-16S has a two-year warranty. The temperature sensor, or thermocouple, is sheathed with high-nickel stainless steel for long life. A heavy steel base supports the reversible brick bottom completely. These features are an extra assurance that your Paragon kiln is built to last. No extra stand is needed.
The reliable CS-16S has dual mechanical relays for long life. The digital controller sends a signal to the relays to turn on the heating elements. The two relays in the CS-16S last longer than the single relay of competitive kilns because of the reduced amperage going through each relay. In addition, you can order the optional industrial mercury relay for your CS-16S.
For your convenience, flip the switch on the front panel to turn off power to the controller when the kiln is not in use. The large, comfortable wooden lid stays cool.
The CS-16S is painted with a durable high temperature, water-based finish. We chose water-base paint because of the low emissions during spraying. This creates a safer working environment for our employees and cuts down on pollution.
