Paragon Kiln - CS-16D - Kiln Frog

Paragon Kiln - CS-16D

$ 1,212.30 $ 1,515.38

Model: Paragon CS-16D
Dimensions Inside: 16" (length) x 16" (width) x 6.5" (depth)
Shelf Size: 14” x 15” Square Shelf - NOT INCLUDED
Elements: Top Element Only
Max Temp: Fires to 1700° F
Voltage: 120 volts
Amperage: 20 amps
Watts: 2400 watts

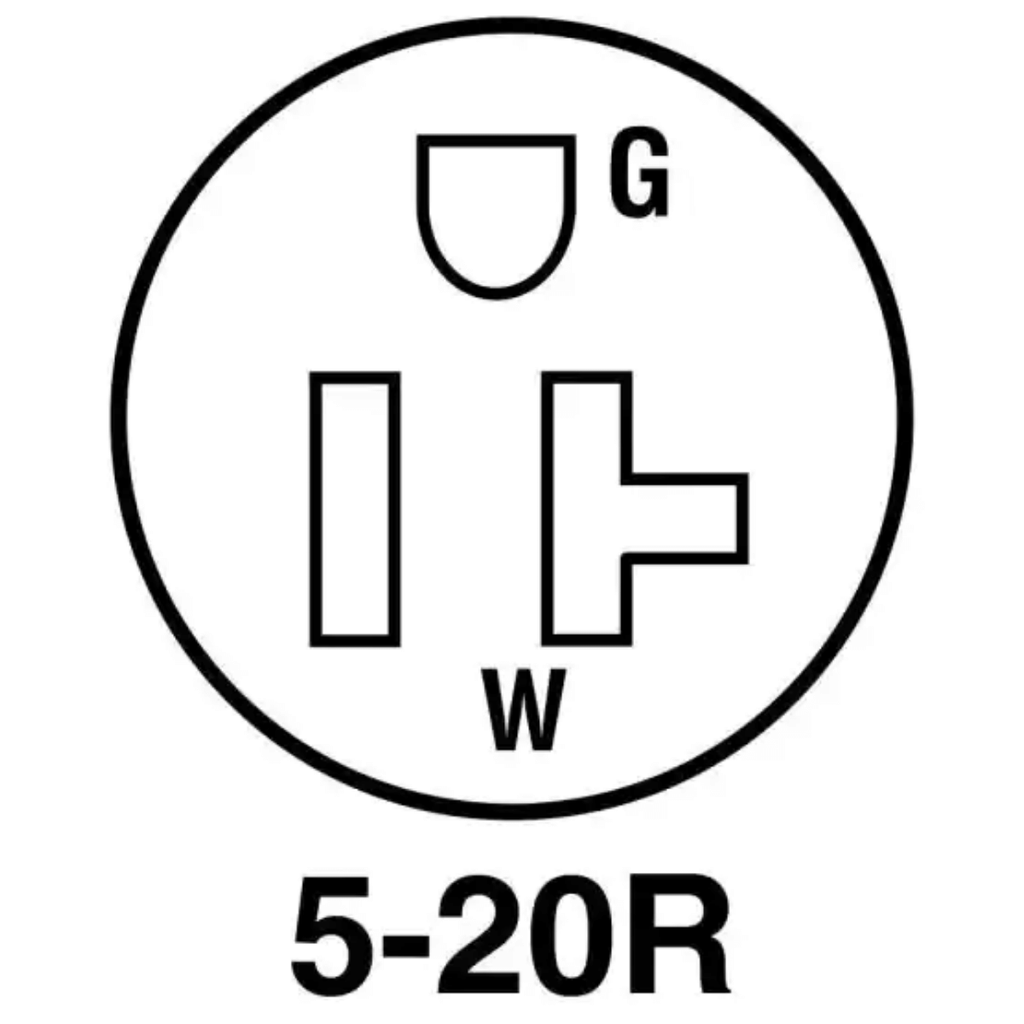

Receptacle: 5-20R (dedicated circuit)
Shipping Weight: 186# (Freight)


Includes:

  • FREE SHIPPING in the contiguous US!
  • 3-Key Digital Sentry Xpress Controller
  • On/Off Safety Switch
  • Built-in Stand
  • Instruction Manual
  • 2-year Limited Warranty

This kiln gives you everything, just like the CS-16S plus, two inches more.. and, we know how much difference two inches can make! The CS-16D is an incredible kiln with a dual-opening.

Kiln Lifts Out of the Way for Hassle-Free Loading

The kiln lifts up and out of the way so you can assemble glass pieces inside the kiln directly onto a shelf. Add stringers and frit to delicate designs. When the kiln is full, lower the kiln over the shelf. Imagine how easy that is.

The kiln is easy to open because of three counter-weight springs mounted under the kiln. The kiln base extends 4” in the back to support the weight of the kiln when in the open position. The base comes with mar-proof rubber feet.

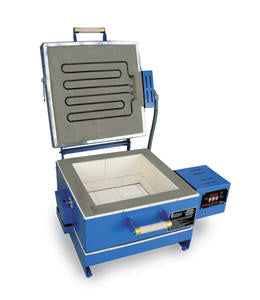

The CS-16D is dual-opening: You can open the kiln by lifting the kiln body or by lifting only the lid. Lift the kiln body out of the way to assemble glass directly on the shelf; open the lid to load glass over a slumping mold.

The CS-16D can be opened by lifting the kiln body or the kiln lid, but never both at the same time. The kiln is equipped with safety latches on the side. The gravity-operated top latch holds the lid closed; the lever-operated bottom latch holds the kiln body closed.



Protective Steel Lid Cover

The top of the lid is protected with a painted sheet metal cover. The sheet metal is bent to cover the sides of the lid and then welded at the corners. You will be amazed at the sturdy construction that has made Paragon kilns renowned among glass fusers. The self-adjusting lid floats at fusing temperatures.



Optional Ceramic Fiber Top

The standard CS-16D comes with an insulating firebrick top. You can also upgrade your kiln with the optional deluxe ceramic fiber top, which has the same type of pinless groove as the standard top. The fiber top helps keep the kiln interior even cleaner.



Reliability at the Heart of the Kiln

The CS-16D has a two-year warranty. The temperature sensor, called a thermocouple, is protected with a high-nickel stainless steel cover for long life. A heavy steel base supports the reversible brick bottom completely. These features are extra assurance that your Paragon kiln is built to last. No extra stand is needed.

The reliable CS-16D has dual mechanical relays for long life. The digital controller sends a signal to the relays to turn on the heating elements. The two relays in the CS-16D last longer than the single relay of competitive kilns because of the reduced amperage going through each relay.



Convenient Features

For your convenience, flip the switch on the front panel to turn off power to the controller when the kiln is not in use. The large, comfortable wooden lid and kiln handles stay cool.

The CS-16D is painted with a durable high temperature, water-based finish. We chose water-base paint because of the low emissions during spraying. This creates a safer working environment for our employees and cuts down on pollution.

Note: The bead door and high-temperature glass window are not available on the CS-16D. However, they are available on the CS-16S.
