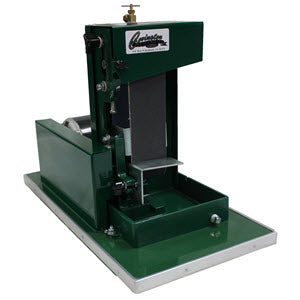

Covington - Mounted Wet Belt Sander #466

The Bench-Mounted Covington Wet Belt Sander #466 has 6" of workspace and is designed to sand, grind, and polish small items. This sander comes complete with a 1/3hp motor and belt guard mounted on a rustproof aluminum topped Lam-I-Cushion base, instructions, and product guarantee.

A water valve and spray nozzle are built-in for easy hookup. The water valve takes 1/4"OD plastic tubing for gravity water flow or 1/4" copper tubing for pressure systems. This lapidary belt sander model ships with the motor attached, ready to plugin and operate.

Instructions: Download

Each machine includes:

• Upright bearing support casting mounted on a cast aluminum tank
• Unobstructed access to the work area
• Quick change belt system
• Powder-coated hood, base, and bearing support
• Single control alignment to keep the belt running true
• Shielded bearings, double sealed and greased for life
• Adjustable back plate sands flat surfaces
• **Belts are NOT included... please order if you need them**

Specifications:

• Motor: 1/3 hp, 110v motor
• Size: 24”L x 12”W x 20”H
• Water valve takes 1/4" O.D. plastic tube for gravity water flow or 1/4" copper tube for pressure system
• Drain system can be provided by 1/2" O.D. plastic tube. Just squeeze tube end and insert in drain port. Overflow can then drain from sander tank.
• Shipping weight: 50 lbs (Ships factory-direct via UPS.)

Belt Starter Kit
Normally sold as single belts, we've bundled them in a PACK of 10!

Starter Kit consists of: 1-60g, 1-80g, 2-100g, 1-220g, 1-320g, 1-400g, 1-600g, 1-800g, and 1-1,000g. These 3" x 24" Silicon Carbide Sanding Belts are the proper fit for the Mounted Wet Belt Sander - Model #466.

You can add extras of any grit to your set to get more of what you need! Want a special mix? Call or email us and we will personalize the mix to your needs!

There are a few options available for water hook-up to your new Covington Sander. The two most common are the 2-Gallon Pressure Tank, which provides water to the belt with only a few pumps of pressure, or the water pump, which provides constant water to the belt.

Both methods are efficient and inexpensive. The Pressure Tank will hook right into your sander valve and must be tightened down sufficiently for the aluminum tubing to remain in the valve. Simply give the pressure tank a few pumps and the water will begin to spray onto the belt. You will occasionally have to pump the handle to keep pressure in the tank and keep the water flowing.

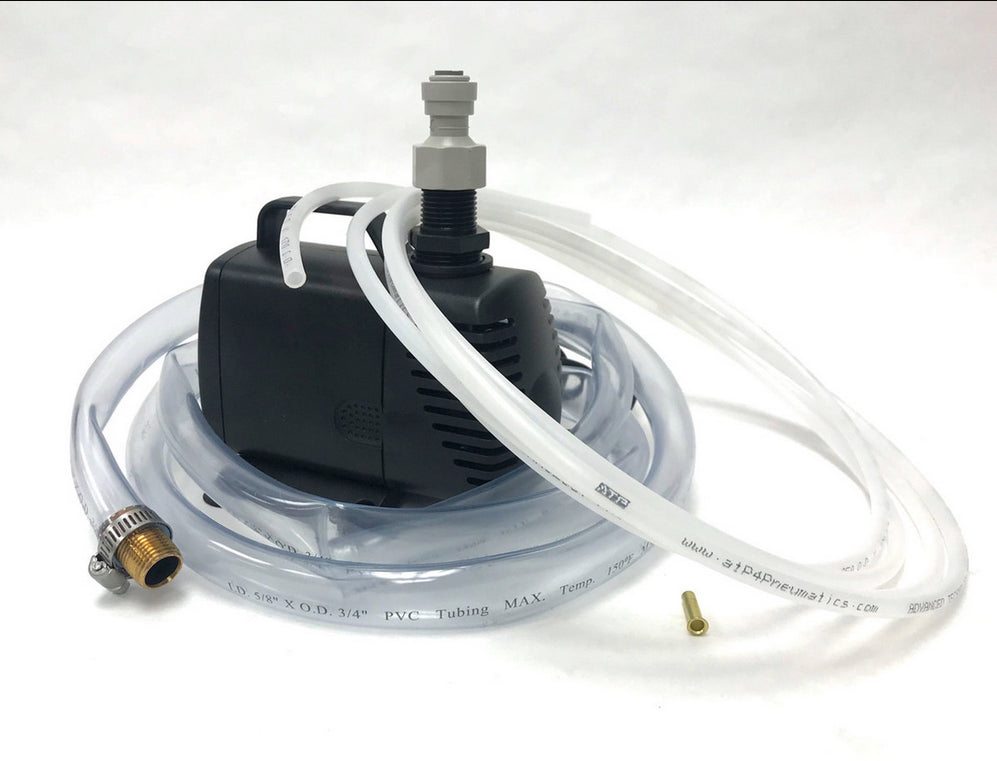

The water pump is a submersible unit that must be placed into a bucket of water. The pump has a quick-connect attachment for the ¼” plastic tubing. Simply press the tubing into the quick connect and it will stay in place. The other end of the tubing must be placed securely into the sander valve using a copper fitting with the tubing. This fitting prevents leaking. Once the tubing is connected, simply plug the pump into an outlet, make sure the valve is open and it will begin putting water onto your belt.

We also recommend purchasing a drain kit with your sander to eliminate dirty water as it accumulates in the pan. Simply remove the drain plug, attach the drain kit, and put the remaining tubing into a bucket. By removing the water from the pan, you prevent overflow, cross-contamination, and scratching of your pieces.

The full plumbing kit includes the pump and the drain kit, but not the pressure tank.
