PRODUCT DESCRIPTION

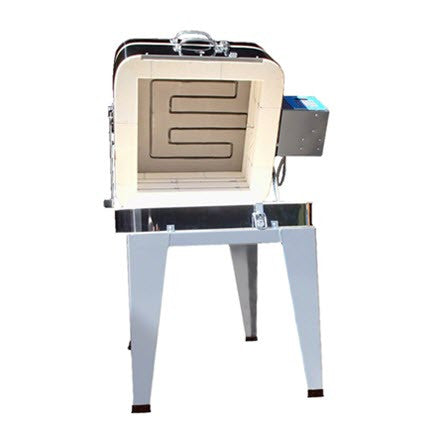

The Quatro 16 TLC provides a square glass fusing kiln for individuals who need a kiln larger than 14.5" x 14.5" wide (Square 146GFE) but not as large as 18" x 18" wide (Square 186GFE).

This 120-volt kiln is equipped with a lid element for the fusing segment of the glass firing and a body element for the ramping up, down and annealing segments of the firing. A selector switch is on the electrical box to designate either the lid or body element to heat during the firing. Only one of the elements can be used at a time because of the limited power of 120 volts.

*** This kiln is 120v but, requires a 5-20R DEDICATED CIRCUIT. Learn more about dedicated circuits HERE! ***

Product Specifications

Model:	Olympic Quatro 16 TLC
Inside Dim:	16.5" (length) x 16.5" (width) x 6" (depth)
Outside Dim:	26" (width) x 34" (depth) x 30" (height)
Shelf Size:	15” Square Shelf - NOT INCLUDED
Max Temp:	Fires to 1700° F
Voltage:	120 volts
Amperage:	16 amps
Watts:	1920 watts
Receptacle:	5-20R
Ship Wt:	190# (Freight)

What's Included

FREE SHIPPING in the contiguous US!
KilnStar 12-Key Digital Controller
Peephole Plugs
Tall Stand
Mechanical Relays
Instruction Manual
Two-Year Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

Key Information

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced. Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years. Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times. Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced. You will notice that solid-state relays are silent. The only sound you will hear is just the reassuring hum of the heating elements. So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself. We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

Check out the Olympic Kilns Electrical Parts Kits... never experience downtime again because you didn’t have a part on hand!

Looking to replace a worn-out or broken shelf? Enhance your firing experience with our custom shelf kits tailored for the Olympic Quatro 16TLC kiln - Order 15" Square Full Shelf Kit now!
