Evenheat Studio Pro 14 Glass Kiln

Name: Evenheat Kiln - Studio Pro 14
Brand: Evenheat
Price: 2024.0 USD
Availability: InStock

Evenheat Kiln - Studio Pro 14 open front-loading kiln with ceramic interior and digital control box, designed for pottery, glass fusing, and heat treating applications.

Evenheat Kiln - Studio Pro 14 with an open front-loading design, digital controller, and durable insulation for glass fusing, pottery, jewelry making, and heat treating applications.

Evenheat Kiln - Studio Pro 14 front-loading kiln with digital control panel, designed for ceramics, glass fusing, jewelry making, and heat treating applications.

Evenheat Kiln - Studio Pro 14 with a front-loading clamshell design and digital controller, ideal for ceramics, glass fusing, and heat treating in pottery and jewelry making.

Evenheat Kiln - Studio Pro 14 kiln shelf kit including a square kiln shelf, heat-resistant brush, alumina powder container, and small kiln furniture pieces for pottery and ceramics.

Electrical receptacle diagram labeled 5-15R showing grounding and power connections for the Evenheat Kiln - Studio Pro 14.

Best price promise badge with golden laurel wreath surrounding bold text on white background, promoting Evenheat Kiln - Studio Pro 14.

Cardboard shipping box with large text stating free shipping and handling symbols, related to Evenheat Kiln - Studio Pro 14 packaging or delivery.

Patented Exclusive
Technology

Highest Quality
Craftsmanship

Unique Custom
Options

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 20%

Quantity

Post Purchase Customer Service
Lifetime Technical Support
Ongoing Educational Resources
Best Price Promise
Most Kilns Ship FREE in the US 48*
Secure Checkout & Payments

Need help?
Schedule a call with our expert Call Now

PRODUCT DESCRIPTION

The Evolution Continues... Every so often a design comes along that shatters convention. A design so unique, yet so obvious, it redefines everything. The Studio Pro 14 is the latest addition to Evenheat's line of 120V, personal sized kilns and features dual access design. The Studio Pro 14 offers more in performance, design, and flexibility than any other kiln in its class. Like the Original Studio Pro, the design of the Studio Pro 14 was driven by the demands of glass work. Glass work is a fairly active process. It relies heavily on visual cues, opening, and closing while firing, fast action and all sorts of movement. It's a lot of fun and the Studio Pro 14 only adds to the enjoyment. It doesn't hinder, compromise or get in the way. It just works well.

The Evenheat Studio Pro 14 glass kiln also works very well in the more traditional firing styles such as metal clays, low fire ceramics, enamels, and china painting. While not as active as glass, these types of firings do require a kiln that's properly designed and built for use. Since the Studio Pro 14 is an Evenheat design, you know you're getting that as well. The Studio Pro 14 will fire any ware up to 1650° F (900° C).

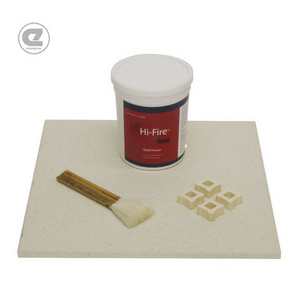

The Evenheat Studio Pro 14 Glass Kiln Furniture Kit includes one (1) 13” square shelf, four (4) 1” posts, a 24oz. bottle of kin wash and a haik brush.

Product Specifications

Model:	Evenheat Studio Pro 14
Inside Dim:	14.5" (width) x 14.5" (length) x 6.5" (depth)
Outside Dim:	25.5" (width) x 27" (depth) x 31.5" (height including stand)
Shelf Size:	13" Square Shelf - NOT INCLUDED
Max Temp:	1650° F
Voltage:	120 volts
Amperage:	15 amps (12AWG wire / 20A breaker required)
Watts:	1800 watts

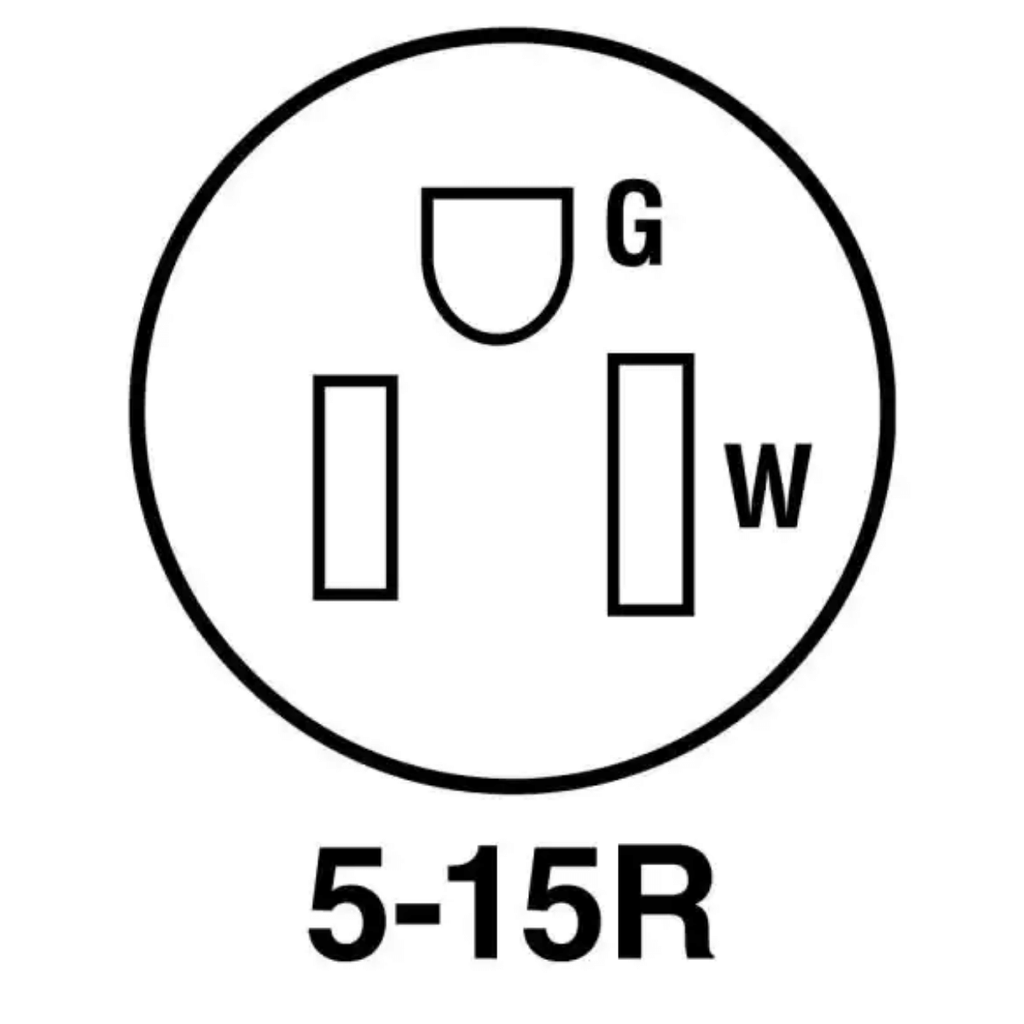

Receptacle:	5-15R
Ship Wt:	120# (freight)

What's Included

FREE SHIPPING in the contiguous US!
Icon Touchscreen Controller
Front and Top Access
Wonderful Handles
Wall-Free Design
Multi-Position Lid Vent
Engineered Element Path
Corner Mounting Technique
Bench Top Operation
Floor Stand Included
Power Cord Exits to Rear
Properly Sized 16" Stand
Solid-State Relays Standard - NEW!
1-Year Limited Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

Key Information

Front Access

The defining feature of the Studio Pro design is its front access. Simply lift the chamber to expose the entire floor. It's wall-free and wide open. Front access is perfect for glass placement: simply build directly on
your shelf and close the chamber. Front access is also great when using tools that require a horizontal approach such as raking, roll ups and manipulation techniques.

Top Access

The Studio Pro 14 features top access as part of the dual access design. Top access is excellent for the loading of shelves and forms as it allows for easy and precise placement. Top access is also preferred for many vertical-approach manipulation techniques such as embossing.

Full Firebrick Design

The Studio Pro 14 is constructed completely of firebrick including the lid. Firebrick is desired in a glass kiln as it stores heat in the beginning of the firing which acts to smooth out temperature swings. It then
releases heat slowly at the completion of the firing resulting in very calm annealing, especially over an annealing range. It's just beautiful. As with any glass kiln, you want a portion of firebrick in the mix.

Swing View Equipped

Studio Pro 14 temperature controls are fitted to our Swing View Adjustable Enclosure. The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's that simple.

The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.

Relay Access Port

The Studio Pro 14 incorporates our Relay Access Port for simple, no-panel-off relay replacement. Simply remove the access plate to gain access to the mechanical relay. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a screwdriver!

It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Bench-Top Operation

The Studio Pro 14 is designed to be placed directly on your counter or bench-top or within the included floor stand (see below), the choice is yours. Bench-top operation positions the kiln at waist level for very comfortable front access use.

Please note that counters and bench tops must be constructed of non-combustible material and be capable of supporting the load of the kiln.

Curved Element Routes

Heating element routes in the Studio Pro 14 lid are all curves. There's not a straight line to be found. These curved routes promote additional element retention.

120V Standard Plug

The Studio Pro 14 operates from 120V and is equipped with a standard North American 120V plug. Connection is very easy. The Studio Pro 14 is expected to be operated from a dedicated electrical circuit. Please consult with an electrician for supply hook-up.

We do make the Studio Pro 14 in global voltages as well, by request. Please see the Build Options section below for details.

Floor Stand included

The Studio Pro 14 is supplied with a 16" stand for optional floor placement if desired.

Options:

Multiple Control Options

The Studio Pro 14 is available in a variety of controls including the Icon, Icon+, Tap II and Rampmaster 3. At Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.

Quiet Drive Solid State Relay Option

Studio Pro 14 models are available with our Quiet Drive Solid State Relay option. Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. The Quiet Drive is arguably the best designed and best performing solid state system on the market.

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced. Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years. Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times. Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced. You will notice that solid-state relays are silent. The only sound you will hear is just the reassuring hum of the heating elements. So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself. We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

Looking to replace a worn-out or broken shelf? Enhance your firing experience with our custom shelf kits tailored for the Evenheat Studio Pro 14 kiln - Order 12" Square Full Shelf Kit now!

Warranty Benefits

Enjoy Peace of Mind

Simple, hassle-free product protection for the products you love.

Protection Plan Coverage & Benefits

Frequently Asked Questions:

All About Kilns

Plugs & Electricity

Maintenance

All About Kilns

What other features are important?

Kilns from every manufacturer are configured with features that allow for different types of functions. These features are available in fiber and brick models. Consider these options:

Top Load Kilns: Ideal for jewelry makers and projects involving powders and frit. Provides good visibility but may be challenging if you’re looking for a deeper kiln or have shorter arms.

Front Load Kilns: Suitable for tasks like enameling and hot manipulations. Offers control and less direct heat, but can be more expensive and require some lifting. This is also true for the weight on the shelf and placing it in front of you.

Clam Shell Kilns: Combines top and front loading, these types of kilns really delivers the best of both worlds; accessibility and free access to your shelf, in addition to ease of loading, and convenience, but may come at a higher cost.

Flip Doors (aka; Punty Doors, Bead Doors, Doggie Doors): Essential for preheating rods and quick bead placement. However, they may affect efficiency and temperature reach.

Windows (aka; quartz portholes): These are not the same as vent holes or peep holes. Optional quartz portholes for monitoring projects at peak temperatures, especially helpful for slumping, draping, or drop ring project. A window will also allow you to check the progress of a pot melt/aperture pour or screen melt.

What to consider when buying a kiln?

What kind of projects would you like to do?

The type, size, and kiln features you require are determined by the projects you choose. This covers things like firing techniques, loading systems, building components, voltage, controllers, and more. Your response may help to clarify your preferences, but you should also consider how well your preferences match with your current circumstances.

Where will you be locating the kiln?
The kind, dimension, and features of your kiln are influenced by where it is. Environment, power supply, safety, and space availability are all important considerations. Your desires might not always line up perfectly with the constraints of your surroundings, this is where we as artists must become creative problem solvers in an effort to overcome our environmental constraints.

We're here to support you. Please reach out if you need any additional advice!

Where should I place my kiln?

Here are some basic guidelines about locating your kiln:

Make sure you have adequate space... at least 12 - 18 inches of space between the kiln and the wall. (However, for operator comfort, allow room to walk around the kiln if maintenance is required.) It is recommended that the unit be placed on a stand on top of flame-resistant flooring like a cement floor or board.
Make sure the area is really clean - remove all flammable or combustible materials such as curtains, plastics, rags, paper, packing materials, etc. from the area surrounding the kiln.
Make sure the area is well ventilated – proper air exchange is necessary for you kiln to last a long time. Heat from the kiln and outside air can accumulate in restricted areas above both gas and electric kilns.
Make sure that the heat has somewhere to go, and is replaced by fresh cooler air. Set up a fan near the area, or open a window to ensure good air exchange. Check all local requirements or codes before installation.

IMPORTANT: Always read your owners manual and follow you kiln manufacturer's instructions.

Plugs & Electricity

What type of plug do I need?

Each kiln model described on our website will identify which of the following power supply receptacles is used with that model. They are identified by voltage and amperage as well as the NEMA designation. Those described as "direct wire" do not use a receptacle, instead, they are permanently wired.

Maintenance

Care and Maintenance

Proper kiln maintenance is essential for preventing downtime and costly repairs. Here's a checklist to help you keep your kiln in top shape:

Before Every Firing:

Inspect: Check inside your kiln for any unwanted visitors, moisture, or debris. Ensure your pet-friendly area is clean to prevent odorous surprises.
Vacuum: Turn off the power and use a vacuum with a HEPA filter to clean the interior, removing dust and residue that could affect your glass during firing.
Clean: Remove flammable materials from the area around the kiln.
Inspect Elements: Ensure coils/elements are in place, free of debris, and securely fastened. Check thermocouples and tighten lid screws as needed.
Check for Cracks: Examine your shelf for cracks and address them to prevent issues during firing.
Power Up: Turn the power back on and ensure the kiln registers the correct room temperature.

Monthly Maintenance:

Lid Check Up: Periodically tighten the lid band as the lid expands and contracts during firings. Most kiln lids are manufactured with a protective coating on the "hot side" or inside. This coating was applied to optimize the heat insulation of the lid, as well as to prevent brick dust from falling into the kiln. Address cosmetic lid cracks, and for structural issues, consult the manufacturer during the warranty period. If you are in the warranty period, DO NOT ATTEMPT TO REPAIR THIS without calling the manufacturer, as this could void your warranty.
Body Check Up: The only things inside of your kiln should be your elements, pins, brick, kiln furniture/posts and kiln washed shelves. Remove any non-essential materials such as (glaze, slip, clay, glass, silica sand) from the sidewalls to protect them and the heating elements. Be cautious when using kiln cement to repair cracks, and contact the manufacturer if needed during the warranty period. If you are in the warranty period, DO NOT ATTEMPT TO REPAIR THIS without calling the manufacturer, as this could void your warranty.
Inspect Elements: Look for signs of wear such as rust, bulging, or thinning/thickening areas. Elements wear out with usage and may need replacement. If you find it necessary to change out your elements, make sure you speak to the manufacturer to determine the appropriate element size for your kiln. Please refer to your operator’s manual for the discussion and photo's of "Element Replacement".
Electrical Check Up: Regularly examine the power cable, receptacle, and plug for discoloration, heat, corrosion, or loose connections. Address any electrical issues promptly, and consult the manufacturer if needed, especially during the warranty period. If you are in the warranty period, DO NOT ATTEMPT TO REPAIR THIS without calling the manufacturer, as this could void your warranty.

Regular maintenance will help your kiln perform efficiently and extend its lifespan.

What are Safety Precautions?

Kilns are as safe as any other electrical appliance when used under normal and proper operating conditions. All kiln safety precautions should always be observed.

Use common sense while installing and using your kiln.
Do not install your kiln closer than 12" from any surface, or closer than 18” from a combustible surface. Remove all potentially combustible materials from the kiln area.
Make sure all electrical specifications are followed. Use correct voltage, wire size and circuit breaker. Make sure all connections are tight. Avoid using aluminum wire. Always use the proper grounded receptacle. A qualified electrician or service person should be used for all electrical service or repairs.
Install in covered, walled in, well-ventilated area. Fumes from the ware should be vented to the outside.
Avoid moisture. Do not allow your kiln to get wet. Never use your kiln outside!
Always keep children and unsupervised personnel away. Surface will get hot and a burn could result.
Fire glass only to the manufacturers recommended firing temperature. Improper fire temperatures could result in damage to your kiln. Do not operate glass kilns over the maximum temperature rating.
Replace any worn or defective parts with ONLY genuine replacement parts.
Unplug kiln when not in use and if there is an electrical storm.
Unplug the kiln before servicing or vacuuming.
Do not drop or slam the lid shut.
Let the kiln cool to room temperature before opening the lid.
