Description
Specifications:

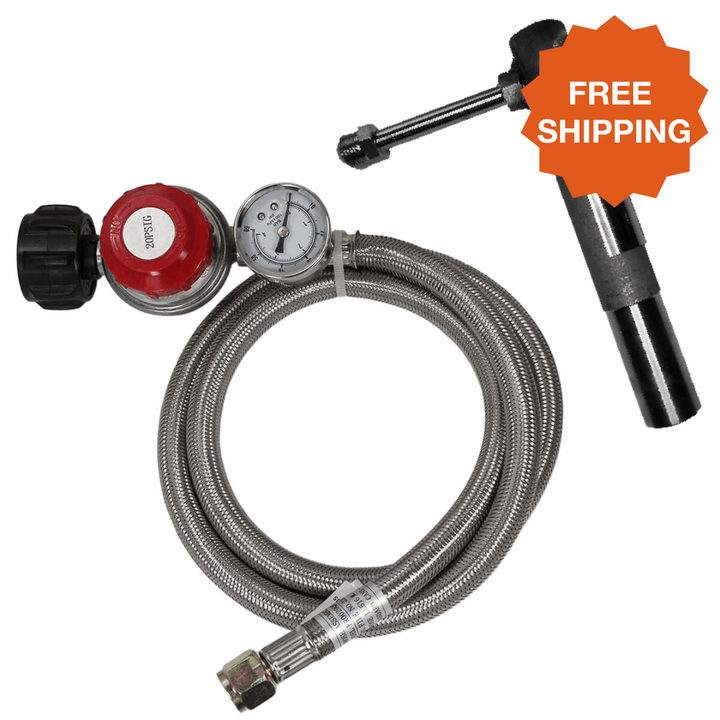

- FREE SHIPPING in the contiguous US!
- Designed for 3-4″/5-8″ diameter chamber forges (two brick, 8″ round tank)
- Dimensions: 9 x 6 x 3 in

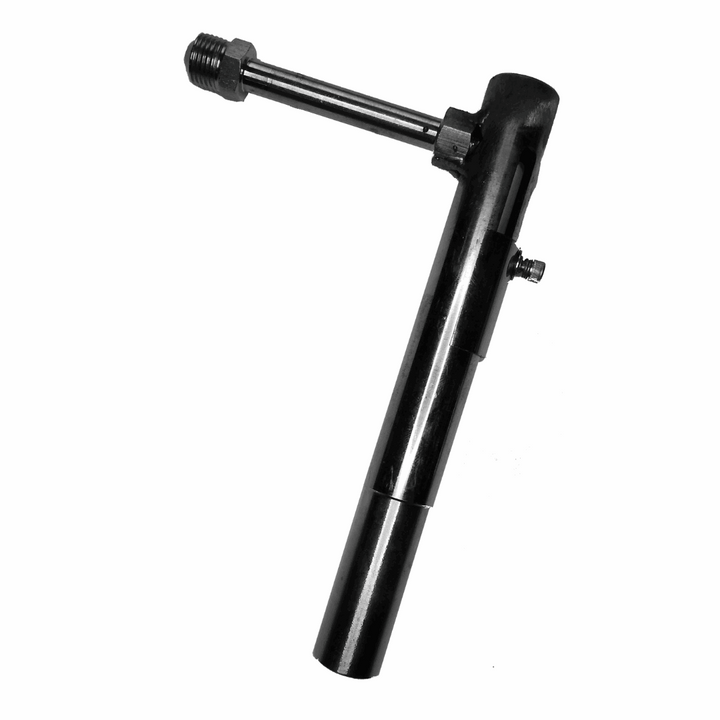

- 30k burner produces 38k BTU @ 20 PSI
- 6″ burner tube length
- 0.840″ outside diameter

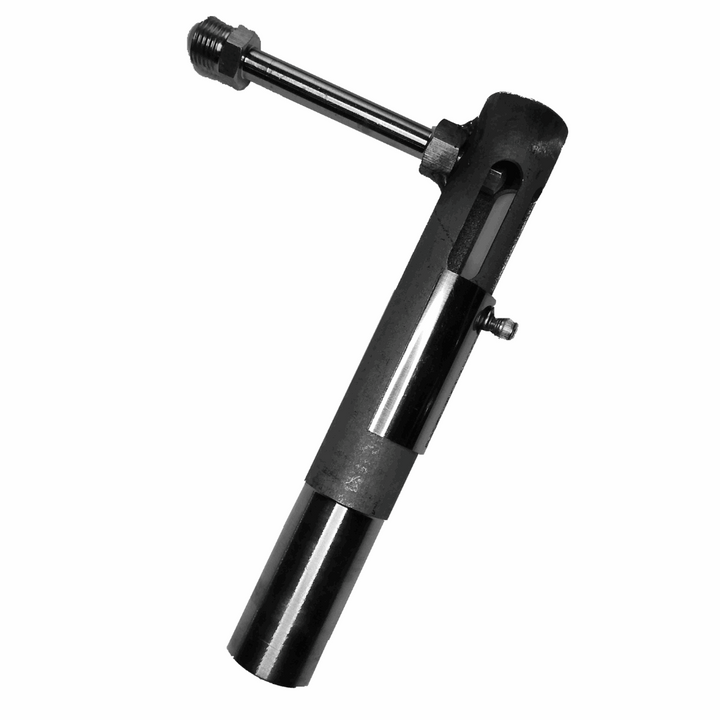

- 100k burner produces 105k BTU @ 20 PSI
- 6″ burner tube length
- 1.050″ outside diameter
- Weight 2 lbs.
- 1 Year Limited Warranty (Refer to Manufacturer's Warranty

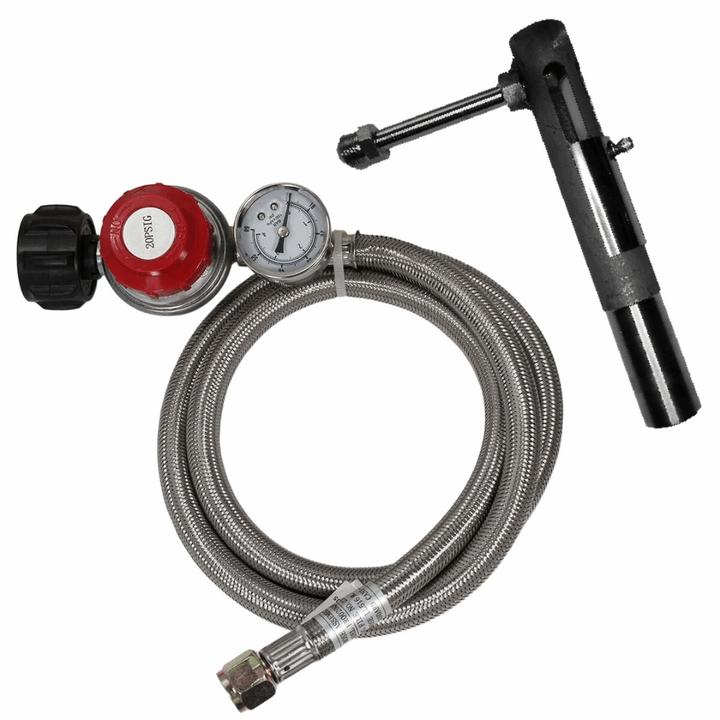

Stainless steel and brass construction
All fittings are custom made, steel 3/8″ flare 45° fitting
Pressure gauge is rated to 40 PSI, regulator is rated for 20 PSI
This burner will not function while clamped in a vise. A forge chamber with back-pressure is required for proper function.
Make sure to clean out any spiderwebs inside the burner tube. Seriously, spiders love to build nests inside these!
Warranty: Materials and Construction, 1 Year. Not warranted against burn out due to improper mounting, lack of forge lining maintenance or flash back (burning in mixing tube due to improper operating parameters or installation).
Fitting must be tightened with a wrench to 17-19 Ft/Lbs of torque, or it will leak and possibly burn where you don’t want it to!
Atlas Knife and Tool do not provide a flare with our burners. Burners are not a hand held torch, they go into a stationary device where a flare is not needed (the refractory lining creating the flare/flame holder).
