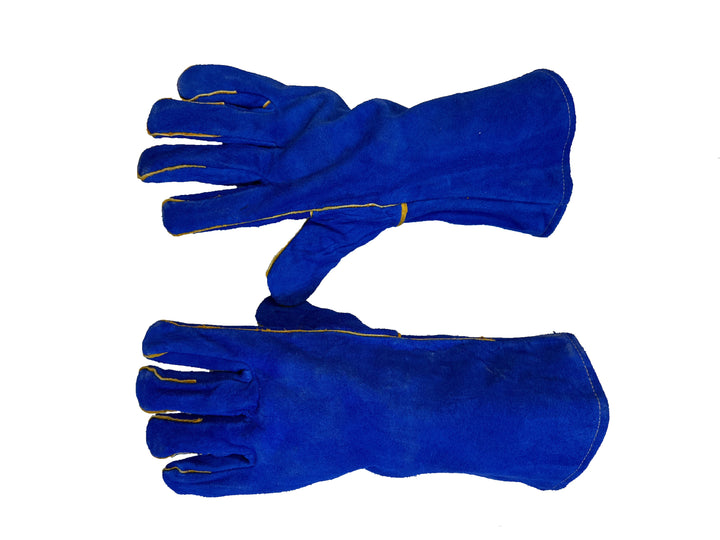

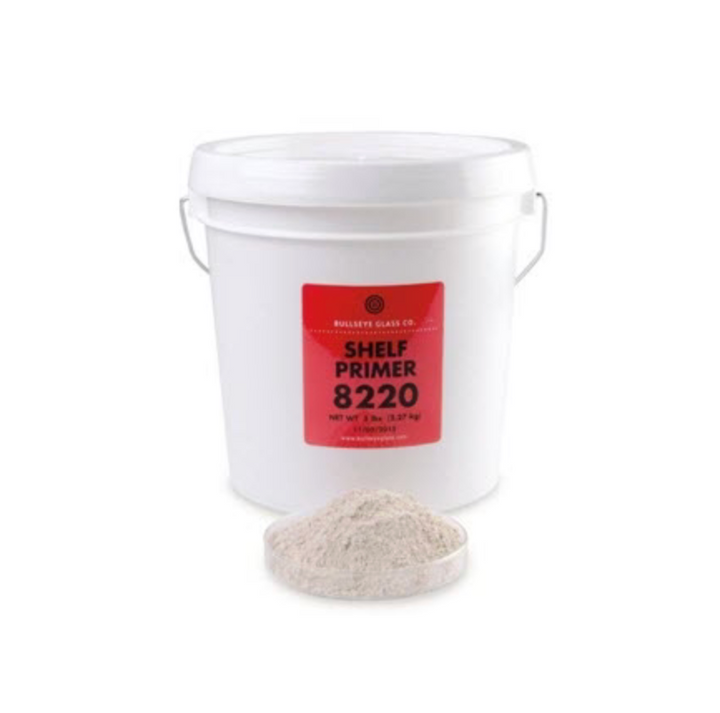

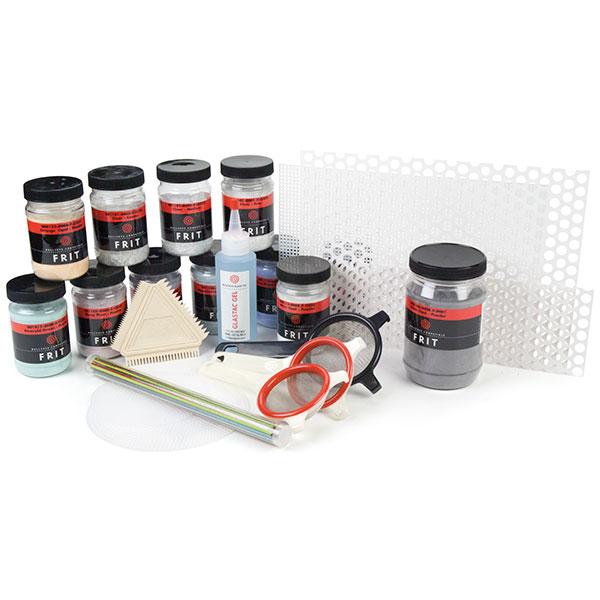

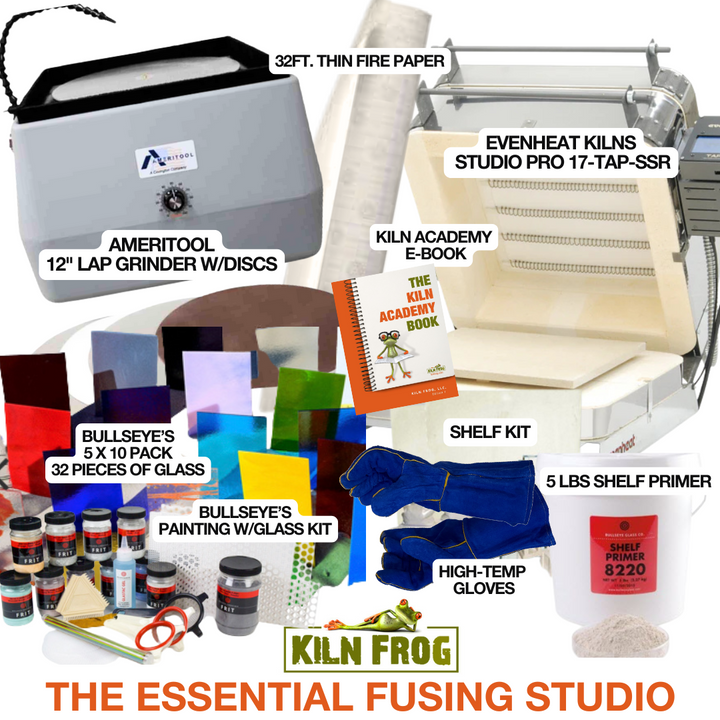

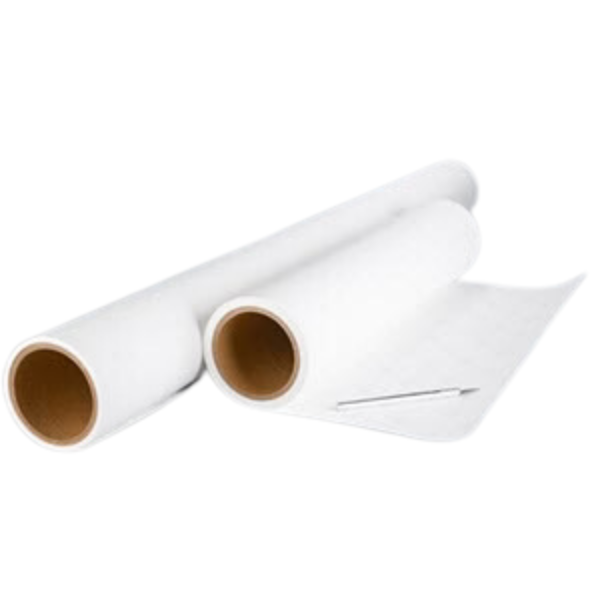

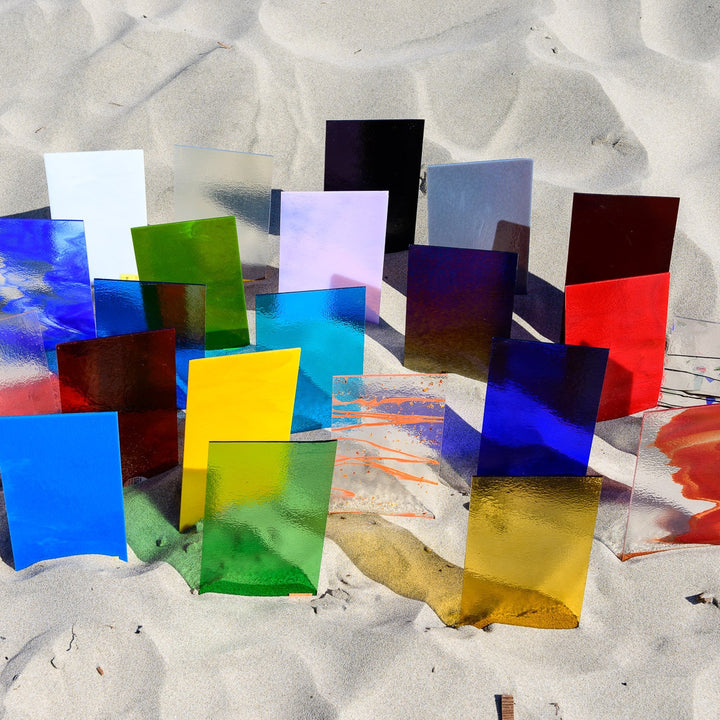

The Evenheat Platinum Bundle 2 is the deluxe choice for serious glass artists and makers. Featuring the Evenheat Studio Pro 17 Kiln with an advanced TAP Touchscreen Controller and solid state relays for precise, quiet operation, and the Ameritool - 12" HD Lap Grinder Machine with Discs for flawless sanding and polishing of your art pieces. Essential Bullseye products like Kiln Wash and Kiln Paper, the BE 5x10 Pack, the Painting with Glass Pack, High-Temp Gloves for safety, and the comprehensive Kiln Academy E-Book complete this high-performance package. Kiln Frog Glass Bundles are the most convenient way to stock up your studio with the finest tools for precision and excellence.
Model: | Evenheat Studio Pro 17 |
SKU: |
00344.188 |
Inside Dim: | 17' (width) x 17" (length) x 6.5" (depth) |
Outside dim: | 29.5" (length) x 28" (width) x 32" (height including stand) |
Shelf Size: | 16" Square Shelf Kit - Included |
Max Temp: | 1650° F |
Voltage: | 120 volts |
Amperage: | 18 amps (12AWG wire / 20A breaker required) |
Watts: | 2160 watts |
Receptacle: | 5-20R |
Ship Wt: | 130# (freight) |
Model: |
Ameritool - 12" HD Lap Grinder Machine |
Motor: | Full 1/2 HP motor |
Speed: |
Variable Speed 0-2000 RPM |
Size: | 23 in. x 23 in. x 15 in. |
Shipping weight: | 45 lbs. including accessories |
*** This kiln is 120v but, requires a 5-20R DEDICATED CIRCUIT. Learn more about dedicated circuits HERE! ***

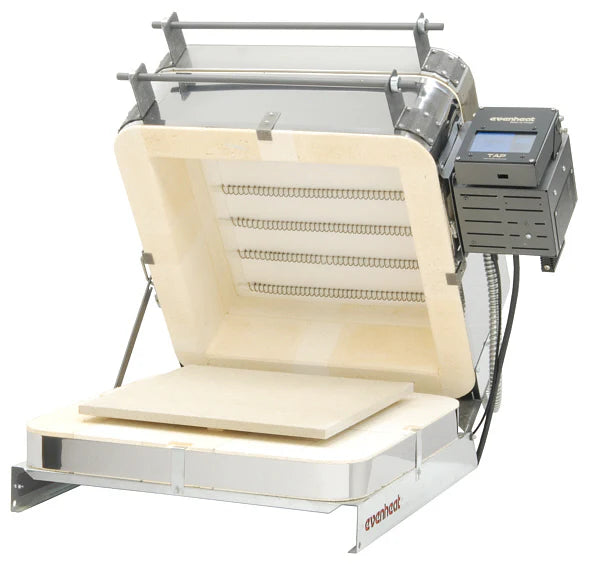

Front Access - The defining feature of the Studio Pro design is its front access. Simply lift the chamber to expose the entire floor. It's wall-free and wide open. Front access is perfect for glass placement: simply build directly on your shelf and close the chamber. Front access is also great when using tools that require a horizontal approach such as raking, roll ups and manipulation techniques.
Top Access - The Studio Pro 17 features top access as part of the dual access design. Top access is excellent for the loading of shelves and forms as it allows for easy and precise placement. Top access is also preferred for many vertical-approach manipulation techniques such as embossing.
Fiber & Firebrick Design - The Studio Pro 17 is constructed of both fiber and firebrick. Fiber is used in the lid to speed up the firing process to avoid devitrification and provide for a lighter weight lid. Firebrick is used in both the walls and floor and provides excellent heat-storage properties which helps smooth out temperature swings and is awesome for annealing. By its nature, firebrick cleans up the
temperature fluctuations that "all-fiber" kilns experience. You want a portion of firebrick in your glass kiln and the Studio Pro 17 delivers.
Swing View Equipped - Studio Pro 17 temperature controls are fitted to our Swing View Adjustable Enclosure. The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's that simple. The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.
It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.
Bench-Top Operation - The Studio Pro 17 is designed to be placed directly on your counter or bench-top or within the included floor stand (see below), the choice is yours. Bench-top operation positions the kiln at waist level for very comfortable front access use.
Please note that counters and bench tops must be constructed of non-combustible material and be capable of supporting the load of the kiln.
Elemented Fiber Lid - Evenheat's fiber lid construction offers a faster heat-up than traditional 120V firebrick designs, about 50% faster. This faster firing potential reduces or completely eliminates devitrification. The lid of the Studio Pro 17 is constructed of a special fiber material that provides excellent thermal properties along with light weight. This design allows the heating elements to be positioned on the surface for maximum heat transfer and firing efficiency. We also position these lid heating elements left to right to prevent them from sagging or bunching-up with repeated opening and closing. It's a small but important detail that guarantees performance and satisfaction over the life of the kiln.
Floor Stand included - The Studio Pro 17 is supplied with a 16" stand for optional floor placement if desired.
Power Interrupt Switch Equipped - The Studio Pro 17 is standard equipped with a power interrupt switch which removes electrical power from all heating elements if either the lid or chamber is opened. This is important for those who may access the kiln during firing such as glass manipulation and roll-ups.
TAP Touchscreen Controller - The TAP II with its large screen, well laid out format and incredible mobile App is Evenheat's most popular temperature controller. Firing schedule creation and use are simply simple. The science behind the screen delivers accurate and consistent results especially when matched with Quiet Drive Solid State relay system. The TAP II is fitted with low-error Special Limits thermocouples for extremely accurate temperature control as well as our non-metallic faceplates offering excellent Wi-Fi reception. For detailed information on the TAP II and mobile App visit SDS Industries at kilncontrol.com
Quiet Drive Solid State Relay - Studio Pro 17 models are available with our Quiet Drive Solid State Relay option. Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. The Quiet Drive is arguably the best designed and best performing solid state system on the market.

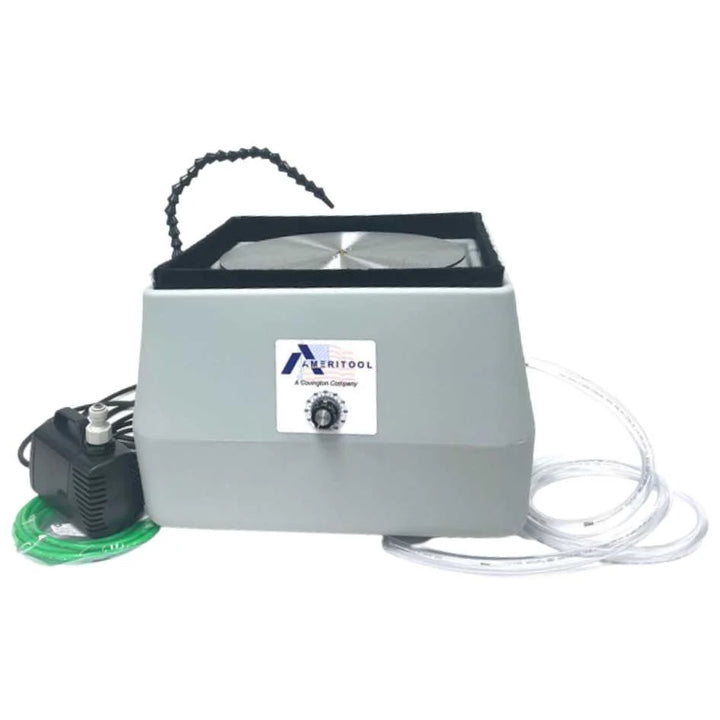

Ameritool - 12" HD Lap Grinder Machine
Solid hardened steel magnetic backing plate
Submersible pump and 10’ tubing
Pre-attached with a 6’ drain tube
Aluminum manifold with push to connect connection
Loc-Line adjustable nozzle
Removable brass centering Pin

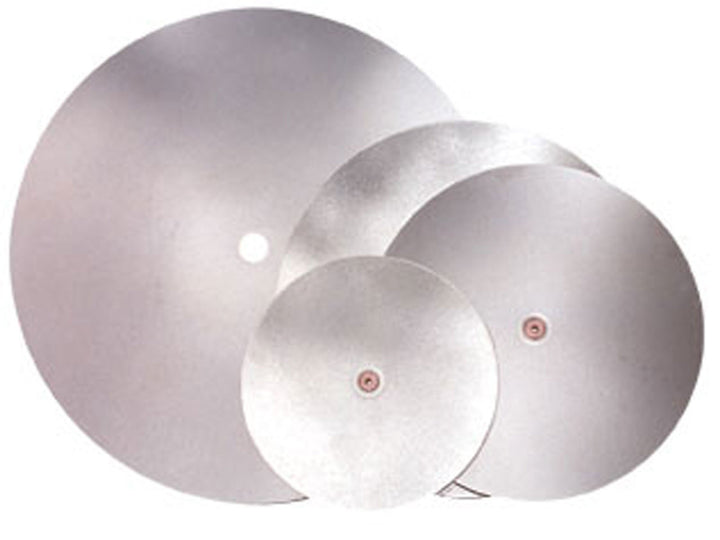

Nickel Bond Disc Kit
1 x 100 Grit Nickel Bond Disc
1 x 270 Grit Nickel Bond Disc
1 x 325 Resin Bonded Disc
1 x Synthetic Felt Polishing Disc
1 x 1lb of Cerium Oxide (Optical Grade)
